JZS141-ATPJF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110-9508)JZS141,143,145

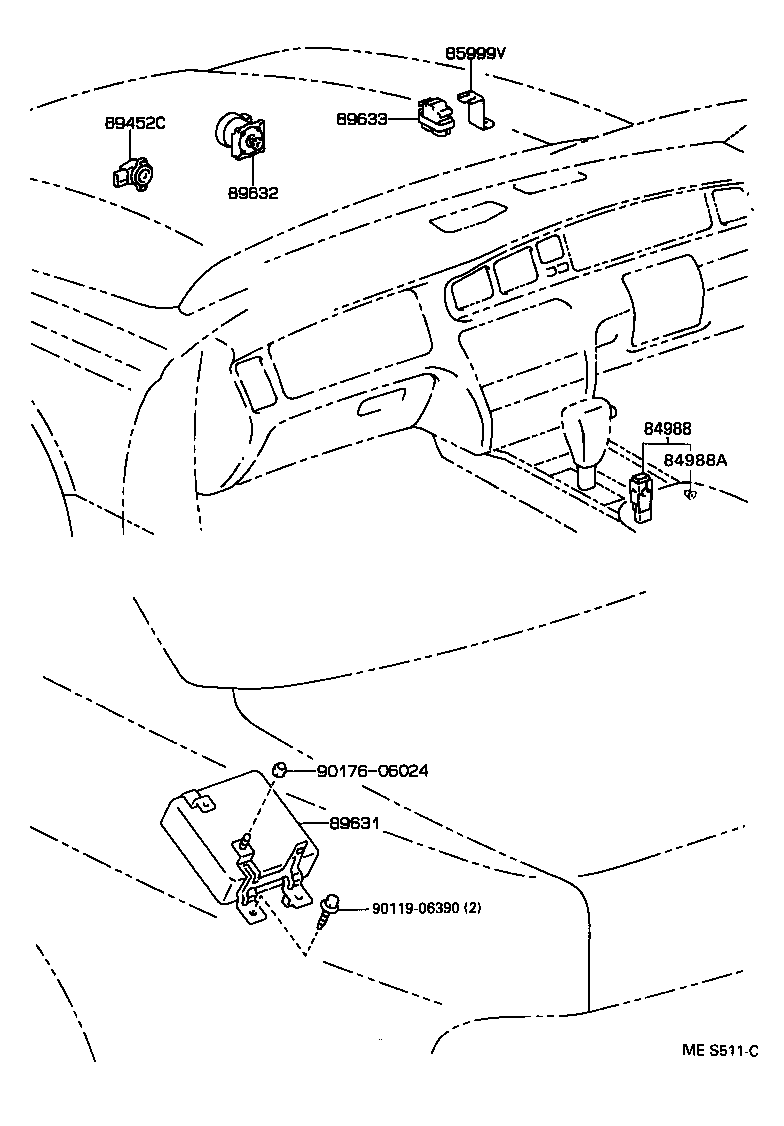

Click highlighted areas on diagram

diagram 84988 84988A 85999V 89452C 89631 89632 89633 9011906390 9017606024
Part # Description Qty Price
84988 - SWITCH, TRACTION CONTROL
84988-30030

JZS14#,LS141,UZS141,147

 1
84988A - BULB, TRACTION CONTROL SWITCH
84999-10640

JZS14#,LS141,UZS141,147

14V 0.63W,14V 0.63W,W/SOCKET & GREEN CAP

 1
85999V - BRACKET, RELAY
85999-30340

JZS141,143,145

 1
89452C - SENSOR, THROTTLE POSITION
89452-22090

JZS141

 1
89452-22090

JZS14#

 1
89631 - COMPUTER, TRACTION CONTROL
89631-30040

JZS141,143,145

 1
89632 - MOTOR, TRACTION THROTTLE VALVE
89632-22020

JZS141

 1
89633 - RELAY, TRACTION CONTROL
89633-30020

JZS141,143,145

 1
Common parts
90119-06390
90176-06024
