JZS141-ATPJF (1991)

Toyota Crown/Crown Majesta

Production Oct 1991 - Aug 1995
Engine 1JZGE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9110- )GS141,JZS141,143,145,LS141

Click highlighted areas on diagram

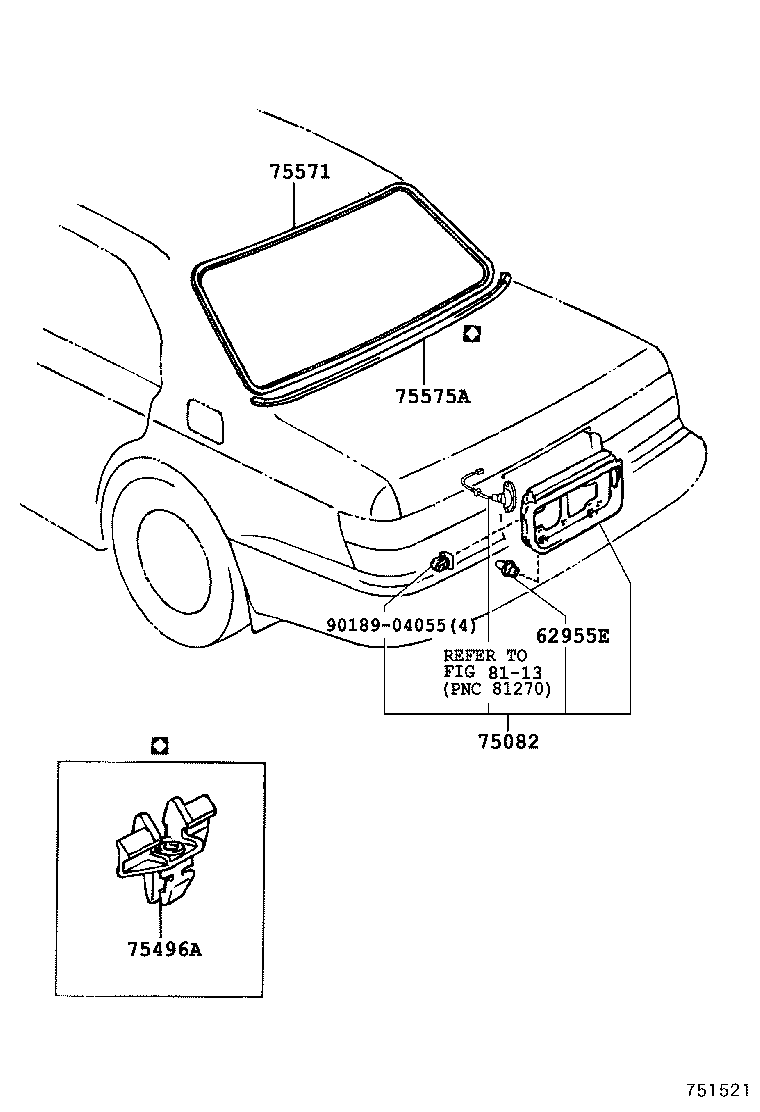

diagram 62955E 75082 75496A 75571 75575A 8113 9018904055
Part # Description Qty Price
62955E - RETAINER, LOWER BACK FINISH PANEL
62955-20040

GS141,JZS14#,LS141,UZS14#

 5
75082 - PANEL SUB-ASSY, LOWER BACK FINISH, CENTER
75082-30260

GS141,JZS141,143,145,LS141

 1
75496A - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.1
75496-30070

GS141,JZS141,143,145,LS141

 6
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75573-30291

JZS141,143,145,LS141

ｷﾖｳｶ ｶﾞﾗｽ ﾖｳ

 1
75573-30320

GS141,JZS141,143,145,LS141

ｷﾖｳｶ ｶﾞﾗｽ ﾖｳ

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-30220

GS141,JZS141,143,145,LS141

 1
Common parts
90189-04055
Linked diagrams
8113
