Toyota Crown/crown majesta JZS141 BRAKE MASTER CYLINDER

Part #	Description	Period	Qty
04493 - CYLINDER KIT, BRAKE MASTER
04493-24050	JZS14#	10/1992 - 08/1993	1
04493-24050	JZS14#..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
04493-24050	GS141,JZS14#..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
47201 - CYLINDER SUB-ASSY, BRAKE MASTER
47201-30390	JZS141,145	10/1991 - 10/1992	1
47201-30390	GS141,JZS141	10/1992 - 08/1995	1
47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER
47202-30130	GS141,JZS141,143,145,LS141	10/1991 - 08/1995	1
47210J - GASKET(FOR MASTER CYLINDER)
90430-06104	JZS141,UZS14#	10/1992 - 08/1993	2
90430-06104	GS141,JZS141,149,UZS14#..B,C,ROY,ROYT,SALEX,SSL	08/1993 - 08/1995	2
90430-06104	JZS141,145,149,UZS141..B,C,ROY,ROYG,SALEX,SSL	10/1991 - 10/1992	2
47210T - BOLT(FOR BRAKE MASTER CYLINDER)
90109-06077	JZS141,145	10/1991 - 10/1992	2
90109-06077	GS141,JZS141	10/1992 - 08/1995	2
47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER
47230-24010	JZS14#,LS141	10/1992 - 08/1993	1
47230-24010	JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
47230-24010	GS141,JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS141,JZS14#,LS141,UZS14#	10/1991 - 08/1995	2
47255 - GROMMET, MASTER CYLINDER RESERVOIR
47255-16010	GS141,JZS14#,LS141,UZS14#	10/1991 - 08/1995	2
47264 - CLEVIS, MASTER CYLINDER PUSH ROD
47264-50010	JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
47264-50010	JZS14#,LS141	10/1992 - 08/1993	1
47264-50010	GS141,JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
47265 - BOOT, MASTER CYLINDER
47265-22030	GS141,JZS14#..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
47265-22030	JZS14#..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
47265-22030	JZS14#	10/1992 - 08/1993	1
47275 - GASKET, BRAKE MASTER CYLINDER
47275-32010	GS141,JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
47275-32010	JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
47275-32010	JZS14#,LS141	10/1992 - 08/1993	1
47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR
47299-24010	JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	10/1991 - 10/1992	1
47299-24010	JZS14#,LS141	10/1992 - 08/1993	1
47299-24010	GS141,JZS14#,LS141..A,ROY,ROYG,ROYT,SALEX,SSL	08/1993 - 08/1995	1
Common parts
90149-40006
90179-08146
90179-10065
90461-08183
91611-A0614

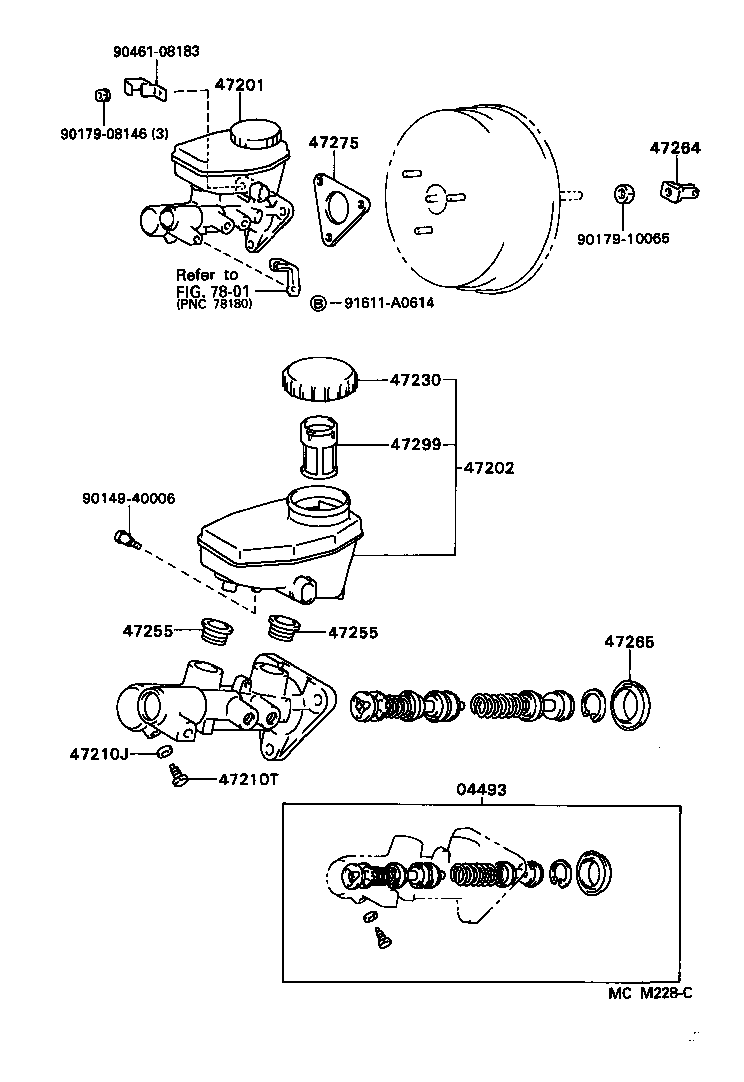

Linked diagrams
7801

JZS141-ATPJF (1991)

(9110- )JZS14#,LS141 ; (9308- )GS141
