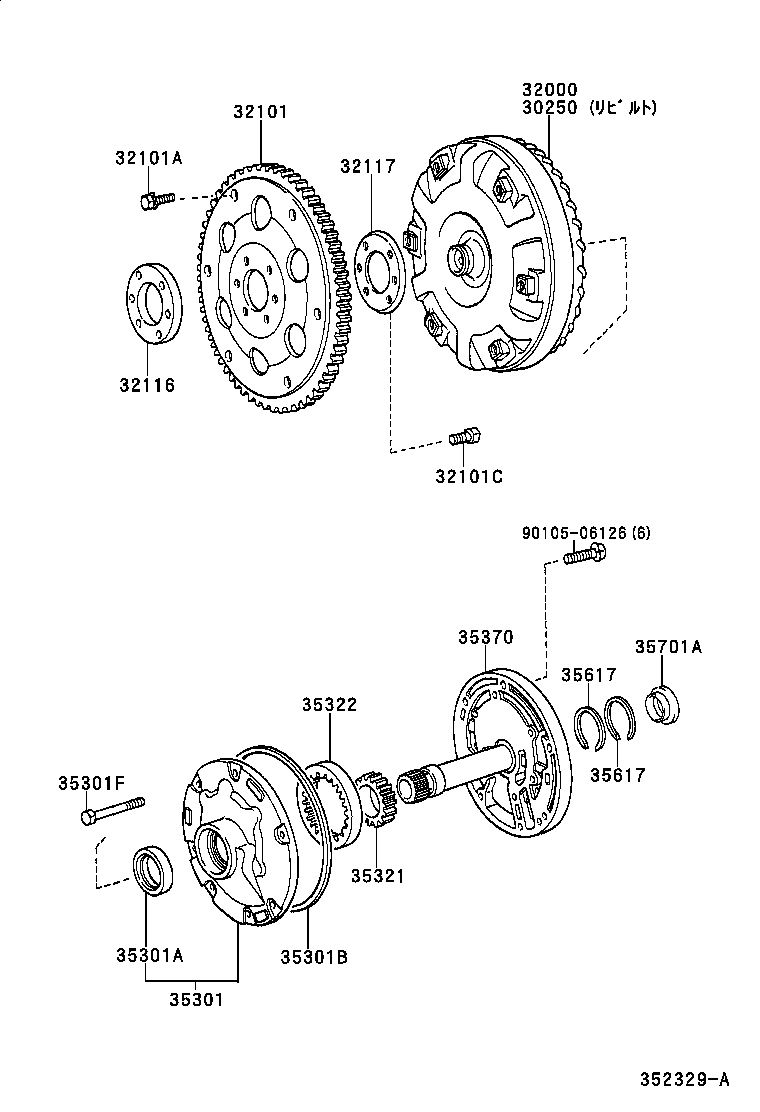

Toyota Crown/crown majesta GS171 TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

Part #	Description	Period	Qty
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-22220	GS171	08/2001 - 12/2003	1
30250-22220	GS171	04/2000 - 08/2001	1
32000 - CONVERTER ASSY, TORQUE
32000-22220	GS171	08/2001 - 11/2003	1
32000-22220	GS171	04/2000 - 08/2001	1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-24012	GS171	08/2001 - 12/2003	1
32101-24012	GS171	04/2000 - 08/2001	1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009	GS171,JZS171,173,175,179 *9−1.25PX12.8−8.8	09/1999 - 08/2001	5
90105-09006	GS171,JKS175,JZS17#,UZS17# *9−1.25PX11−8.5	08/2001 - 12/2999	5
90119-09010	GS171,JZS171,173,175,179 *9−1.25PX12.8−9	09/1999 - 08/2001	1
90105-09005	GS171,JKS175,JZS17#,UZS17# *9−1.25PX11−8	08/2001 - 12/2999	1
90119-09010	GS171,JKS175,JZS171,173,175,179 *9−1.25PX12.8−9	08/2001 - 11/2003	1
90119-09009	GS171,JKS175,JZS171,173,175,179 *9−1.25PX12.8−8.8	08/2001 - 11/2003	5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10046	GS171 *10−1.25PX23−15.5	04/2000 - 08/2001	6
90105-10046	GS171 *10−1.25PX23−15.5	08/2001 - 12/2003	6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14011	GS171	04/2000 - 08/2001	1
32116-14011	GS171	08/2001 - 12/2003	1
32117 - SPACER, DRIVE PLATE, REAR
32117-14011	GS171	04/2000 - 08/2001	1
32117-14011	GS171	08/2001 - 12/2003	1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-22021	GS171	04/2000 - 08/2001	1
35301-22021	GS171	08/2001 - 12/2003	1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38064	GS171	04/2000 - 08/2001	1
90311-38064	GS171	08/2001 - 12/2003	1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010	GS171	08/2001 - 12/2003	1
90301-99010	GS171	04/2000 - 08/2001	1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137	GS171	04/2000 - 08/2001	7
90105-08137	GS171	08/2001 - 12/2003	7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22050	GS171 厚さ=17.275−17.266	04/2000 - 08/2001	1
35321-22040	GS171 厚さ=17.265−17.255	04/2000 - 08/2001	1
35321-22060	GS171 厚さ=17.285−17.276	08/2001 - 12/2003	1
35321-22030	GS171 厚さ=17.254−17.245	08/2001 - 12/2003	1
35321-22030	GS171 厚さ=17.254−17.245	04/2000 - 08/2001	1
35321-22040	GS171 厚さ=17.265−17.255	08/2001 - 12/2003	1
35321-22060	GS171 厚さ=17.285−17.276	04/2000 - 08/2001	1
35321-22020	GS171 厚さ=17.244−17.235	04/2000 - 08/2001	1
35321-22020	GS171 厚さ=17.244−17.235	08/2001 - 12/2003	1
35321-22050	GS171 厚さ=17.275−17.266	08/2001 - 12/2003	1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22040	GS171 厚さ=17.265−17.255	04/2000 - 08/2001	1
35322-22060	GS171 厚さ=17.285−17.276	04/2000 - 08/2001	1
35322-22030	GS171 厚さ=17.254−17.245	04/2000 - 08/2001	1
35322-22020	GS171 厚さ=17.244−17.235	04/2000 - 08/2001	1
35322-22060	GS171 厚さ=17.285−17.276	08/2001 - 12/2003	1
35322-22040	GS171 厚さ=17.265−17.255	08/2001 - 12/2003	1
35322-22050	GS171 厚さ=17.275−17.266	08/2001 - 12/2003	1
35322-22050	GS171 厚さ=17.275−17.266	04/2000 - 08/2001	1
35322-22020	GS171 厚さ=17.244−17.235	08/2001 - 12/2003	1
35322-22030	GS171 厚さ=17.254−17.245	08/2001 - 12/2003	1
35370 - SHAFT ASSY, STATOR
35370-22060	GS171	04/2000 - 08/2001	1
35370-22060	GS171	08/2001 - 12/2003	1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010	GS171	04/2000 - 08/2001	2
35617-32010	GS171	08/2001 - 12/2003	2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010	GS171	04/2000 - 08/2001	2
35617-32010	GS171	08/2001 - 12/2003	2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003	GS171	04/2000 - 08/2001	1
90374-25003	GS171	08/2001 - 12/2003	1
Common parts
90105-06126

GS171-AEPSK (2000)

(0004-0312)GS171
