GS151H-ATPSK (1995)
Toyota Crown/Crown Majesta

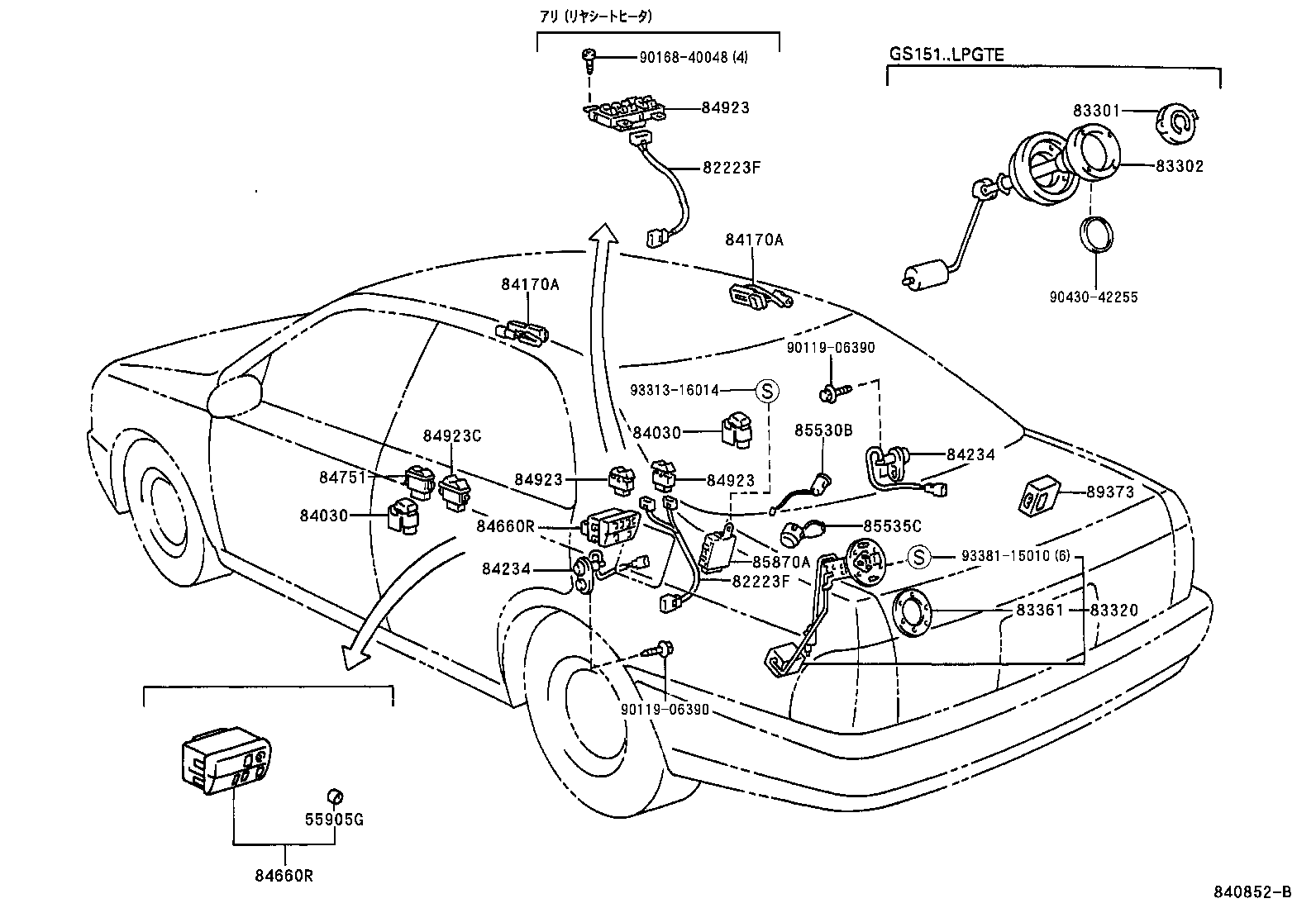

ILLUST NO. 7 OF 7(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ﾘﾔﾄﾞｱ, ﾘﾔｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80326 |
JZS155..SED..ROYG;GS151,JZS15#..(ROY,ROYEX,ROYT,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-30020 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30160 |
LS151..ROYEX;GS151,JZS151..ROYEX,ROYT,SPDLX D ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-30160 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30160 |
LS151..ROYEX;GS151,JZS151..ROYEX,ROYT,SPDLX D ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-30160 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 89373-30220 |
JZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89373-30340 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90168-40048 | ||||
| 90430-42255 | ||||
| 93313-16014 | ||||
| 93381-15010 | ||||
ILLUST NO. 7 OF 7(9508- )A,C,E,F
ﾘﾔﾄﾞｱ, ﾘﾔｼ-ﾄ & ﾗﾂｹﾞ-ｼﾞ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-80326 |
JZS155..SED..ROYG;GS151,JZS15#..(ROY,ROYEX,ROYT,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-30020 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-30190 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30160 |
LS151..ROYEX;GS151,JZS151..ROYEX,ROYT,SPDLX D ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-30160 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-30160 |
LS151..ROYEX;GS151,JZS151..ROYEX,ROYT,SPDLX D ﾊﾟﾂｹ-ｼﾞ & ｱﾘ(ﾘﾔ ﾏﾆﾕｱﾙ ｴｱ ｺﾝﾃﾞｲｼﾖﾅ) |
1 | ||
| 84660-30160 |
GS151..LPGTE..NOB;GS151,JZS151,LS151..ROYEX |
1 | ||
| 89373 - SENSOR, LAMP FAILURE INDICATOR | ||||
| 89373-30240 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) |
1 | ||
| 89373-30220 |
JZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 89373-30340 |
GS151,JZS151,153,155,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔ ｽﾎﾟｲﾗ) |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90168-40048 | ||||
| 93313-16014 | ||||
| 93381-15010 | ||||

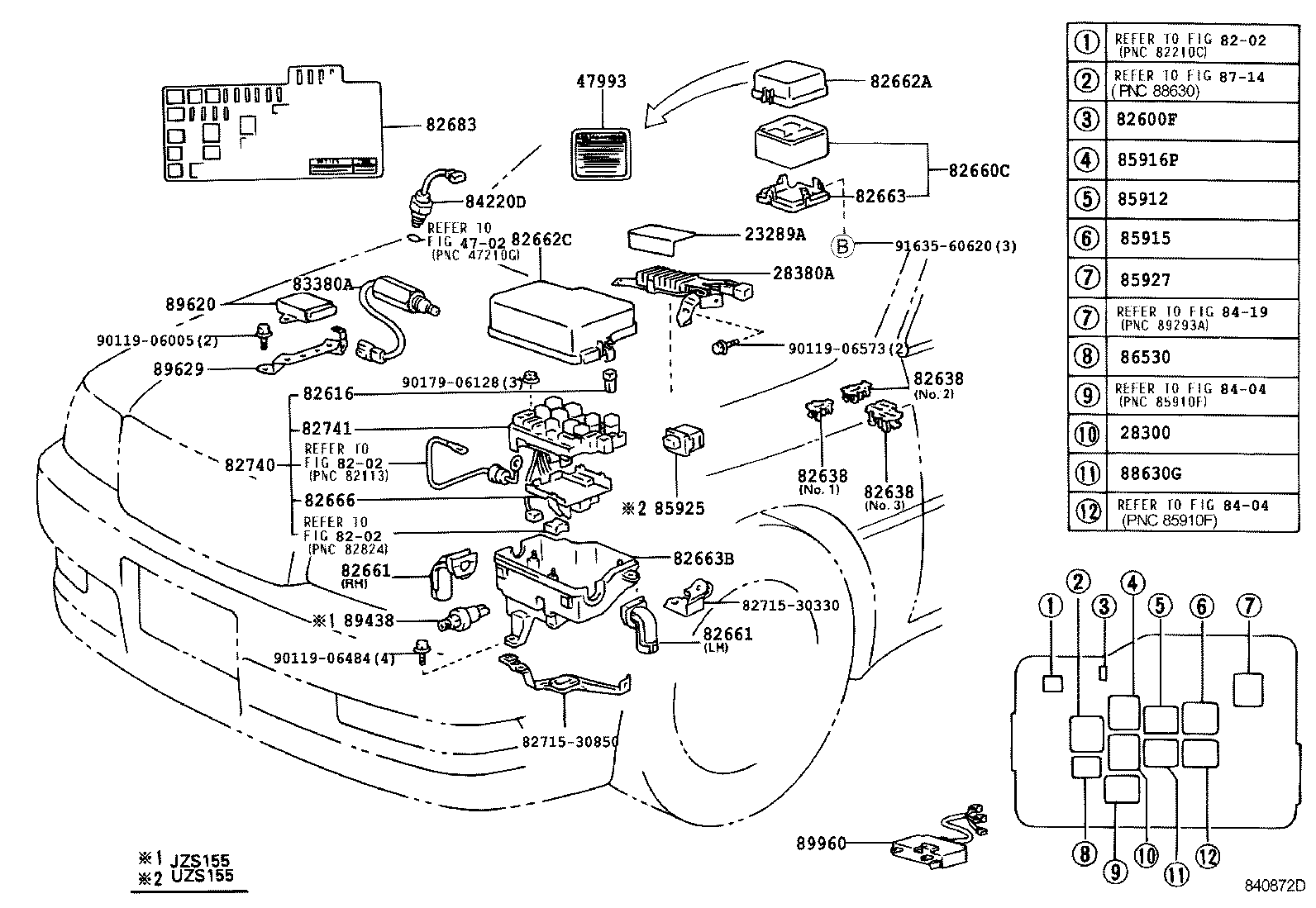

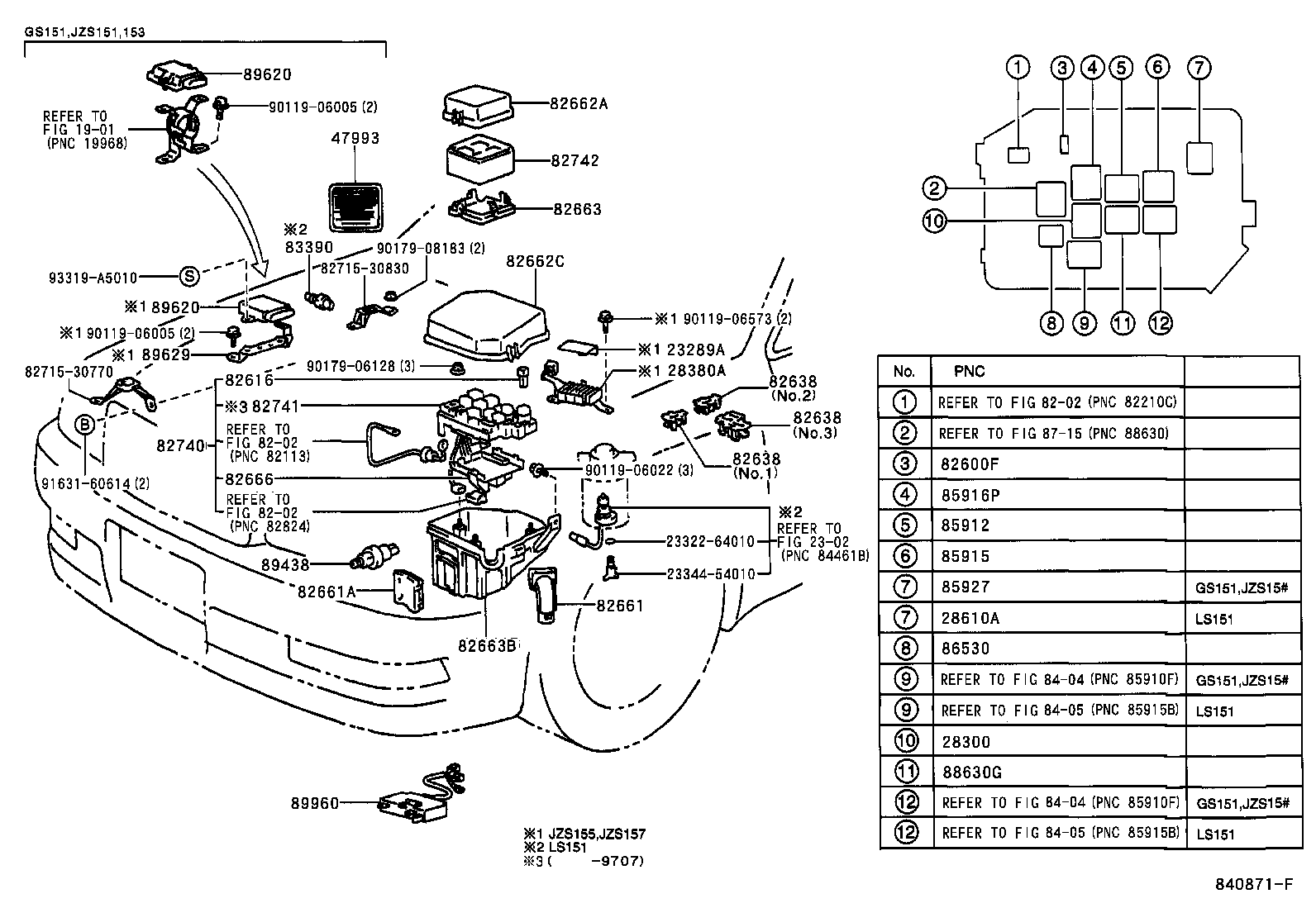

ILLUST NO. 2 OF 7(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1G#,1JZGE,2JZGE,2LTE,1UZFE..GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82661A - COVER, RELAY BLOCK, NO.2 | ||||
| 82661-30410 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-24032 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82662-30400 |
GS151,JZS15#,LS151 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30370 |
GS151,JZS15#..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30320 |
GS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30370 |
JZS151..SALEX;JZS151..HT..(ROY,ROYEX);GS151,JZS153,155,157..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30410 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30100 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30410 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30120 |
GS151..HTWC |
1 | ||
| 82740-30121 |
GS151..HTWC |
1 | ||
| 82740-30320 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 82740-30122 |
GS151..HTWC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82742 - BLOCK, ENGINE ROOM RELAY, NO.2 | ||||
| 82742-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82742-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
UZS151,155;GS151,JZS151,155,LS151..LPGTE,TDE,TWC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GS151..HTWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-22040 |
GS151 |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-22040 |
GS151 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30011 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| Common parts | ||||
| 23322-64010 | ||||
| 23344-54010 | ||||
| 82715-30770 | ||||
| 82715-30830 | ||||
| 90119-06005 | ||||
| 90119-06022 | ||||
| 90119-06573 | ||||
| 90179-06128 | ||||
| 90179-08183 | ||||
| 91631-60614 | ||||
| 93319-A5010 | ||||
| Linked diagrams | ||||
| 1901 | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||
| 8715 | ||||
ILLUST NO. 2 OF 7(9508- )A,C,E,F
ｴﾝｼﾞﾝﾙ-ﾑ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-46010 |
1G#,1JZGE,2JZGE,2LTE,1UZFE..GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82638 - RETAINER, RELAY BLOCK | ||||
| 82638-30010 |
GS151,JZS15#,LS151,UZS15# NO.1 & NO.2 |
2 | ||
| 82638-30020 |
GS151,JZS15#,LS151,UZS15# NO.3 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-30420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82662A - COVER, RELAY BLOCK, UPPER, NO.1 | ||||
| 82662-24032 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82662-30400 |
GS151,JZS15#,LS151 |
1 | ||
| 82662C - COVER, RELAY BLOCK, UPPER, NO.3 | ||||
| 82662-30370 |
GS151,JZS15#..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30320 |
GS151,JZS15#..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30370 |
JZS151..SALEX;JZS151..HT..(ROY,ROYEX);GS151,JZS153,155,157..(ROY,ROYEX,ROYG,SALEX,SPDLX)..(HTWC,TWC) |
1 | ||
| 82662-30410 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-30110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82663B - COVER, RELAY BLOCK, LOWER, NO.3 | ||||
| 82663-30100 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 82666 - HOLDER, CONNECTOR | ||||
| 82666-30410 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82740 - BLOCK ASSY, ENGINE ROOM RELAY | ||||
| 82740-30120 |
GS151..HTWC |
1 | ||
| 82740-30121 |
GS151..HTWC |
1 | ||
| 82740-30320 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 82740-30122 |
GS151..HTWC |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
UZS151,155;GS151,JZS151,155,LS151..LPGTE,TDE,TWC |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916-30060 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
GS151..HTWC |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-22040 |
GS151 |
1 | ||
| 89960 - COMPUTER ASSY, HEADLAMP LEVELING | ||||
| 89960-30011 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| Common parts | ||||
| 82715-30330 | ||||
| 82715-30850 | ||||
| 90119-06005 | ||||
| 90119-06484 | ||||
| 90119-06573 | ||||
| 90179-06128 | ||||
| 91635-60620 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 8202 | ||||
| 8404 | ||||
| 8419 | ||||
| 8714 | ||||

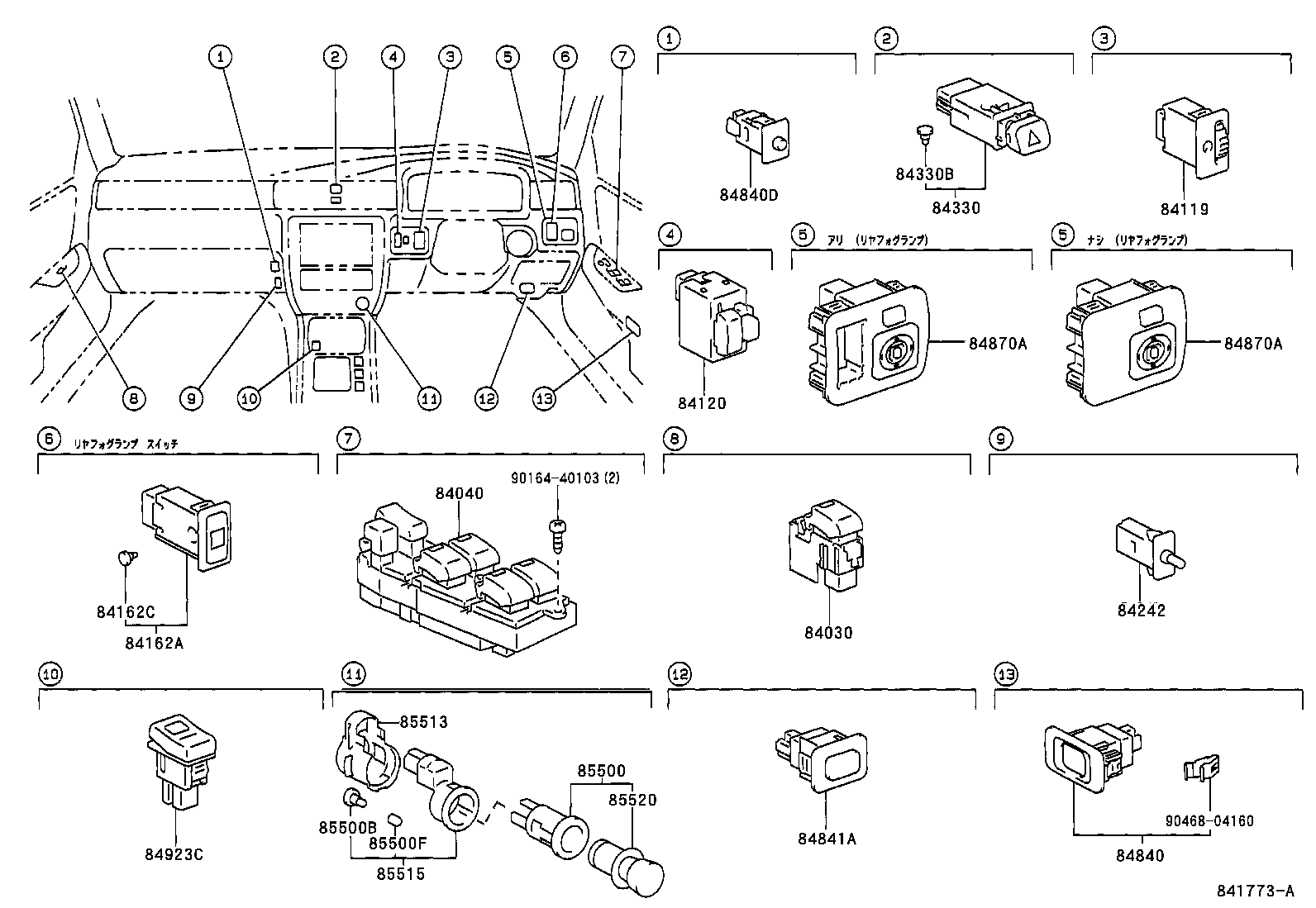

ILLUST NO. 3 OF 7(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ｲﾝﾊﾟﾈ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84040-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30130B2 |
GS151,JZS151,153..ROYEX ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84119-30130 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-30030 |
JZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20120 |
JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155 14V 0.7W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30270 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC 14V 0.84W |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140E1 |
GS151,JZS151,153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ANTELOPE,TRIM4# |
1 | ||
| 84840-30140B0 |
GS151,JZS151,153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.BLUE GRAY,TRIM1# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-30170 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040E1 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ANTELOPE,TRIM4# |
1 | ||
| 84841-30040B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30180B2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30190E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30180E2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
1 | ||
| 84870-30190B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210B2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30220E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30221B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30220B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E2 |
GS151..ROYEX ANTELOPE,TRIM4# |
1 | ||
| 84870-30221E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30180B2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30190E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30180E2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
1 | ||
| 84870-30190B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210B2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30220E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30221B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30220B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E2 |
GS151..ROYEX ANTELOPE,TRIM4# |
1 | ||
| 84870-30221E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GS151,JZS151,153,155,LS151,UZS15# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GS151,JZS151,153,155,LS151,UZS15# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90468-04160 | ||||
ILLUST NO. 4 OF 7(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ｶｳﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30100 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30100 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-30020 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
GS151,JZS151,153,155,LS151..E,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-22030 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 84550-22040 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-22110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 82715-22660 | ||||
| 91511-60614 | ||||
| 91635-60616 | ||||
| 93315-14012 | ||||
| 93383-15012 | ||||

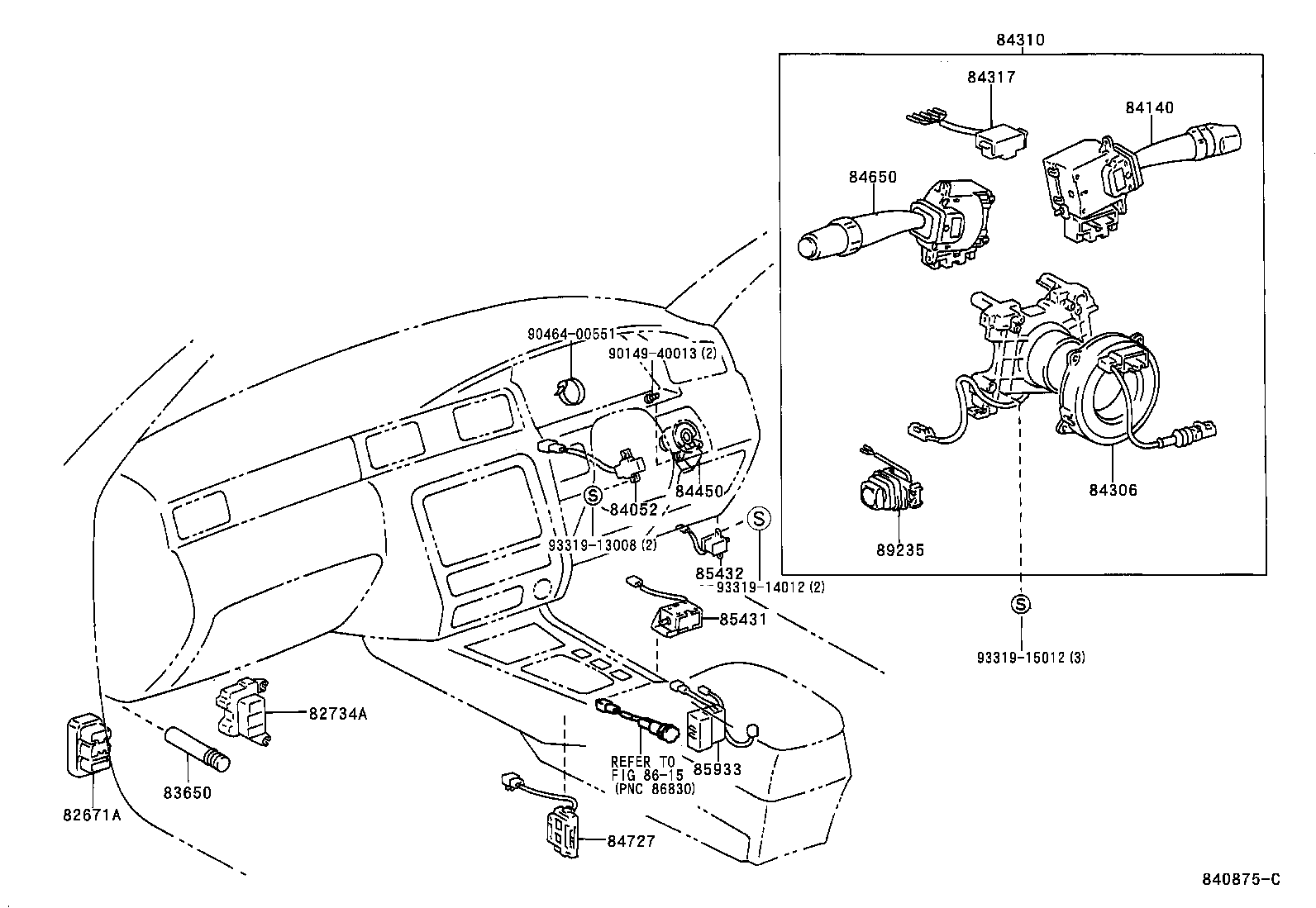

ILLUST NO. 5 OF 7(9508- )
ｶｳﾙ LH, ｺﾝﾋﾞﾈ-ｼﾖﾝ & ﾌﾛｱ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30330 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 83650 - FUSEE | ||||
| 90986-01005 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-22040 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 84052-22040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-30190 |
GS151,JZS151,153..ROYEX ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 84140-30190 |
GS151,JZS151,153..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
1 | ||
| 84140-30190 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 84140-30190 |
GS151,JZS15#,LS151,UZS15#..(A,C,E,F,ROY,ROYG,ROYT,SALEX)..(HTWC,TDE,TWC) ｱﾘ(ｺﾝﾗｲﾄ) |
1 | ||
| 84140-30200 |
GS151,JZS151,153,LS151..(ROYEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-30080 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-3A140 |
GS151,JZS151,155,LS151..(ROY,ROYT,SALEX)..(HTWC,TDE,TWC) ｱﾘ(ｺﾝﾗｲﾄ) |
1 | ||
| 84310-3A620 |
JZS151..ROYEX;GS151,LS151..(ROYEX,SALEX,SPDLX)..(HTWC,TDE) ｱﾘ(*80 & ｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-3A140 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
1 | ||
| 84310-3F060 |
GS151,JZS151..ROYEX ﾘﾐﾃﾂﾄﾞ *(L) |
1 | ||
| 84310-3F060 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 84310-3A620 |
GS151,JZS151,LS151..(ROYEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(*80 & ｶﾝｹﾂﾜｲﾊﾟ) |
1 | ||
| 84310-3F070 |
GS151,JZS151,LS151..(ROYEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 84310-3F060 |
GS151,JZS151..ROYEX ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A) |
1 | ||
| 84310-3F060 |
GS151,JZS151,LS151..(ROY,ROYT,SALEX)..(HTWC,TDE,TWC) |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-41010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 84450-41010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-30300 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84727 - SWITCH, SHIFT LOCK CONTROL | ||||
| 84727-30070 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 84727-30070 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85431 - SOLENOID, SHIFT LOCK | ||||
| 85431-30050 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 85431-30070 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85431-30050 |
GS151,JZS15#,LS151,UZS151,155..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| 85432 - SOLENOID, KEY INTER LOCK | ||||
| 85432-22030 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 85432-22030 |
GS151,JZS15#,LS151,UZS15#..ATM |
1 | ||
| 85933 - COMPUTER, SHIFT LOCK CONTROL | ||||
| 85933-30100 |
GS151,JZS15#,LS151,UZS151,157..ATM |
1 | ||
| 85933-30100 |
GS151,JZS15#,LS151,UZS151..ATM..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) |
1 | ||
| Common parts | ||||
| 90149-40013 | ||||
| 90464-00551 | ||||
| 93319-13008 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
| Linked diagrams | ||||
| 8615 | ||||

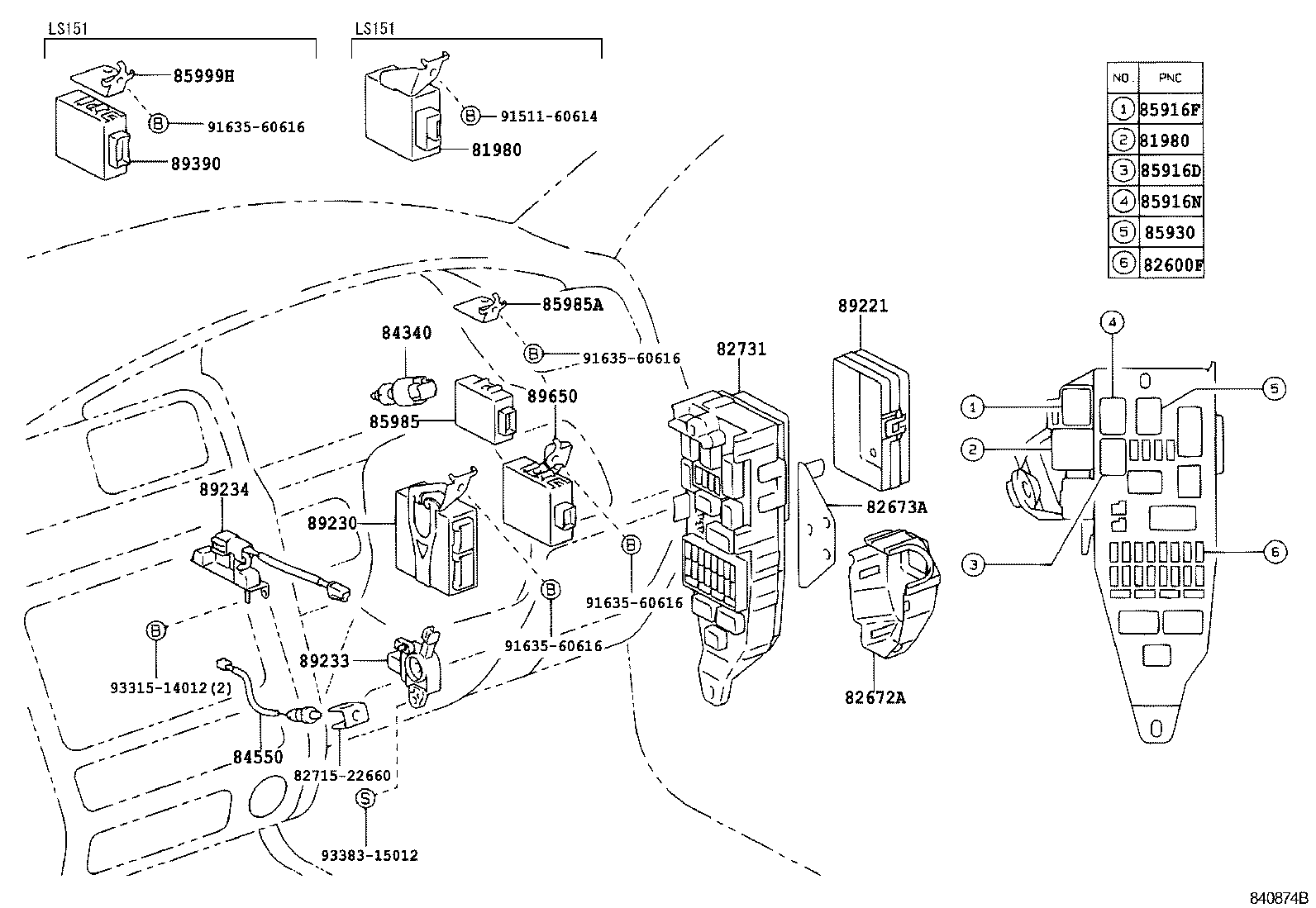

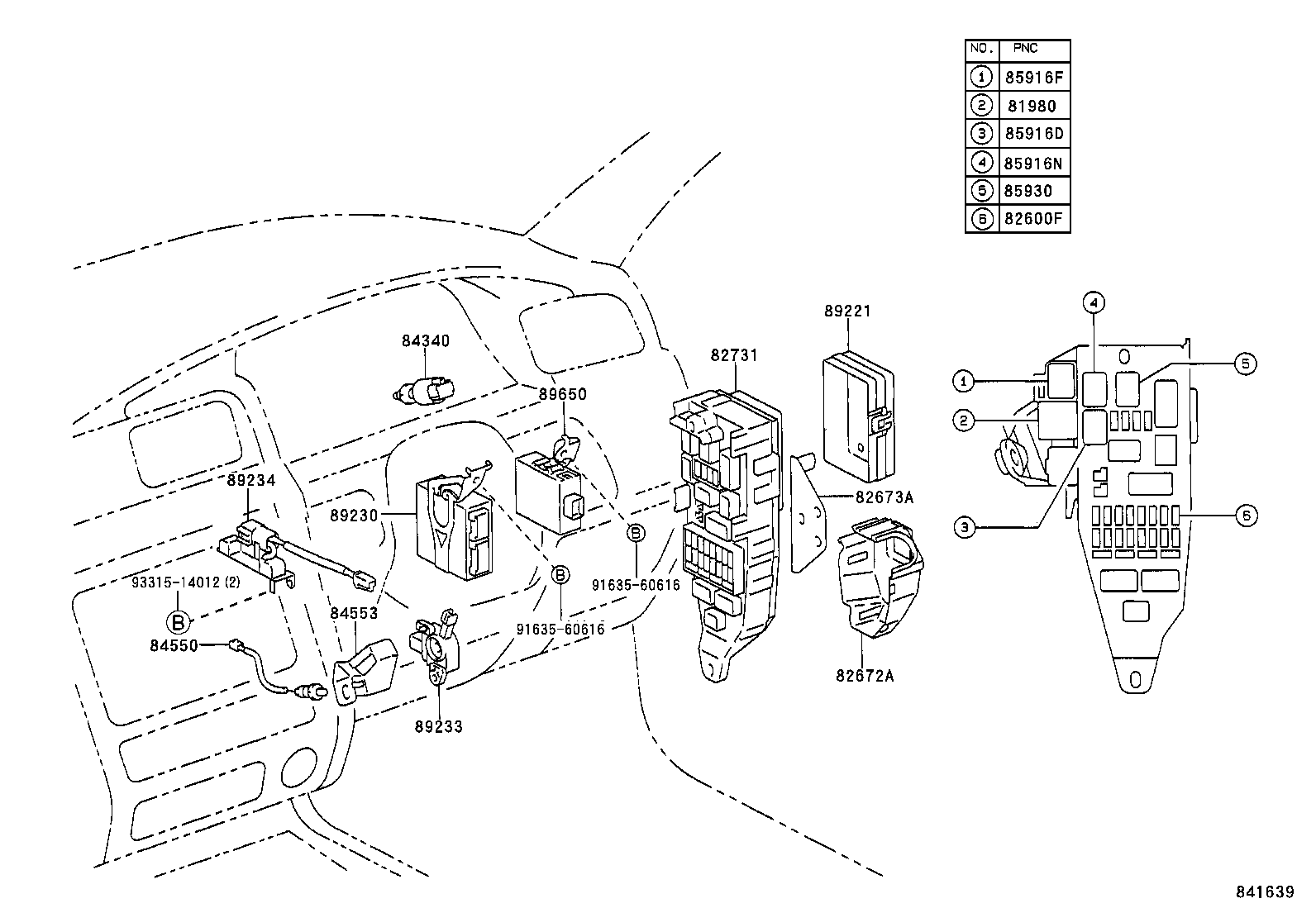

ILLUST NO. 4 OF 7(9508- )A,C,E,F
ｶｳﾙ RH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-30100 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
GS151,JZS15#,LS151,UZS15# 30A,緑 |
1 | ||
| 90982-09011 |
GS151,JZS15#,LS151,UZS15# 20A,ﾐﾆ ﾋｭｰｽﾞ,黄 |
1 | ||
| 90982-09009 |
GS151,JZS15#,LS151,UZS15# 10A,ﾐﾆ ﾋｭｰｽﾞ,赤 |
1 | ||
| 90982-09013 |
GS151,JZS15#,LS151,UZS15# 30A,ﾐﾆ ﾋｭｰｽﾞ,緑 |
1 | ||
| 90982-09008 |
GS151,JZS15#,LS151,UZS15# 7.5A,ﾐﾆ ﾋｭｰｽﾞ,茶 |
1 | ||
| 90982-09010 |
GS151,JZS15#,LS151,UZS15# 15A,ﾐﾆ ﾋｭｰｽﾞ,青 |
1 | ||
| 90982-09007 |
UZS151,157..4FC;GS151,JZS15#,LS151,UZS155 5A,ﾐﾆ ﾋｭｰｽﾞ,黄褐色 |
1 | ||
| 82672A - COVER, JUNCTION BLOCK | ||||
| 82672-30050 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82673A - BRACKET, JUNCTION BLOCK | ||||
| 82673-30020 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
GS151,JZS151,153,155,LS151..E,ROY,ROYEX,ROYT,SALEX,SPDLX |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-22030 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX) |
1 | ||
| 84550-22040 |
GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916F - RELAY, CORNERING LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221 - COMPUTER, MULTIPLEX NETWORK BODY | ||||
| 89221-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-22110 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 89221-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 91635-60616 | ||||
| 93315-14012 | ||||

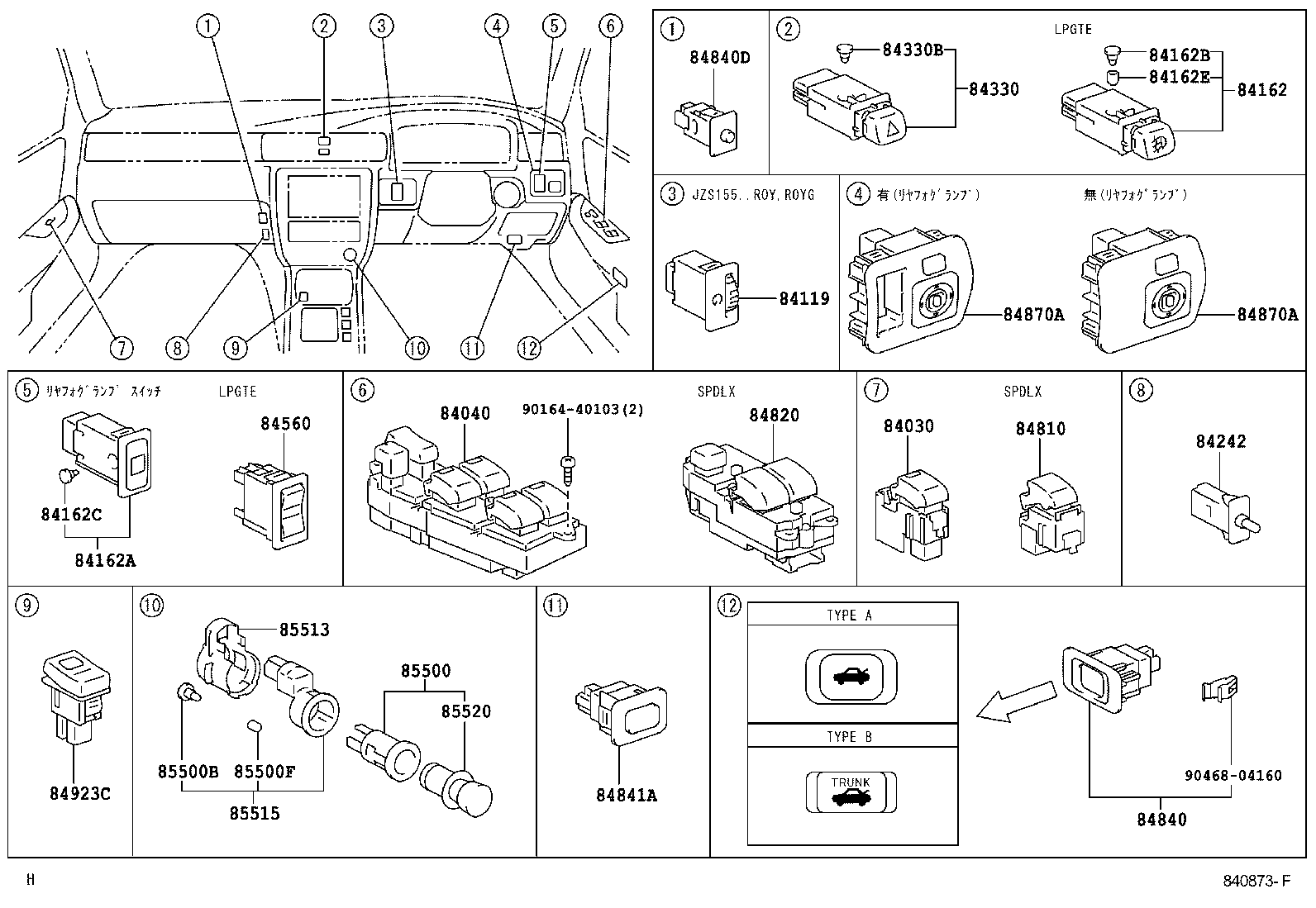

ILLUST NO. 3 OF 7(9508- )A,C,E,F
ｲﾝﾊﾟﾈ SW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84030 - SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84030-30010 |
GS151,JZS15#,LS151,UZS15# |
3 | ||
| 84040 - MASTER SWITCH ASSY,MULTIPLEX NETWORK | ||||
| 84040-30010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84040-30030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-30130B2 |
GS151,JZS151,153..ROYEX ｱﾆﾊﾞ-ｻﾘ- ﾊﾟﾂｹ-ｼﾞ *(A),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84119-30130 |
GS151..ROYEX TR ｴﾃﾞｲｼﾖﾝ *(T) |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-30030 |
JZS153..HT;JZS153..SALEX;GS151,JZS151,155,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20120 |
JZS153..SALEX;JZS153,UZS151,157..HT..4FC;GS151,JZS151,155,LS151,UZS155 14V 0.7W,ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ) |
1 | ||
| 84242 - SWITCH, GLOVE BOX LAMP | ||||
| 84242-20030 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-30270 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10320 |
GS151,JZS15#,LS151,UZS15#..HTWC,TDE,TWC 14V 0.84W |
1 | ||
| 84840 - SWITCH ASSY, LUGGAGE COMPARTMENT DOOR OPENING | ||||
| 84840-30140E1 |
GS151,JZS151,153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,ANTELOPE,TRIM4# |
1 | ||
| 84840-30140B0 |
GS151,JZS151,153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX TYPE A:ｲﾗｽﾄｻﾝｼﾖｳ,DK.BLUE GRAY,TRIM1# |
1 | ||
| 84840D - SWITCH ASSY, LUGGAGE DOOR OPENING | ||||
| 84840-30170 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 84841A - SWITCH, FUEL LID OPENER | ||||
| 84841-30040E1 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ANTELOPE,TRIM4# |
1 | ||
| 84841-30040B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30180B2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30190E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30180E2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
1 | ||
| 84870-30190B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210B2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30220E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30221B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30220B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E2 |
GS151..ROYEX ANTELOPE,TRIM4# |
1 | ||
| 84870-30221E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-30180B2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30190E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30180E2 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ANTELOPE,TRIM4# |
1 | ||
| 84870-30190B0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210B2 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30210E2 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾃﾞﾝﾄﾞｳｶｸﾉｳ ﾄﾞｱﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30220E0 |
GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TDE,TWC) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 84870-30221B0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30220B0 |
GS151,JZS15#,LS151..HT..(ROY,ROYEX,ROYG,ROYT) ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),DK.BLUE GRAY,TRIM1# |
1 | ||
| 84870-30180E2 |
GS151..ROYEX ANTELOPE,TRIM4# |
1 | ||
| 84870-30221E0 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ｱﾘ(ﾘﾔﾌｵｸﾞﾗﾝﾌﾟ & ﾌｴﾝﾀﾞﾘﾓｺﾝﾐﾗ-),ANTELOPE,TRIM4# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-17040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
GS151,JZS151,153,155,LS151,UZS15# 14V 1.4W |
1 | ||
| 85500F - CAP, CIGARETTE LIGHTER BULB | ||||
| 84998-10550 |
GS151,JZS151,153,155,LS151,UZS15# |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-28010 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-30040 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-20080 |
GS151,JZS15#,LS151,UZS15# |
1 | ||
| Common parts | ||||
| 90164-40103 | ||||
| 90468-04160 | ||||

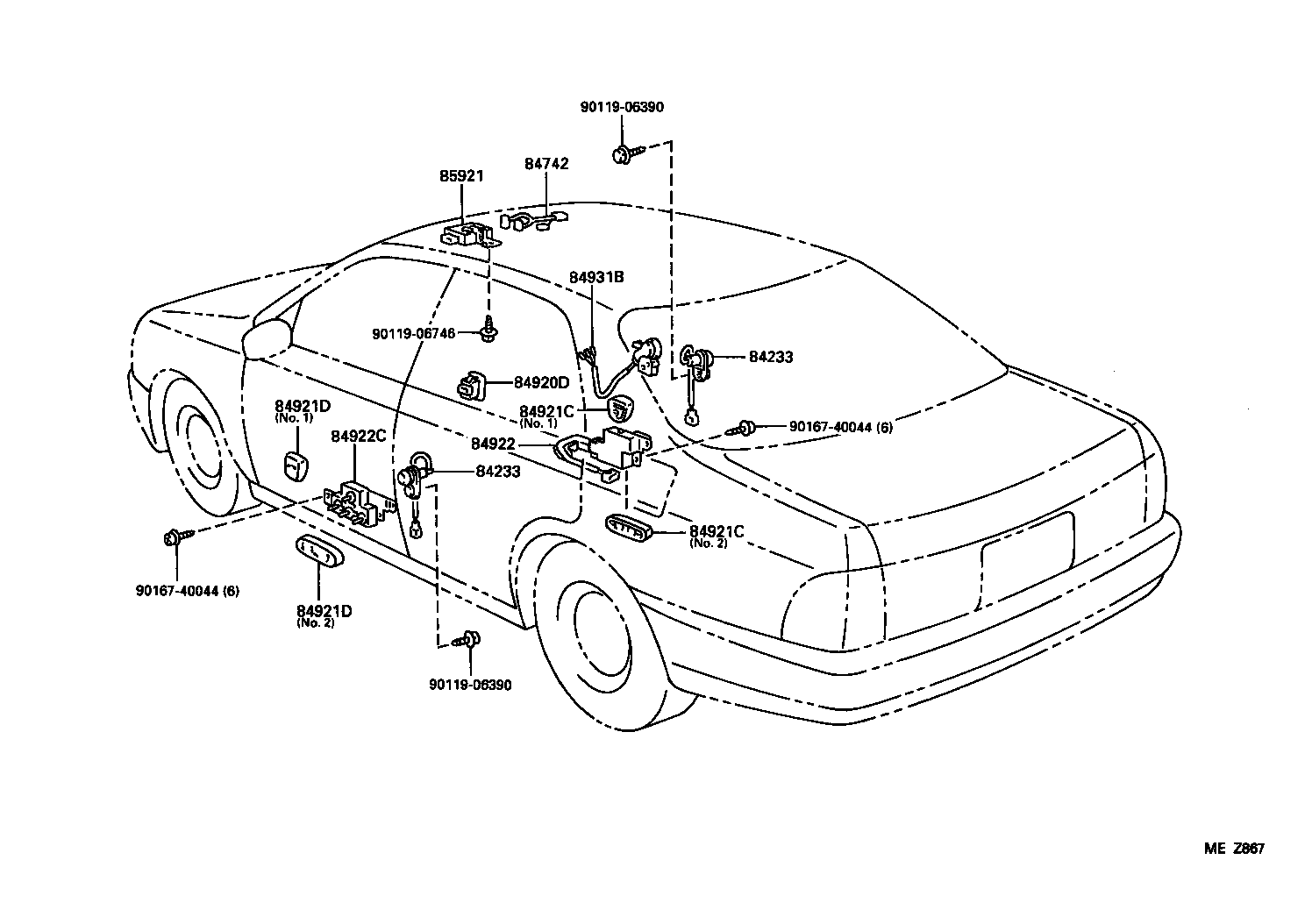

ILLUST NO. 6 OF 7(9508- )A,C,E,F
ﾙ-ﾌ, ﾌﾛﾝﾄﾄﾞｱ, ﾌﾛﾝﾄｼ-ﾄ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06746 | ||||
| 90159-40159 | ||||
| 90168-40043 | ||||

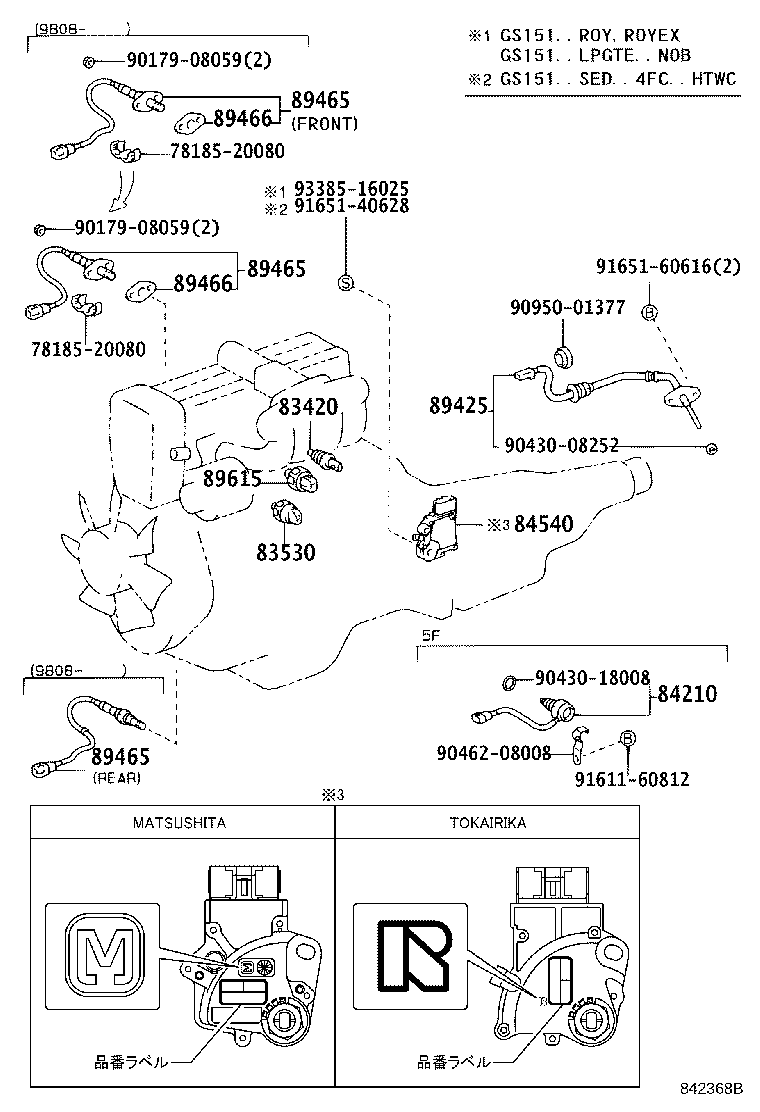

ILLUST NO. 1 OF 7(9508- )GS151
ｴﾝｼﾞﾝ & ﾄﾗﾝｽﾐﾂｼﾖﾝ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16040 |
GS151,JZS15#,LS151..HTWC,TDE,TWC |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-30090 |
GS151,JZS15#,UZS15# |
1 | ||
| 83530-30090 |
GS151,UZS15# |
1 | ||
| 83530-28020 |
GS151,JZS15#,UZS15# DENSO |
1 | ||
| 83530-60020 |
GS151,JZS15# YAZAKI |
1 | ||
| 84540 - SWITCH ASSY, NEUTRAL START | ||||
| 84540-30300 |
GS151..4FC MATSUSHITA |
1 | ||
| 84540-30290 |
GS151..4FC 東海理化 |
1 | ||
| 89425 - SENSOR, EXHAUST GAS TEMPERATURE | ||||
| 89425-39515 |
GS151,JZS151 |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29815 |
GS151..HTWC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29815 |
GS151..HTWC |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29815 |
GS151..HTWC |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GS151,JZS151,153 |
1 | ||
| 89466-20020 |
GS151 |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
GS151,JZS151,153 |
1 | ||
| 89466-20020 |
GS151 |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-20030 |
GS151 TOYOTA |
1 | ||
| 89615-33020 |
GS151 DENSO |
1 | ||
| 89615-33020 |
GS151..HTWC DENSO |
1 | ||
| 89615-20030 |
GS151..HTWC TOYOTA |
1 | ||
| Common parts | ||||
| 78185-20080 | ||||
| 90179-08059 | ||||
| 90430-08252 | ||||
| 90430-18008 | ||||
| 90462-08008 | ||||
| 90950-01377 | ||||
| 91611-60812 | ||||
| 91651-40628 | ||||
| 91651-60616 | ||||
| 93385-16025 | ||||
ILLUST NO. 6 OF 7(9508- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ﾙ-ﾌ, ﾌﾛﾝﾄﾄﾞｱ, ﾌﾛﾝﾄｼ-ﾄ & ﾌﾛｱ
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-30170 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-30060 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-06746 | ||||
| 90167-40044 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
