GS151H-ATPSK (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )GS151..4FC

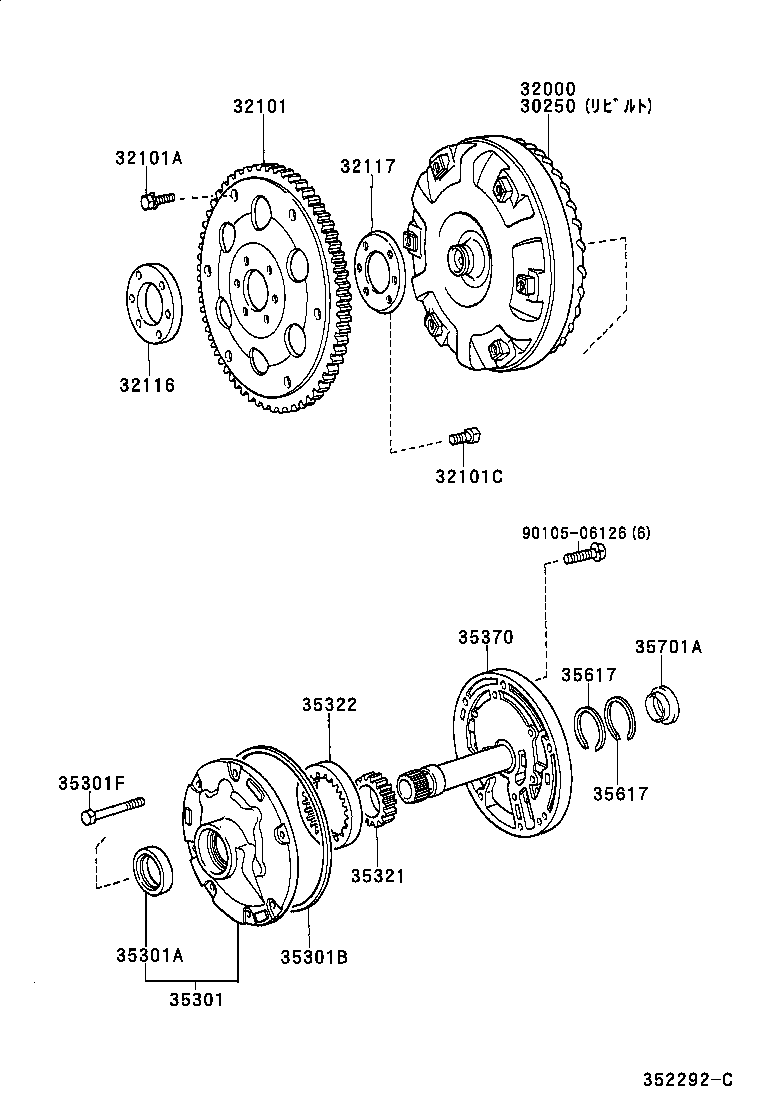

Click highlighted areas on diagram

A42DL,A43D

diagram 30250 32000 32101 32101A 32101C 32116 32117 35301 35301A 35301B 35301F 35321 35322 35370 35617 35617 35701A 9010506126
Part # Description Qty Price
30250 - CONVERTER ASSY, TORQUE, REBUILT
30250-30240

GS151..4FC..HTWC

 1
30250-22090

GS151..4FC..HTWC

 1
30250-22220

GS151..4FC..HTWC

 1
32000 - CONVERTER ASSY, TORQUE
32000-30240

GS151..4FC..HTWC

 1
32000-22090

GS151..4FC..HTWC

 1
32000-22220

GS151..4FC..HTWC

 1
32101 - GEAR SUB-ASSY, DRIVE PLATE & RING
32101-24012

GS151..4FC

 1
32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)
90119-09009

GS151,JZS15#,LS151,UZS15#..ATM

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
90119-09010

GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)

*9−1.25PX12.8−9,ｸﾞﾘｰﾝ

 1
90119-09009

GS151,JZS15#,LS151..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)

*9−1.25PX12.8−8.8,ｲｴﾛｰ

 5
32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING)
90105-10046

GS151..4FC

*10−1.25PX23−15.5

 6
32116 - SPACER, DRIVE PLATE, FRONT
32116-14011

GS151..4FC

 1
32117 - SPACER, DRIVE PLATE, REAR
32117-14011

GS151..4FC

 1
35301 - BODY SUB-ASSY, FRONT OIL PUMP
35301-14010

GS151..4FC..HTWC

 1
35301-22021

GS151..4FC..HTWC

 1
35301-14010

GS151..4FC

 1
35301-22020

GS151..4FC..HTWC

 1
35301A - SEAL, OIL (FOR FRONT OIL PUMP)
90311-38020

GS151..4FC..HTWC

 1
90311-38020

GS151..4FC

 1
90311-38064

GS151..4FC..HTWC

 1
35301B - RING, O (FOR FRONT OIL PUMP BODY)
90301-99010

GS151..4FC

 1
35301F - BOLT (FOR FRONT OIL PUMP SETTING)
90105-08137

GS151..4FC

 7
35321 - GEAR, FRONT OIL PUMP DRIVE
35321-22060

GS151..4FC

厚さ=17.285−17.276

 1
35321-22020

GS151..4FC

厚さ=17.244−17.235

 1
35321-22050

GS151..4FC

厚さ=17.275−17.266

 1
35321-22030

GS151..4FC

厚さ=17.254−17.245

 1
35321-22040

GS151..4FC

厚さ=17.265−17.255

 1
35322 - GEAR, FRONT OIL PUMP DRIVEN
35322-22050

GS151..4FC

厚さ=17.275−17.266

 1
35322-22020

GS151..4FC

厚さ=17.244−17.235

 1
35322-22060

GS151..4FC

厚さ=17.285−17.276

 1
35322-22040

GS151..4FC

厚さ=17.265−17.255

 1
35322-22030

GS151..4FC

厚さ=17.254−17.245

 1
35370 - SHAFT ASSY, STATOR
35370-22060

GS151..4FC..HTWC

 1
35370-14012

GS151..4FC..HTWC

 1
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

GS151..4FC

 2
35617 - RING, CLUTCH DRUM OIL SEAL
35617-32010

GS151..4FC

 2
35701A - BEARING, THRUST (FOR INPUT SHAFT FRONT)
90374-25003

GS151..4FC

 1
Common parts
90105-06126
