GS151H-ATPSK (1995)

Toyota Crown/Crown Majesta

Production Aug 1995 - Sep 1999
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

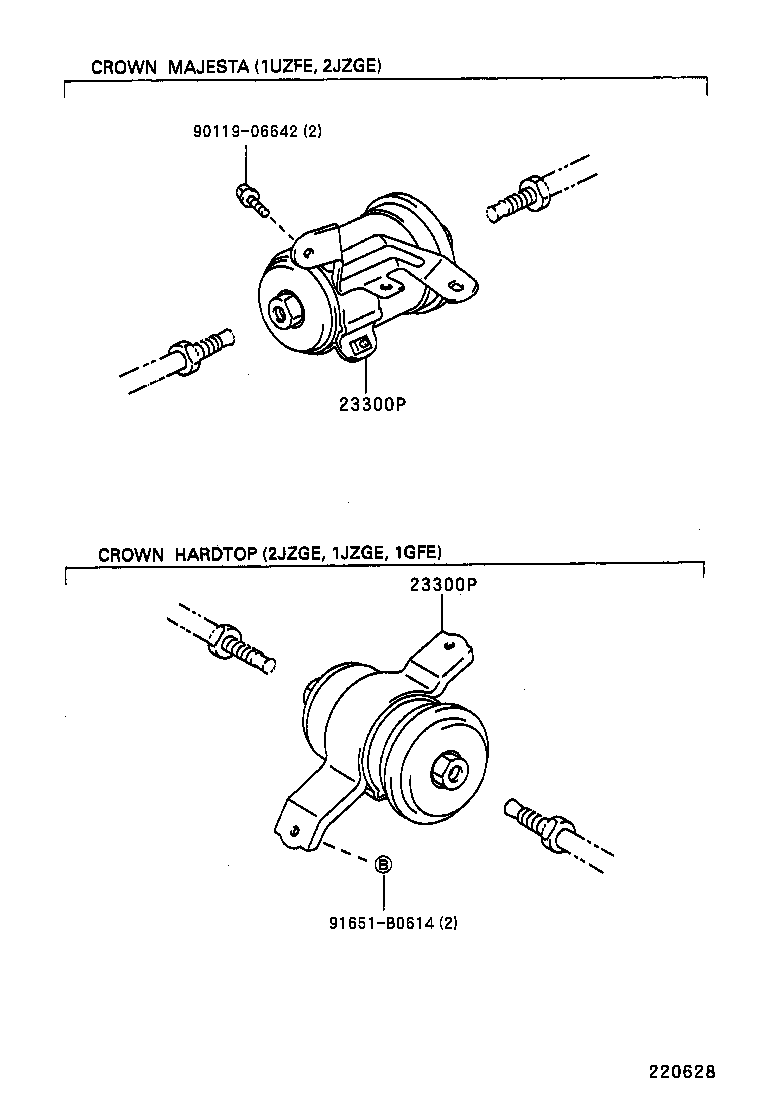

ILLUST NO. 3 OF 3(9508- )1GFE

Click highlighted areas on diagram

diagram 23300P 23300P 9011906642 91651B0614
Part # Description Qty Price
23300P - FILTER, FUEL(FOR EFI)
23300-46090

1GFE..GS151

 1
23300P - FILTER, FUEL(FOR EFI)
23300-46090

1GFE..GS151

 1
Common parts
90119-06642
91651-B0614

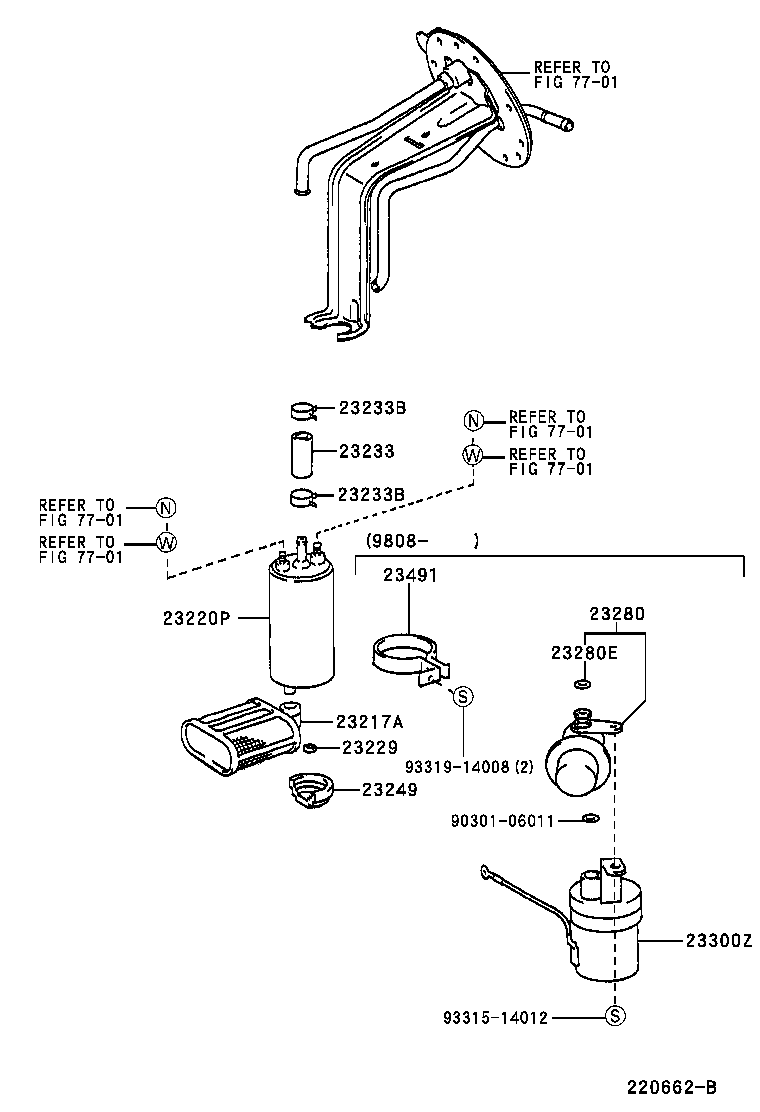

ILLUST NO. 2 OF 3(9508- )1GFE

Click highlighted areas on diagram

diagram 23217A 23220P 23229 23233 23233B 23233B 23249 23280 23280E 23300Z 23491 7701 7701 7701 7701 7701 9030106011 9331514012 9331914008
Part # Description Qty Price
23217A - FILTER, FUEL PUMP
23217-50020

1GFE..GS151

 1
23220P - PUMP ASSY, FUEL
23220-43070

1GFE..GS151

 1
23229 - CLIP(FOR FUEL PUMP FILTER)
23229-16010

1GFE..GS151

 1
23233 - HOSE, FUEL PUMP
23239-63010

1GFE..GS151

 1
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1GFE..GS151

 2
23233B - CLIP(FOR FUEL PUMP HOSE)
90467-13054

1GFE..GS151

 2
23249 - RUBBER, CUSHION(FOR FUEL PUMP)
23249-74150

1GFE..GS151

 1
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70070

1GFE..GS151

 1
23280-50030

1GFE..GS151

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

1GFE..GS151

 1
90301-07001

1GFE..GS151

 1
23300Z - FILTER, FUEL(FOR FUEL TANK)
23300-70150

1GFE..GS151

 1
23491 - CLAMP, FUEL FILTER EARTH
23491-50010

1GFE..GS151

 1
Common parts
90301-06011
93315-14012
93319-14008
Linked diagrams
7701

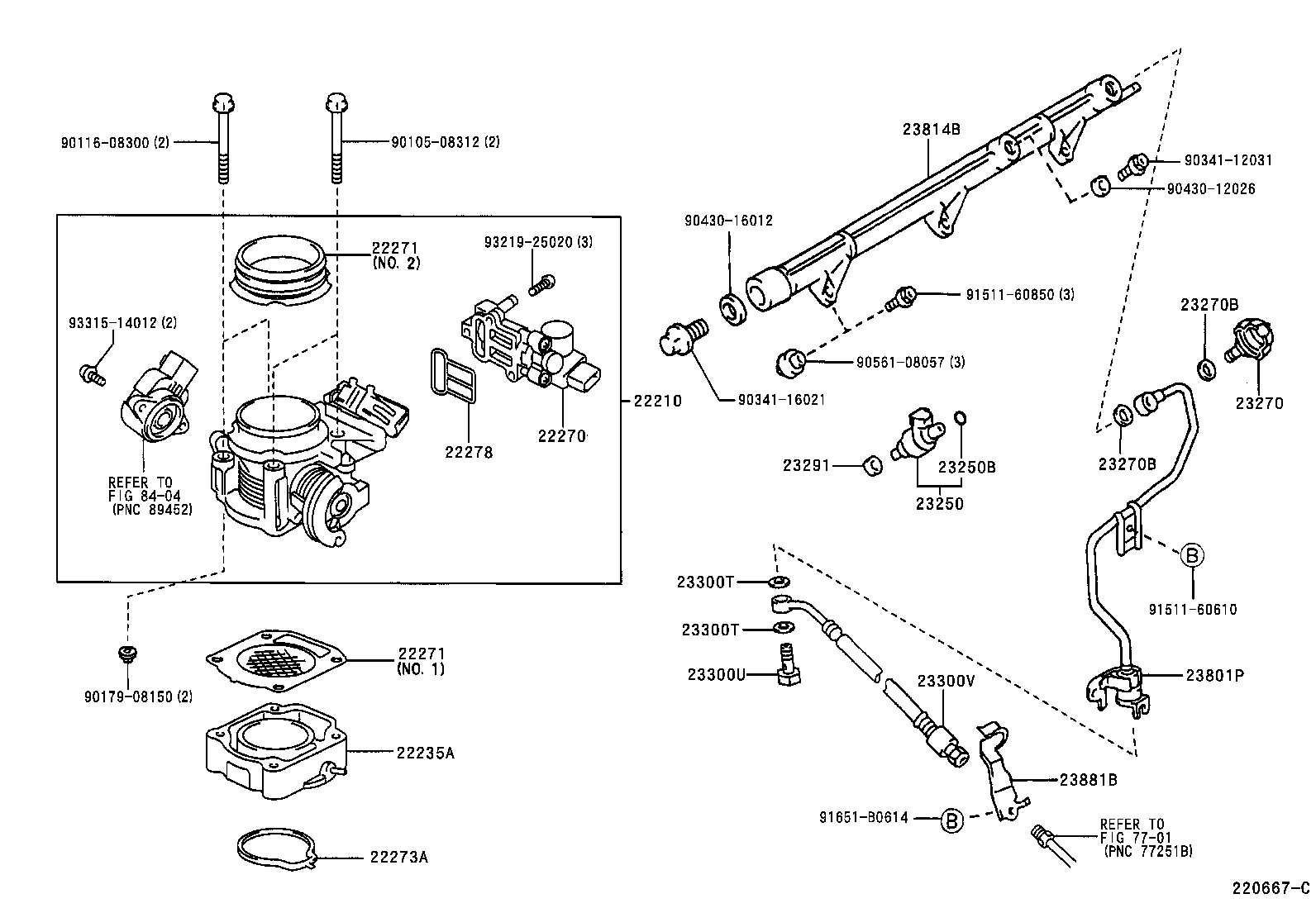

ILLUST NO. 1 OF 3(9808- )1GFE

Click highlighted areas on diagram

diagram 22210 22235A 22270 22271 22271 22273A 22278 23250 23250B 23270 23270B 23270B 23291 23300T 23300T 23300U 23300V 23801P 23814B 23881B 7701 8404 9010508312 9011608300 9017908150 9034112031 9034116021 9043012026 9043016012 9056108057 9151160610 9151160850 91651B0614 9321925020 9331514012
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-70380

1GFE..GS151..4FC

 1
22210-70390

1GFE..GS151..4FC

 1
22210-70410

1GFE..GS151

 1
22235A - INLET, AUXILIARY AIR
22235-70010

1GFE..GS151

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70130

1GFE..GS151

 1
22270-70120

1GFE..GS151

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS151

 1
22271-70040

1GFE..GS151

NO.2

 1
22271-70030

1GFE..GS151

NO.1

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS151

 1
22271-70040

1GFE..GS151

NO.2

 1
22271-70030

1GFE..GS151

NO.1

 1
22273A - GASKET, THROTTLE BODY, NO.2
22273-70020

1GFE..GS151

 1
22278 - GASKET, IDLE SPEED CONTROL VALVE
22278-46020

1GFE..GS151

 1
23250 - INJECTOR ASSY, FUEL
23209-70110

1GFE..GS151

 6
23209-70120

1GFE..GS151

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GFE..GS151

 6
90301-07024

1GFE..GS151

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS151

 1
23207-46010

1GFE..GS151

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS151

 2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS151

 2
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GFE..GS151

 6
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS151

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS151

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE..GS151

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01410

1GFE..GS151

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70110

1GFE..GS151

 1
23801-70120

1GFE..GS151

 1
23814B - PIPE, FUEL DELIVERY
23814-70050

1GFE..GS151

 1
23881B - BRACKET, FUEL HOSE
23881-46030

1GFE..GS151

 1
Common parts
90105-08312
90116-08300
90179-08150
90341-12031
90341-16021
90430-12026
90430-16012
90561-08057
91511-60610
91511-60850
91651-B0614
93219-25020
93315-14012
Linked diagrams
7701
8404

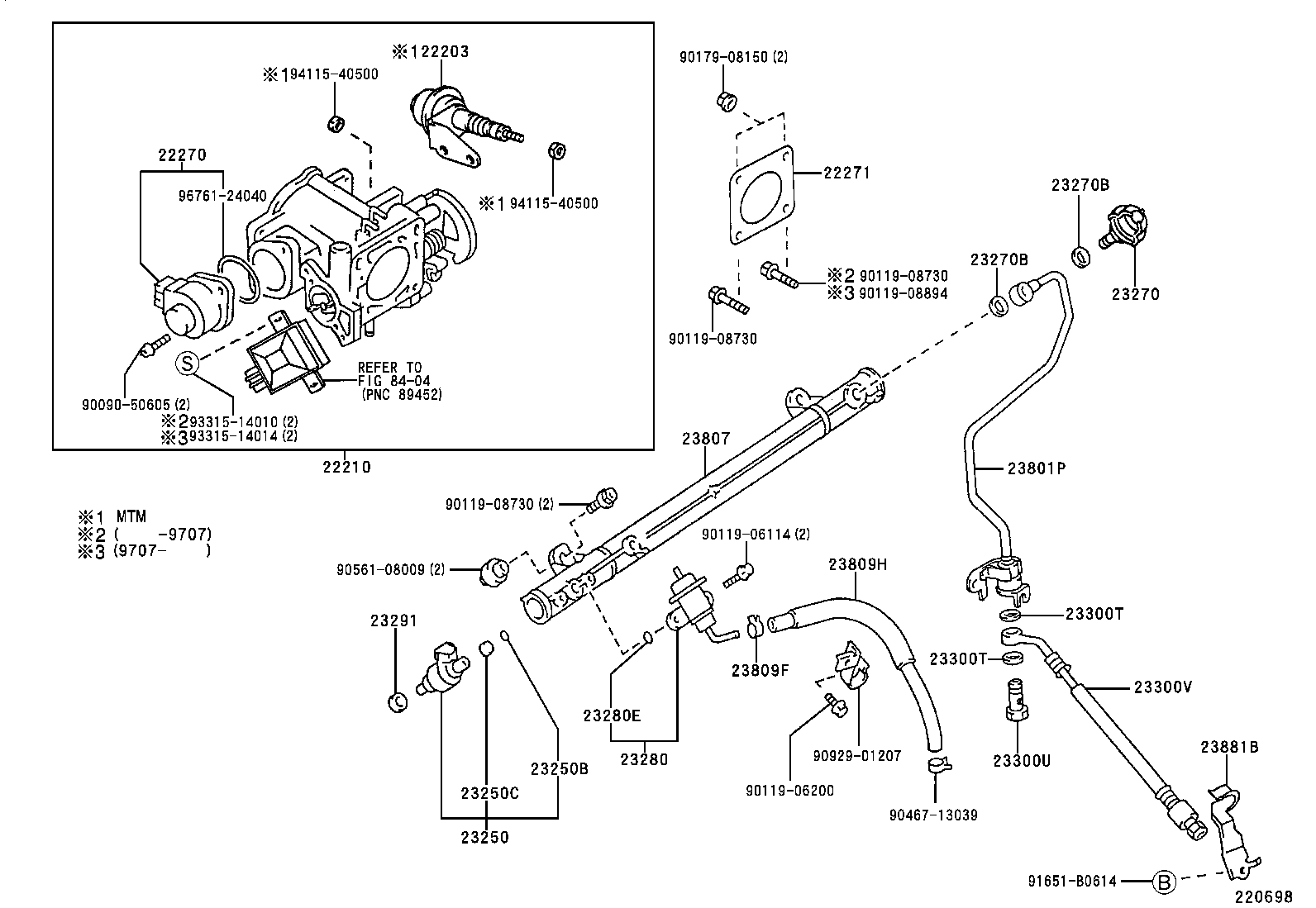

ILLUST NO. 1 OF 3(9508-9808)1GFE

Click highlighted areas on diagram

diagram 22203 22210 22270 22271 23250 23250B 23250C 23270 23270B 23270B 23280 23280E 23291 23300T 23300T 23300U 23300V 23801P 23807 23809F 23809H 23881B 8404 9009050605 9011906114 9011906200 9011908730 9011908730 9011908730 9011908894 9017908150 9046713039 9056108009 9092901207 91651B0614 9331514010 9331514014 9411540500 9411540500 9676124040
Part # Description Qty Price
22210 - BODY ASSY, THROTTLE
22210-70380

1GFE..GS151..4FC

 1
22210-70390

1GFE..GS151..4FC

 1
22210-70410

1GFE..GS151

 1
22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22270-70130

1GFE..GS151

 1
22270-70120

1GFE..GS151

 1
22271 - GASKET, THROTTLE BODY
22271-70021

1GFE..GS151

 1
22271-70040

1GFE..GS151

NO.2

 1
22271-70030

1GFE..GS151

NO.1

 1
23250 - INJECTOR ASSY, FUEL
23209-70110

1GFE..GS151

 6
23209-70120

1GFE..GS151

 6
23250B - RING, O(FOR FUEL INJECTOR)
90301-07001

1GFE..GS151

 6
90301-07024

1GFE..GS151

 6
23250C - GROMMET(FOR FUEL INJECTOR)
90480-13005

1GFE..GS151

 6
23270 - DAMPER ASSY, FUEL PRESSURE PULSATION
23270-28030

1GFE..GS151

 1
23207-46010

1GFE..GS151

 1
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS151

 2
23270B - GASKET(FOR PULSATION DAMPER HOSE)
23232-41081

1GFE..GS151

 2
23280 - REGULATOR ASSY, FUEL PRESSURE
23280-70070

1GFE..GS151

 1
23280-50030

1GFE..GS151

 1
23280E - RING, O(FOR FUEL PRESSURE REGULATOR)
90301-07024

1GFE..GS151

 1
90301-07001

1GFE..GS151

 1
23291 - INSULATOR, INJECTOR VIBRATION
23291-41010

1GFE..GS151

 6
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS151

 2
23300T - GASKET(FOR FUEL FILTER)
90430-12026

1GFE..GS151

 2
23300U - BOLT, UNION(FOR FUEL FILTER)
90401-12097

1GFE..GS151

 1
23300V - HOSE, FUEL(FOR FUEL INLET)
90923-01410

1GFE..GS151

 1
23801P - PIPE SUB-ASSY, FUEL, NO.1
23801-70110

1GFE..GS151

 1
23801-70120

1GFE..GS151

 1
23807 - PIPE SUB-ASSY, FUEL DELIVERY
23807-70060

1GFE..GS151

 1
23809F - CLIP(FOR FUEL PIPE SUPPORT)
90467-13001

1GFE..GS151

 1
23809H - HOSE, FUEL PIPE SUPPORT TO REGULATOR
23271-70050

1GFE..GS151

 1
23881B - BRACKET, FUEL HOSE
23881-46030

1GFE..GS151

 1
Common parts
90090-50605
90119-06114
90119-06200
90119-08730
90119-08894
90179-08150
90467-13039
90561-08009
90929-01207
91651-B0614
93315-14010
93315-14014
94115-40500
96761-24040
Linked diagrams
8404
