8718 - HEATING & AIR CONDITIONING - COOLER PIPING

GS151H-AEPQA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001

Engine 1GGPE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

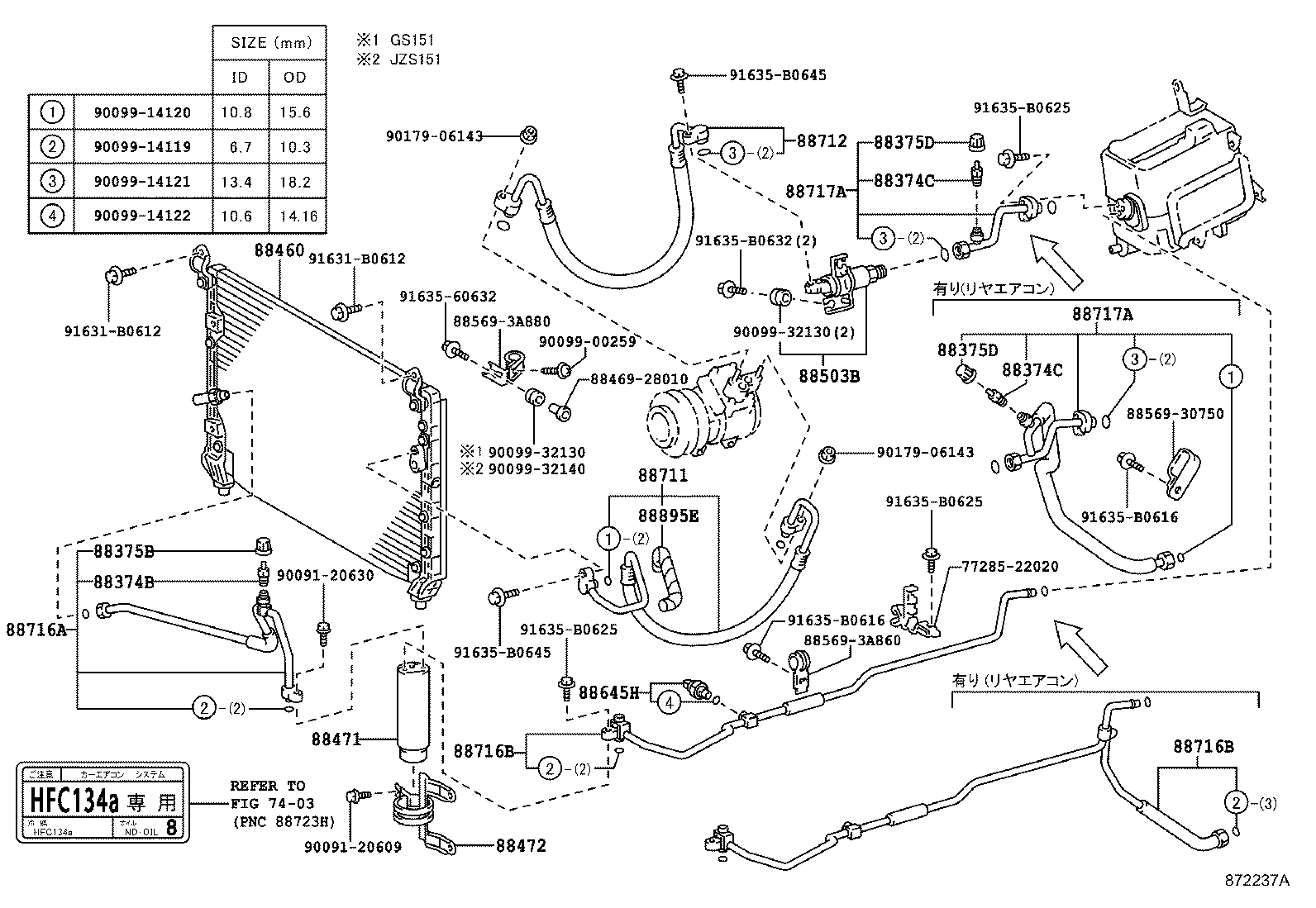

ILLUST NO. 1 OF 2(9508-9707)GS151,JZS151,153 ; (9707- )GS151

Click highlighted areas on diagram

ﾌﾛﾝﾄ

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157	08/1995 - 07/1997	1
88374-30010	GS151,JZS15#,LS151,UZS15#	07/1997 - 12/2999	1
88374C - VALVE, SERVICE, NO.2
88374-30010	LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157	08/1995 - 07/1997	1
88374-30010	GS151,JZS15#,LS151,UZS15#	07/1997 - 12/2999	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157	08/1995 - 07/1997	1
88375-30290	GS151,JZS15#,LS151,UZS15#	07/1997 - 12/2999	1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290	LS151..HT;LS151..NOB;GS151,JZS15#,UZS151,157	08/1995 - 07/1997	1
88375-30290	GS151,JZS15#,LS151,UZS15#	07/1997 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-30750	GS151,JZS151,153,157	08/1995 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-30710	GS151	08/1998 - 12/2999	1
88503-30710	GS151..LPGTE	12/1995 - 08/1998	1
88645H - SWITCH, PRESSURE NO.1
88645-22080	JZS151..HT;JZS151..SALEX;GS151,JZS153,UZS151,157	08/1995 - 07/1997	1
88645-22080	JZS151..SALEX;GS151,JZS153,157,UZS151,157;JZS151,155..HT..(ROY,ROYEX,ROYT)	07/1997 - 12/2999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A270	GS151..LPGTE	12/1995 - 07/1997	1
88711-3A370	GS151..LPGTE	07/1997 - 02/2001	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A740	GS151..LPGTE	12/1995 - 02/2001	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30140	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K070	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	08/1995 - 07/1997	1
88726-3K250	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88726-3K350	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	07/1997 - 12/2999	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K070	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	08/1995 - 07/1997	1
88726-3K250	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88726-3K350	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	07/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A730	GS151..LPGTE	12/1995 - 08/1998	1
88727-3A740	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88727-3A730	GS151	08/1998 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A730	GS151..LPGTE	12/1995 - 08/1998	1
88727-3A740	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88727-3A730	GS151	08/1998 - 12/2999	1
88895E - INSULATOR, RETURN TUBE
88895-12030	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
Common parts
77285-22020
88469-28010
88569-30750
88569-3A860
88569-3A880
90091-20609
90091-20630
90099-00259
90099-14119
90099-14120
90099-14121
90099-14122
90099-32130
90099-32140
90179-06143
91631-B0612
91635-60632
91635-B0616
91635-B0625
91635-B0632
91635-B0645
Linked diagrams
7403

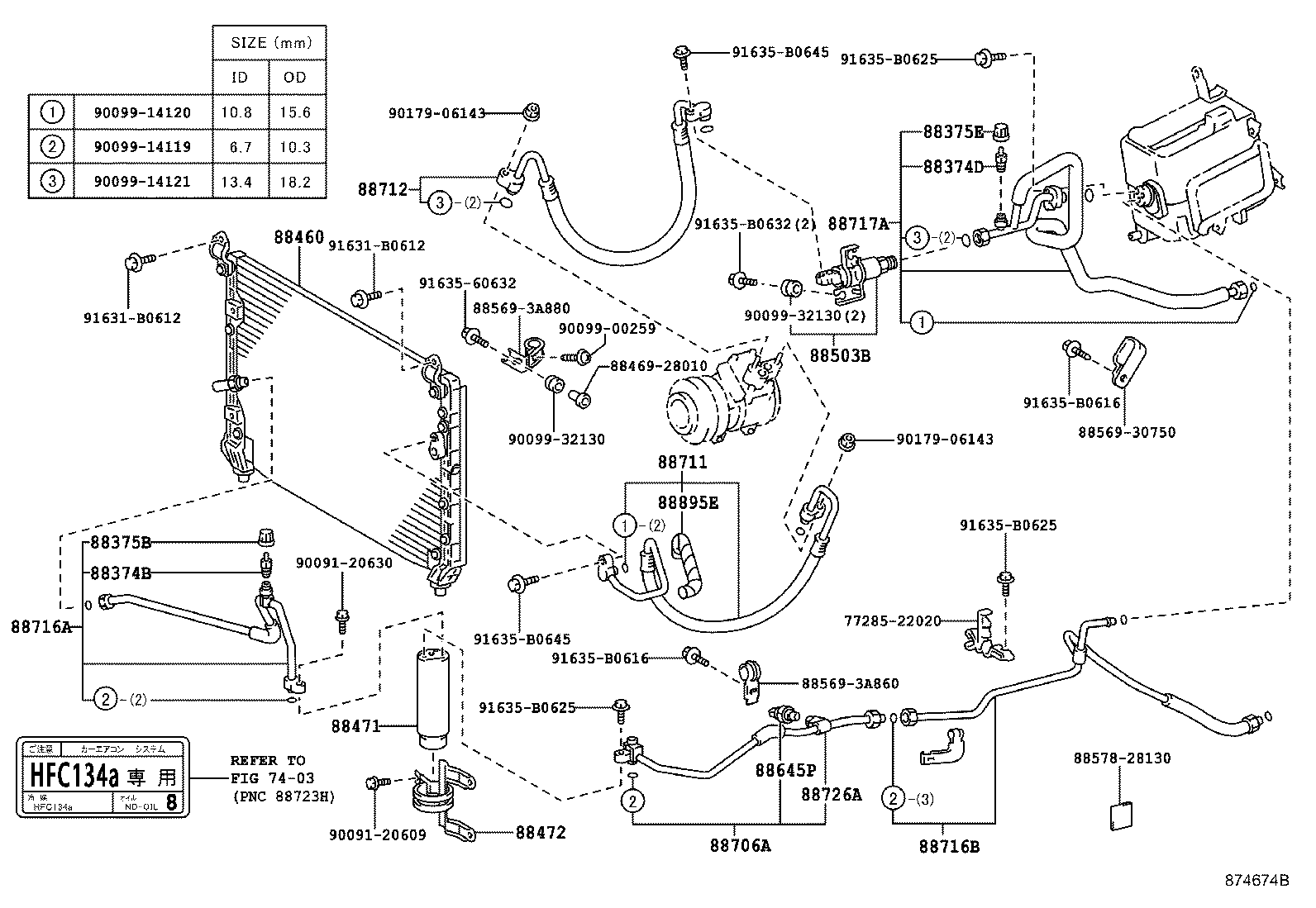

ILLUST NO. 1 OF 2(9512- )LPGTE

Click highlighted areas on diagram

ﾌﾛﾝﾄ (DOP)

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88374D - VALVE, SERVICE NO.3
88374-30010	GS151..LPGTE	12/1995 - 02/2001	1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88375E - PLUG
88375-30290	GS151..LPGTE	12/1995 - 02/2001	1
88460 - CONDENSER ASSY, COOLER
88460-30750	GS151,JZS151,153,157	08/1995 - 12/2999	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-30370	GS151,JZS15#,LS151,UZS15#	08/1995 - 12/2999	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-30010	GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 12/2999	1
88503B - REGULATOR SUB-ASSY, PRESSURE
88503-30710	GS151	08/1998 - 12/2999	1
88503-30710	GS151..LPGTE	12/1995 - 08/1998	1
88645P - SWITCH, PRESSURE, NO.3
88645-22080	GS151..LPGTE	12/1995 - 02/2001	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-3A270	GS151..LPGTE	12/1995 - 07/1997	1
88711-3A370	GS151..LPGTE	07/1997 - 02/2001	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-3A740	GS151..LPGTE	12/1995 - 02/2001	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-30140	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	08/1995 - 08/2001	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88726-3K070	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	08/1995 - 07/1997	1
88726-3K250	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88726-3K350	GS151;JZS151..SALEX;JZS151,155..HT..(ROY,ROYEX,ROYT)	07/1997 - 12/2999	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3A730	GS151..LPGTE	12/1995 - 08/1998	1
88727-3A740	GS151..LPGTE ｱﾘ(ﾘﾔｴｱｺﾝ)	12/1995 - 02/2001	1
88727-3A730	GS151	08/1998 - 12/2999	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88726-3K410	GS151..LPGTE	07/1997 - 02/2001	1
88726-3K120	GS151..LPGTE	12/1995 - 07/1997	1
88895E - INSULATOR, RETURN TUBE
88895-12030	GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX	07/1997 - 12/2999	1
Common parts
77285-22020
88469-28010
88569-30750
88569-3A860
88569-3A880
88578-28130
90091-20609
90091-20630
90099-00259
90099-14119
90099-14120
90099-14121
90099-32130
90179-06143
91631-B0612
91635-60632
91635-B0616
91635-B0625
91635-B0632
91635-B0645
Linked diagrams
7403

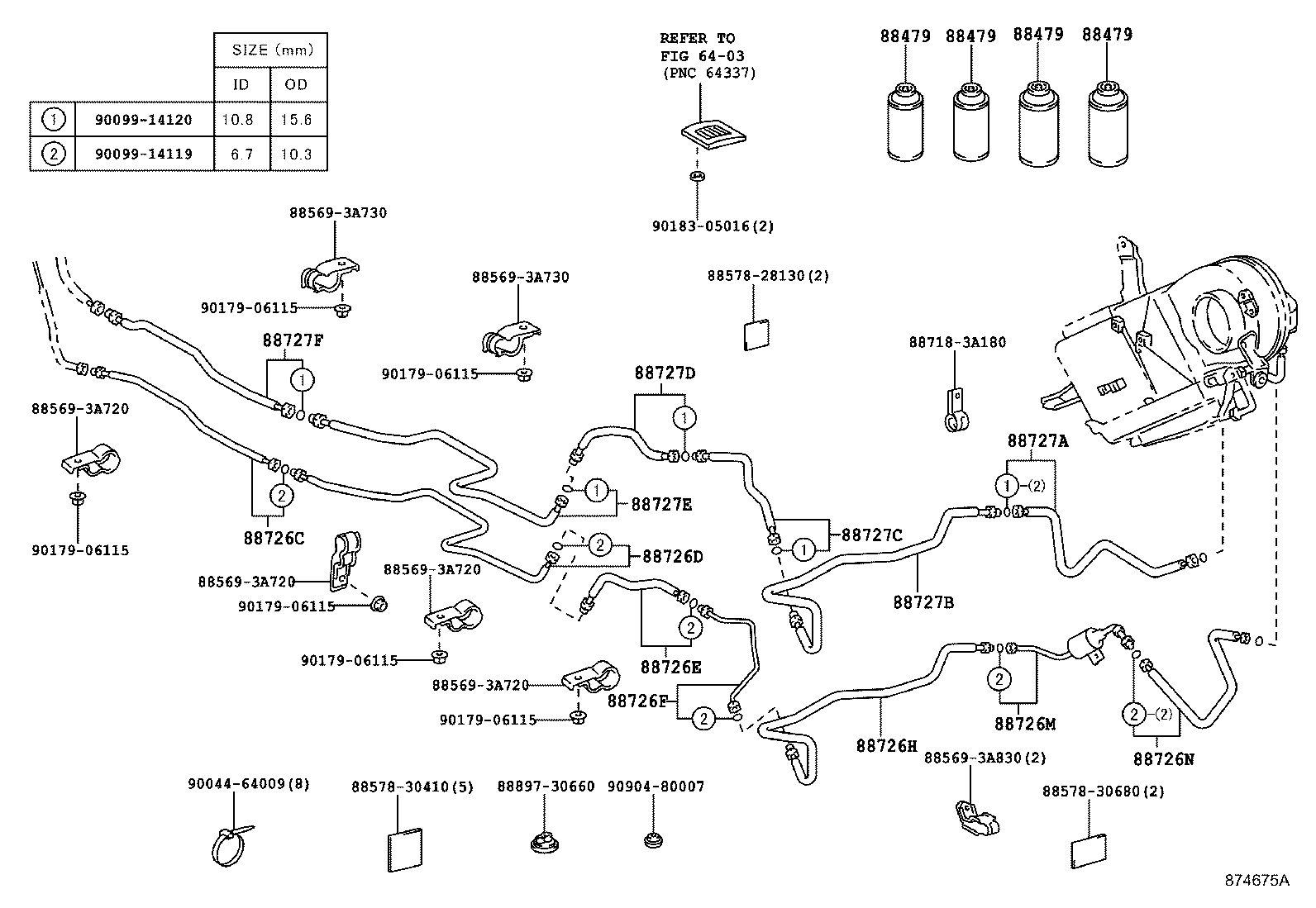

ILLUST NO. 2 OF 2(9512- )LPGTE

Click highlighted areas on diagram

ﾘﾔ (DOP)

Part #	Description	Period	Qty
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	GS151..LPGTE 250G	12/1995 - 02/2001	3
90986-02008	GS151..LPGTE 200G	12/1995 - 02/2001	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	GS151..LPGTE 250G	12/1995 - 02/2001	3
90986-02008	GS151..LPGTE 200G	12/1995 - 02/2001	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	GS151..LPGTE 250G	12/1995 - 02/2001	3
90986-02008	GS151..LPGTE 200G	12/1995 - 02/2001	1
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02007	GS151..LPGTE 250G	12/1995 - 02/2001	3
90986-02008	GS151..LPGTE 200G	12/1995 - 02/2001	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88726-3K210	GS151..LPGTE	12/1995 - 02/2001	1
88726D - PIPE, COOLER REFRIGERANT LIQUID, D
88726-3K220	GS151..LPGTE	12/1995 - 02/2001	1
88726E - PIPE, COOLER REFRIGERANT LIQUID, E
88726-3K240	GS151..LPGTE	12/1995 - 02/2001	1
88726F - PIPE, COOLER REFRIGERANT LIQUID, F
88726-3K230	GS151..LPGTE	12/1995 - 02/2001	1
88726H - PIPE, COOLER REFRIGERANT LIQUID, H
88726-3K270	GS151..LPGTE	12/1995 - 02/2001	1
88726M - PIPE, COOLER REFRIGERANT LIQUID, M
88707-30480	GS151..LPGTE	12/1995 - 02/2001	1
88726N - PIPE, COOLER REFRIGERANT LIQUID, N
88726-3K260	GS151..LPGTE	12/1995 - 02/2001	1
88727A - PIPE, COOLER REFRIGERANT SUCTION, A
88727-3K070	GS151..LPGTE	12/1995 - 02/2001	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88727-3K060	GS151..LPGTE	12/1995 - 02/2001	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88727-3K050	GS151..LPGTE	12/1995 - 02/2001	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88727-3K040	GS151..LPGTE	12/1995 - 02/2001	1
88727E - PIPE, COOLER REFRIGERANT SUCTION, E
88727-3K030	GS151..LPGTE	12/1995 - 02/2001	1
88727F - PIPE, COOLER REFRIGERANT SUCTION, F
88727-3K020	GS151..LPGTE	12/1995 - 02/2001	1
Common parts
88569-3A720
88569-3A730
88569-3A830
88578-28130
88578-30410
88578-30680
88718-3A180
88897-30660
90044-64009
90099-14119
90099-14120
90179-06115
90183-05016
90904-80007
Linked diagrams
6403

GS151H-AEPQA (1995)

ILLUST NO. 1 OF 2(9508-9707)GS151,JZS151,153 ; (9707- )GS151

ILLUST NO. 1 OF 2(9512- )LPGTE

ILLUST NO. 2 OF 2(9512- )LPGTE
