GS151H-AEPQA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512-0102)1GGPE

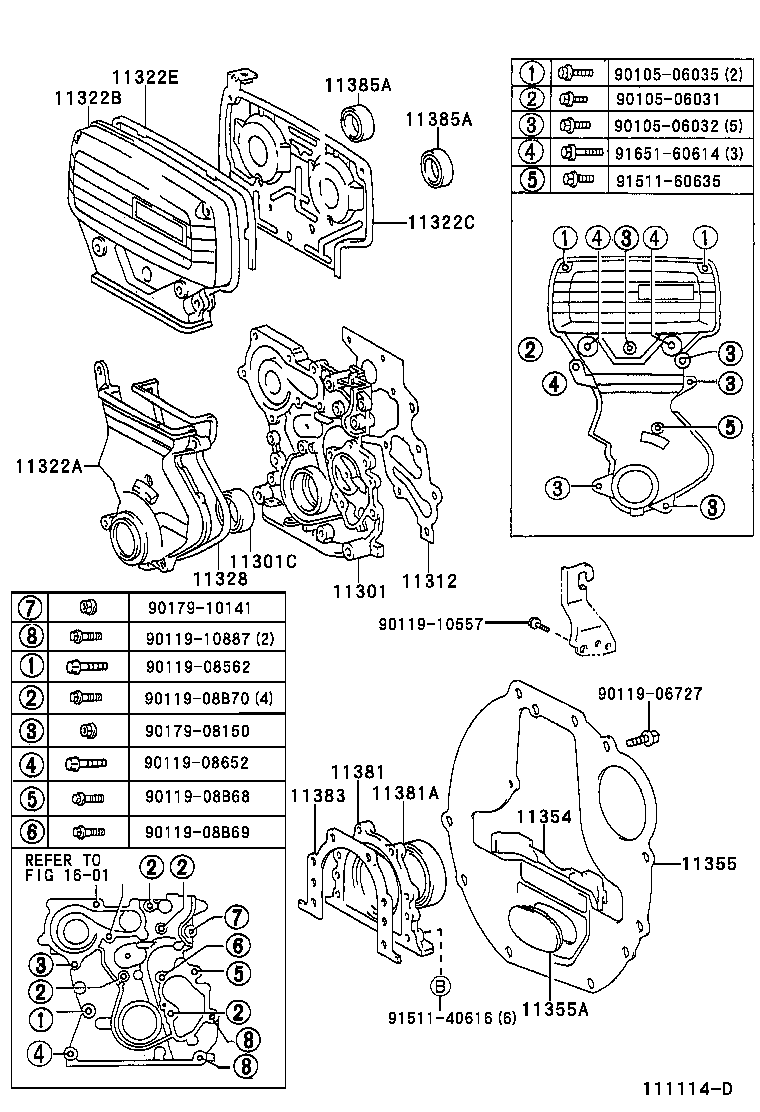

Click highlighted areas on diagram

diagram 11301 11301C 11312 11322A 11322B 11322C 11322E 11328 11354 11355 11355A 11381 11381A 11383 11385A 11385A 1601 9010506031 9010506032 9010506035 9011906727 9011908562 9011908652 9011908B68 9011908B69 9011908B70 9011910557 9011910887 9017908150 9017910141 9151140616 9151160635 9165160614
Part # Description Qty Price
11301 - CASE SUB-ASSY, TIMING GEAR
11311-79045

1GGPE..GS151

 1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45010

1GGPE..GS151

 1
11312 - GASKET, FRONT END PLATE
11312-70014

1G#..GS151

 1
11312-70020

1G#..GS151

 1
11312-70020

1G#..GS151

 1
11322A - COVER, TIMING BELT, NO.1
11321-70040

1GGPE..GS151

 1
11322B - COVER, TIMING BELT, NO.2
11322-88300

1GGPE..GS151

 1
11322C - COVER, TIMING BELT, NO.3
11323-70030

1GGPE..GS151

 1
11322E - GASKET, TIMING BELT COVER, NO.2
11329-88300

1GGPE..GS151

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70040

1GGPE..GS151

 1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010

1G#..GS151

 1
11354-70010

1G#..GS151

 1
11355 - PLATE, REAR END
11355-70020

1G#..GS151..4FC

 1
11355-70020

1G#..GS151

 1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307

1G#..GS151

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010

1G#..GS151

 1
11381-70010

1G#..GS151

 1
11381A - SEAL, ENGINE REAR OIL
90311-75007

1G#..GS151

 1
90311-75007

1G#..GS151

 1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011

1G#..GS151

 1
11383-70011

1G#..GS151

 1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35021

1GGPE..GS151

 2
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35021

1GGPE..GS151

 2
Common parts
90105-06031
90105-06032
90105-06035
90119-06727
90119-08562
90119-08652
90119-08B68
90119-08B69
90119-08B70
90119-10557
90119-10887
90179-08150
90179-10141
91511-40616
91511-60635
91651-60614
Linked diagrams
1601
