GS151H-AEPJK (1995)
Toyota Crown/Crown Majesta

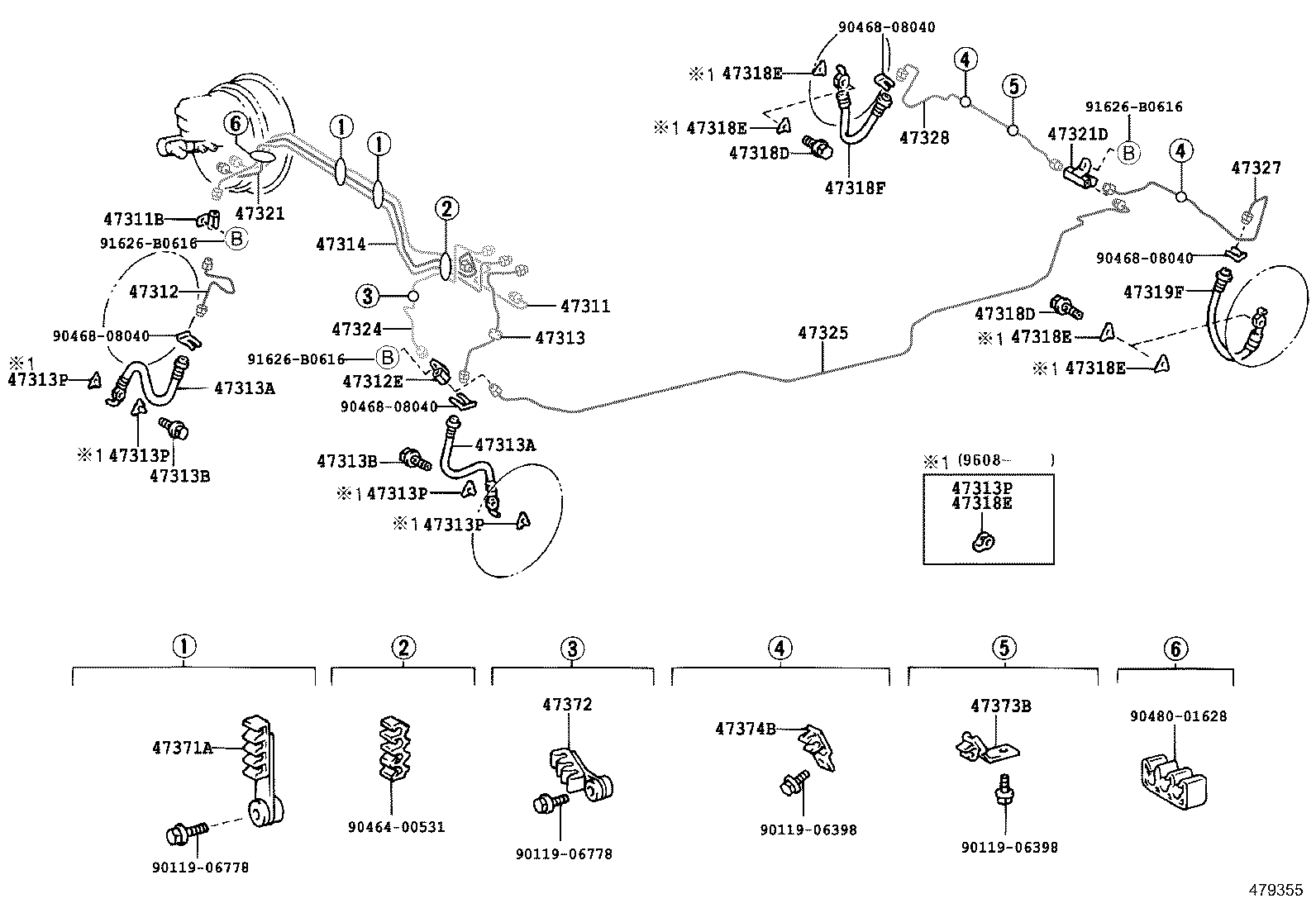

ILLUST NO. 1 OF 2(9707-9909)A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS151,153,157 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30360 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS151,153,157 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS151,153,157 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30180 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS151,153,157 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS151,153,157 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS151,153,157 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371-30390 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90480-01620 | ||||
| 90949-01732 | ||||
| 90949-01B22 | ||||
| 91616-60620 | ||||
| 91626-60625 | ||||
ILLUST NO. 2 OF 2(9707-9909)A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44510-30210 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44050-30020 |
GS151,JZS151,153,157 |
1 | ||
| Common parts | ||||
| 90119-08997 | ||||
| 90179-08025 | ||||
| 90201-06026 | ||||
| 90461-10823 | ||||
| 91615-60632 | ||||
| 96135-51300 | ||||
ILLUST NO. 2 OF 2(9609- )ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44510-30210 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44050-30020 |
GS151,JZS151,153,157 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44569A - HARNESS, BRAKE ACTUATOR | ||||
| 44580-30030 |
GS151,JZS151,153,157 |
1 | ||
| 44580-30030 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30060 |
GS151,JZS151,153,157 |
1 | ||
| 44590-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44590-30060 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-30060 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 91621-60612 | ||||
| 91626-60816 | ||||

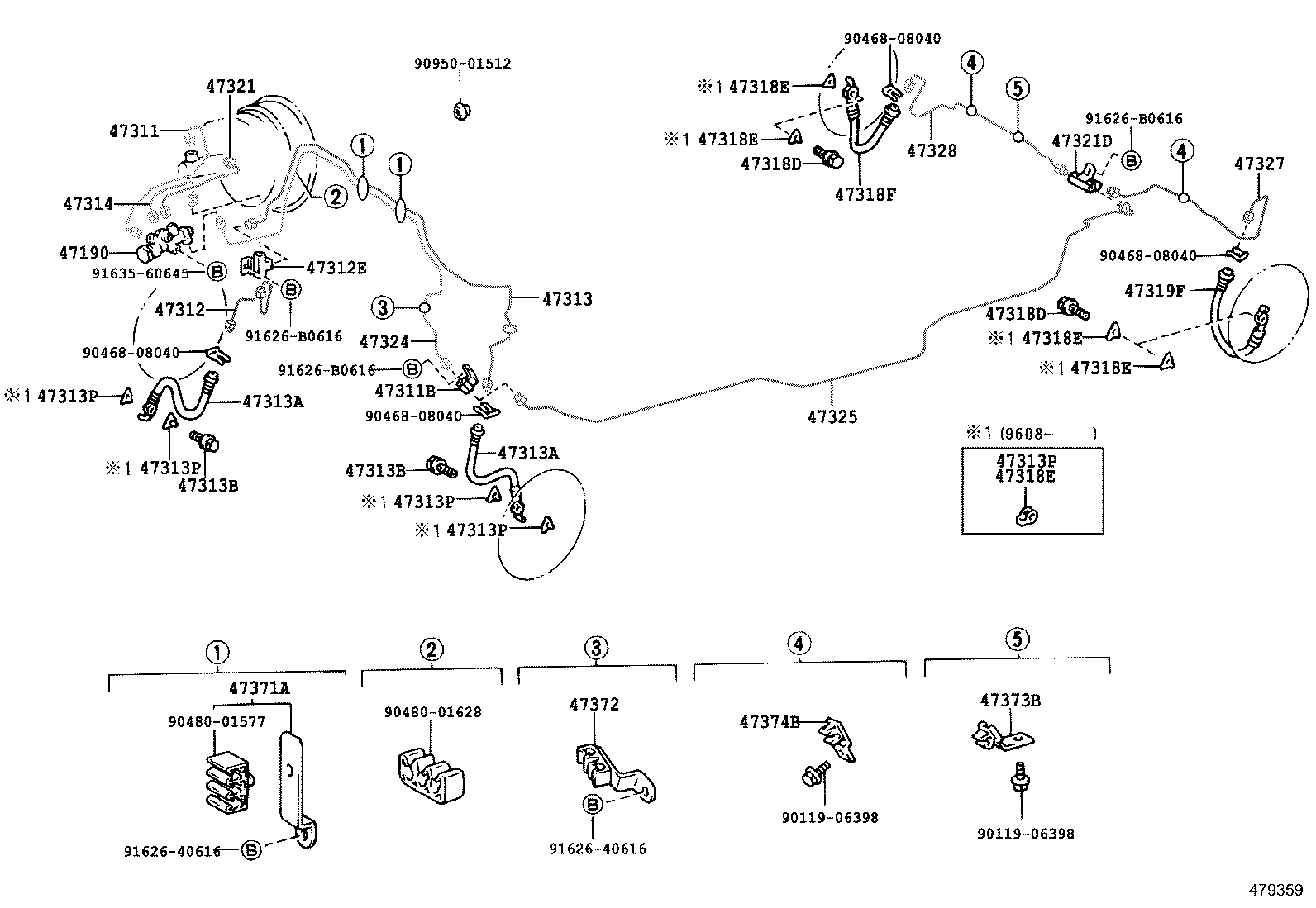

ILLUST NO. 1 OF 2(9508-9707)A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS151,153,157 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30360 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS151,153,157 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS151,153,157 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GS151,JZS151,153,157 |
1 | ||
| 90413-10281 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90413-10281 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS151,153,157 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371-30390 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 47371-30270 | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90949-01732 | ||||
| 90949-01976 | ||||
| 91616-60620 | ||||
| 91626-60625 | ||||
ILLUST NO. 1 OF 2(9508-9707)GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX ; (9707- )GS151,JZS
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS151,153,157 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30360 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS151,153,157 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS151,153,157 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GS151,JZS151,153,157 |
1 | ||
| 90413-10281 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90413-10281 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30180 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS151,153,157 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47325-30030 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47325-30030 |
GS151,JZS151,153,157 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS151,153,157 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS151,153,157 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371-30390 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90119-06778 | ||||
| 90464-00531 | ||||
| 90468-08040 | ||||
| 90480-01628 | ||||
| 91626-B0616 | ||||
ILLUST NO. 1 OF 2(9508-9707)A,E,F ; (9707- )UZS157
ｱﾘ(ﾄﾗｸｼﾖﾝ ｺﾝﾄﾛ-ﾙ)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS151,153,157 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS151,153,157 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS151,153,157 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS151,153,157 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371-30390 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90179-06161 | ||||
| 90468-08034 | ||||
| 90480-01620 | ||||
| 90949-01732 | ||||
| 90959-01450 | ||||
| 91616-60620 | ||||
| 91626-60625 | ||||
ILLUST NO. 1 OF 2(9512-9909)GS151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-30540 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47311-30590 |
GS151,JZS151,153,157 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90412-10213 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-30290 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47313-30340 |
GS151,JZS151 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02842 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10042 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-30360 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47314-30380 |
GS151,JZS151,153,157 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 90401-10058 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 47389-30010 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02840 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-30270 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47321-30310 |
GS151,JZS151,153,157 |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10281 |
GS151,JZS151,153,157 |
1 | ||
| 90413-10281 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 90413-10281 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-30180 |
GS151,JZS151,155..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47324-30200 |
GS151,JZS151,153,157 |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-30030 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47325-30030 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47325-30030 |
GS151,JZS151,153,157 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-30050 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47327-30050 |
GS151,JZS151,153,157 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-30020 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-30420 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| 47371-30420 |
GS151,JZS151,153,157 |
2 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-30390 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47371-30390 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47371-22420 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47371-22530 |
GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
2 | ||
| Common parts | ||||
| 90119-06398 | ||||
| 90468-08040 | ||||
| 90480-01577 | ||||
| 90480-01628 | ||||
| 90950-01512 | ||||
| 91626-40616 | ||||
| 91626-B0616 | ||||
| 91635-60645 | ||||
ILLUST NO. 2 OF 2(9508-9609)GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX
ｱﾘ(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44510-30210 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44050-30020 |
GS151,JZS151,153,157 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30060 |
GS151,JZS151,153,157 |
1 | ||
| 44590-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44590-30060 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-30090 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90179-06074 | ||||
| 90179-08249 | ||||
| 90464-00657 | ||||
| 91612-60814 | ||||
| 91626-60816 | ||||
ILLUST NO. 2 OF 2(9508-9609)A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44510-30210 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44050-30020 |
GS151,JZS151,153,157 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30060 |
GS151,JZS151,153,157 |
1 | ||
| 44590-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44590-30060 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90119-08997 | ||||
| 90179-06074 | ||||
| 90464-00657 | ||||
ILLUST NO. 2 OF 2(9609-9707)A,E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-30150 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44510-30210 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44050-30020 |
GS151,JZS151,153,157 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44545-35080 |
GS151,JZS15# |
3 | ||
| 44545-35080 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-35090 |
GS151,JZS15# |
3 | ||
| 44546-30110 |
GS151,JZS151,155,LS151 |
3 | ||
| 44546-35090 |
GS151,JZS151,153,157 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-30060 |
GS151,JZS151,153,157 |
1 | ||
| 44590-30020 |
GS151,JZS151,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| 44590-30060 |
GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX |
1 | ||
| Common parts | ||||
| 90119-08997 | ||||
| 90179-06074 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
