GS151-AEPJK (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Aug 2001
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

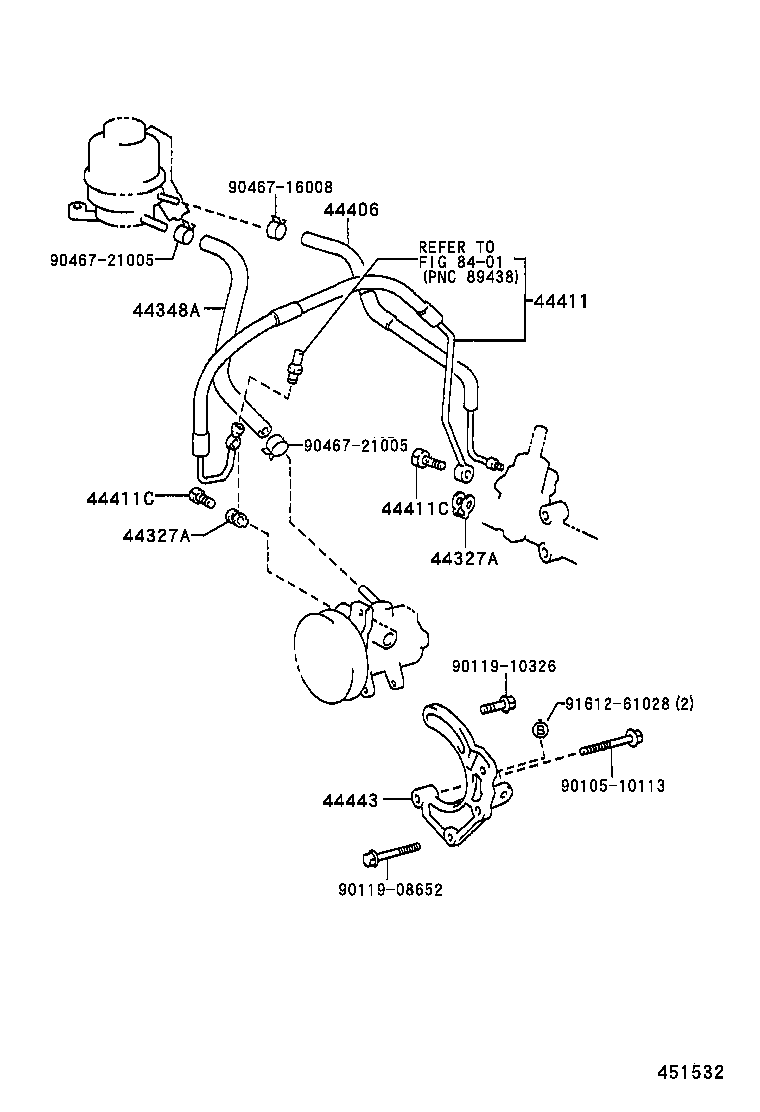

(9508-9808)GS151..HTWC

Click highlighted areas on diagram

diagram 44327A 44348A 44406 44411 44411C 44443 9010510113 9011908652 9011910326 9046716008 9046721005 9046721005 9161261028
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

UZS151,157;GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
44327-30030

GS151,JZS15#,LS151,UZS151,157..C,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
44327-30030

GS151..HTWC

 2
44327-30030

GS151,JZS15#,LS151,UZS151,157

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22290

GS151

 1
44348-22320

GS151..HTWC

 1
44348-30150

GS151..HTWC

 1
44406 - TUBE SUB-ASSY, RETURN
44406-30270

GS151..HTWC

 1
44406-22300

GS151..HTWC

 1
44411 - HOSE, PRESSURE FEED
44411-22710

GS151..HTWC

 1
44411-30530

GS151..HTWC

 1
44411-30590

GS151..HTWC

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GS151,JZS15#,LS151,UZS151,157

 1
96341-41603

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
96341-41603

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
96341-41603

GS151..HTWC

 2
44443 - BRACKET, PUMP
44443-22100

GS151..HTWC

 1
44443-22150

GS151..HTWC

 1
Common parts
90105-10113
90119-08652
90119-10326
90467-16008
90467-21005
91612-61028

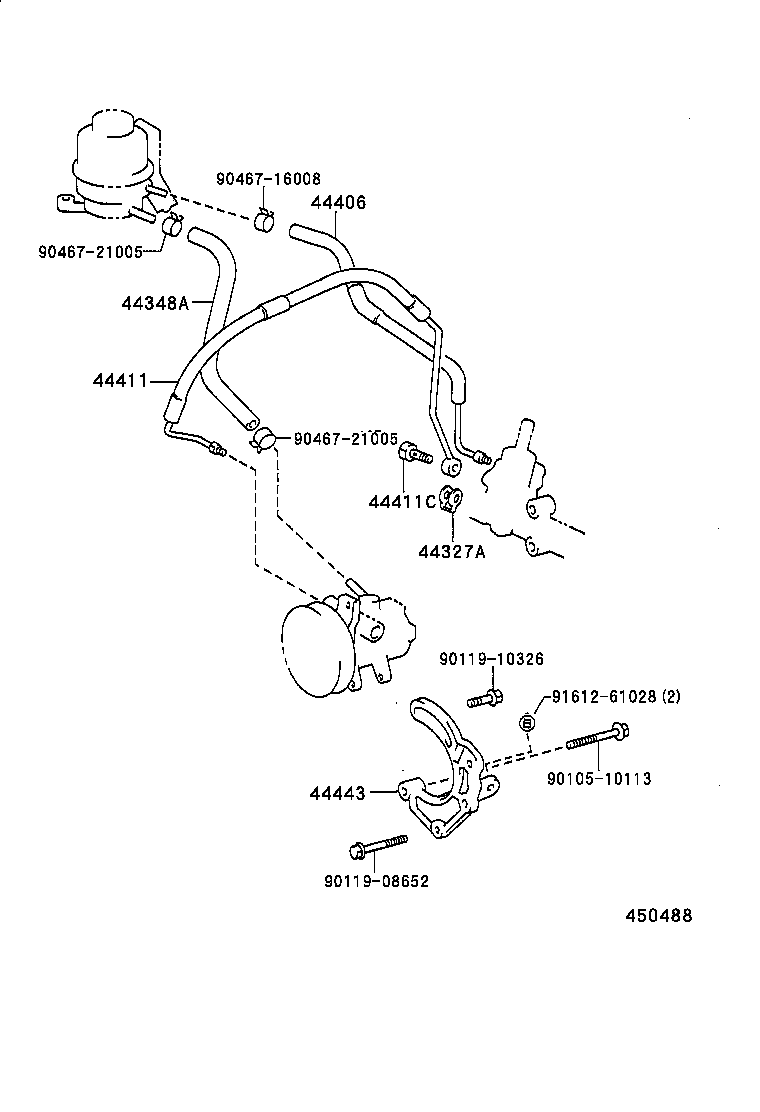

(9808- )GS151..HTWC

Click highlighted areas on diagram

diagram 44327A 44327A 44348A 44406 44411 44411C 44411C 44443 8401 9010510113 9011908652 9011910326 9046716008 9046721005 9046721005 9161261028
Part # Description Qty Price
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

UZS151,157;GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
44327-30030

GS151,JZS15#,LS151,UZS151,157..C,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
44327-30030

GS151..HTWC

 2
44327-30030

GS151,JZS15#,LS151,UZS151,157

 1
44327A - GASKET, PRESSURE PORT, NO.1
44327-30030

UZS151,157;GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
44327-30030

GS151,JZS15#,LS151,UZS151,157..C,F,ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
44327-30030

GS151..HTWC

 2
44327-30030

GS151,JZS15#,LS151,UZS151,157

 1
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-22290

GS151

 1
44348-22320

GS151..HTWC

 1
44348-30150

GS151..HTWC

 1
44406 - TUBE SUB-ASSY, RETURN
44406-30270

GS151..HTWC

 1
44406-22300

GS151..HTWC

 1
44411 - HOSE, PRESSURE FEED
44411-22710

GS151..HTWC

 1
44411-30530

GS151..HTWC

 1
44411-30590

GS151..HTWC

 1
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GS151,JZS15#,LS151,UZS151,157

 1
96341-41603

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
96341-41603

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
96341-41603

GS151..HTWC

 2
44411C - BOLT, UNION(FOR PRESSURE FEED HOSE)
96341-41603

GS151,JZS15#,LS151,UZS151,157

 1
96341-41603

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
96341-41603

GS151,JZS15#,LS151..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(LPGTE,TDE,TWC)

 1
96341-41603

GS151..HTWC

 2
44443 - BRACKET, PUMP
44443-22100

GS151..HTWC

 1
44443-22150

GS151..HTWC

 1
Common parts
90105-10113
90119-08652
90119-10326
90467-16008
90467-21005
91612-61028
Linked diagrams
8401
