GS151-AEPJK (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Aug 2001
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9808)GS151..4FC..HTWC

Click highlighted areas on diagram

A42DL

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32924 32924A 32925 32926 32926 9046713039 9046713039 9046713039 9161160612 9161160612 9161160814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22650

GS151..4FC..HTWC

 1
32921-22780

GS151..4FC..HTWC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90407-14003

GS151..4FC..HTWC

ｱｳﾄﾚｯﾄ

 1
90404-14021

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90404-16021

GS151..4FC

ｲﾝﾚｯﾄ

 1
90407-16010

GS151..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90407-14003

GS151..4FC..HTWC

ｱｳﾄﾚｯﾄ

 1
90404-14021

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90404-16021

GS151..4FC

ｲﾝﾚｯﾄ

 1
90407-16010

GS151..4FC

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15048

GS151..4FC..HTWC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS151..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS151..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22650

GS151..4FC..HTWC

 1
32922-30710

GS151..4FC..HTWC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15020

GS151..4FC..HTWC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-30080

GS151..4FC..HTWC

 1
32923-22080

GS151..4FC..HTWC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-22120

GS151..4FC

 1
32924-22150

GS151..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-30090

GS151..4FC..HTWC

 1
90949-01B25

GS151..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-12047

GS151..4FC

 1
90462-12085

GS151..4FC..HTWC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
Common parts
90467-13039
91611-60612
91611-60814

(9808- )GS151..4FC..HTWC

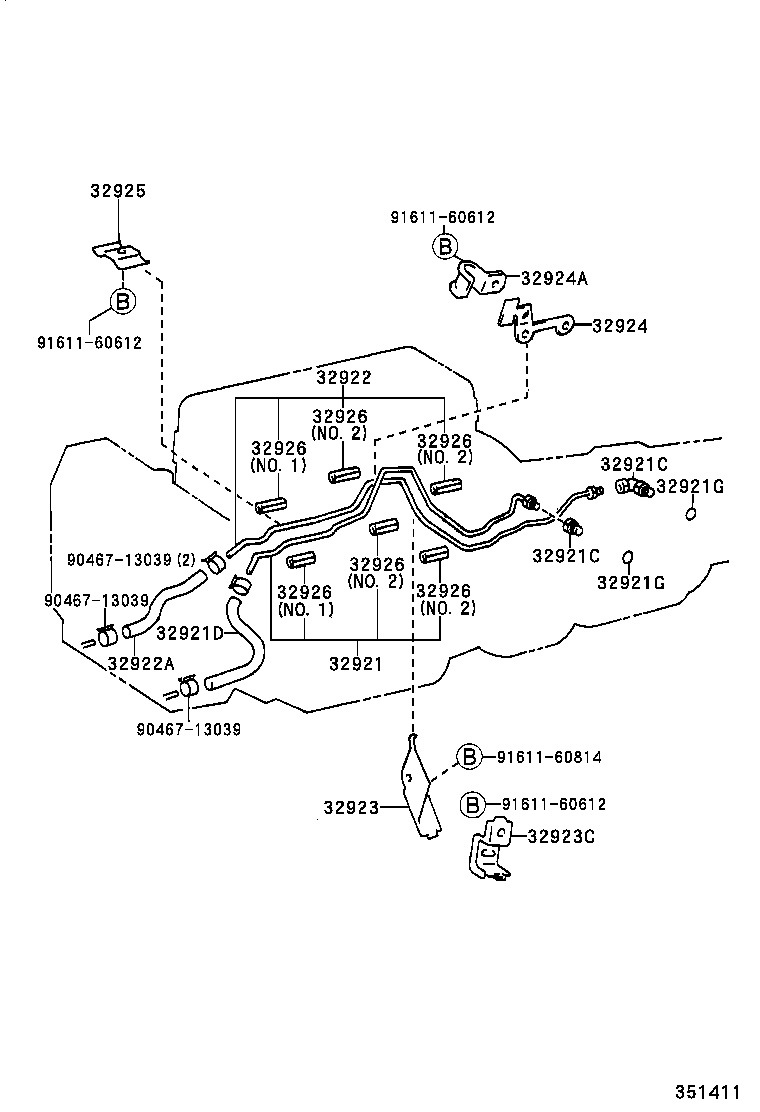

Click highlighted areas on diagram

A42DL

diagram 32921 32921C 32921C 32921D 32921G 32921G 32922 32922A 32923 32923C 32924 32924A 32925 32926 32926 32926 32926 32926 32926 9046713039 9046713039 9046713039 9161160612 9161160612 9161160612 9161160814
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22650

GS151..4FC..HTWC

 1
32921-22780

GS151..4FC..HTWC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90407-14003

GS151..4FC..HTWC

ｱｳﾄﾚｯﾄ

 1
90404-14021

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90404-16021

GS151..4FC

ｲﾝﾚｯﾄ

 1
90407-16010

GS151..4FC

ｱｳﾄﾚｯﾄ

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90407-14003

GS151..4FC..HTWC

ｱｳﾄﾚｯﾄ

 1
90404-14021

GS151..4FC..HTWC

ｲﾝﾚｯﾄ

 1
90404-16021

GS151..4FC

ｲﾝﾚｯﾄ

 1
90407-16010

GS151..4FC

ｱｳﾄﾚｯﾄ

 1
32921D - HOSE(FOR OIL COOLER INLET)
90445-15048

GS151..4FC..HTWC

 1
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS151..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GS151..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22650

GS151..4FC..HTWC

 1
32922-30710

GS151..4FC..HTWC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-15020

GS151..4FC..HTWC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-30080

GS151..4FC..HTWC

 1
32923-22080

GS151..4FC..HTWC

 1
32923C - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.4
32929-22050

GS151,JZS15#..ATM..(ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX)..(HTWC,TWC)

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-22120

GS151..4FC

 1
32924-22150

GS151..4FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
32929-30090

GS151..4FC..HTWC

 1
90949-01B25

GS151..4FC

 1
32925 - CLAMP, OIL COOLER TUBE, NO.3
90462-12047

GS151..4FC

 1
90462-12085

GS151..4FC..HTWC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-22010

GS151..4FC..HTWC

長さ=35,内径=8

 2
32926-30030

GS151..4FC..HTWC

長さ=35,内径=10,NO.2

 4
32926-30020

GS151..4FC

長さ=35,内径=10,NO.1

 2
Common parts
90467-13039
91611-60612
91611-60814
