GS151-AEPJK (1995)
Toyota Crown/Crown Majesta
Production
Dec 1995
-
Aug 2001
Engine
1GFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

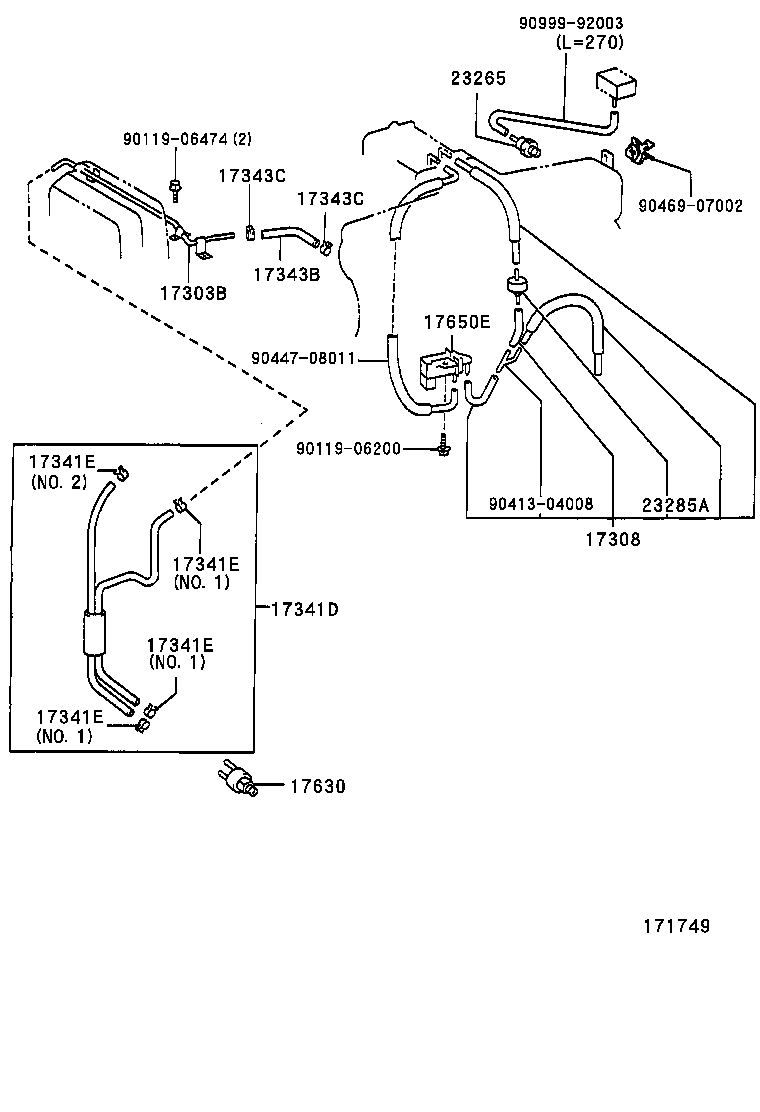

(9508-9808)1GFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-70080 |
1GFE..GS151 |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-70030 |
1GFE..GS151 |
1 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-70240 |
1GFE..GS151 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1GFE..GS151 NO.1 |
3 | ||
| 96132-51100 |
1GFE..GS151 NO.2 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1GFE..GS151 NO.1 |
3 | ||
| 96132-51100 |
1GFE..GS151 NO.2 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1GFE..GS151 NO.1 |
3 | ||
| 96132-51100 |
1GFE..GS151 NO.2 |
1 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-51000 |
1GFE..GS151 NO.1 |
3 | ||
| 96132-51100 |
1GFE..GS151 NO.2 |
1 | ||
| 17343B - HOSE, NO.3(FOR IDLE-UP) | ||||
| 17343-70050 |
1GFE..GS151 |
1 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1GFE..GS151 |
2 | ||
| 17343C - CLIP, NO.3(FOR IDLE-UP HOSE) | ||||
| 90467-10106 |
1GFE..GS151 |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
1GFE..GS151 |
1 | ||
| 17650E - VALVE, VACUUM SWITCHING | ||||
| 90910-12120 |
1GFE..GS151 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1GFE..GS151 |
1 | ||
| 90917-11022 |
1GFE..GS151 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10080 |
1GFE..GS151 |
1 | ||
| Common parts | ||||
| 90119-06200 | ||||
| 90119-06474 | ||||
| 90413-04008 | ||||
| 90447-08011 | ||||
| 90469-07002 | ||||
| 90999-92003 | ||||

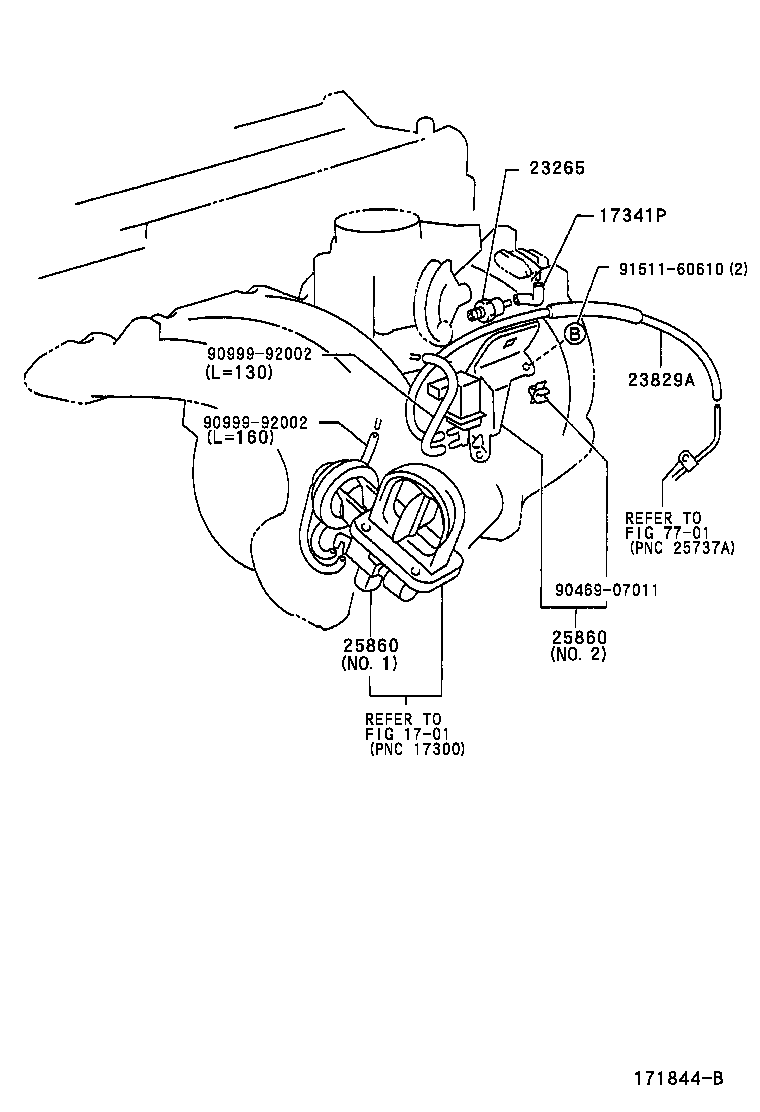

(9808- )1GFE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341P - HOSE, AIR | ||||
| 17341-70260 |
1GFE..GS151 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11022 |
1GFE..GS151 |
1 | ||
| 90917-11022 |
1GFE..GS151 |
1 | ||
| 23829A - HOSE, FUEL VAPOR FEED | ||||
| 23829-70010 |
1GFE..GS151 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-46010 |
1GFE..GS151 NO.1 |
1 | ||
| 25860-46010 |
1GFE..GS151 NO.1 |
1 | ||
| 25860-70020 |
1GFE..GS151 NO.2 |
1 | ||
| 25860-70020 |
1GFE..GS151 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-46010 |
1GFE..GS151 NO.1 |
1 | ||
| 25860-46010 |
1GFE..GS151 NO.1 |
1 | ||
| 25860-70020 |
1GFE..GS151 NO.2 |
1 | ||
| 25860-70020 |
1GFE..GS151 NO.2 |
1 | ||
| Common parts | ||||
| 90469-07011 | ||||
| 90999-92002 | ||||
| 91511-60610 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 7701 | ||||
