GS151-AEPJK (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Aug 2001
Engine 1GFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9808)1GFE

Click highlighted areas on diagram

diagram 1104 1104 17700 17705 17751 17781 17801 17856 17861 17875 17881 17882 17882A 9010506057 9011906467 9017606019 9054111007 9611110750 9611110830 9611110830
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70180

1GFE..GS151

 1
17700-46260

1GFE..GS151

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46150

1G#..GS151

 1
17705-70080

1GFE..GS151

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46060

1G#..GS151

 1
17751-70080

1GFE..GS151

 1
17781 - SEAL, AIR CLEANER INLET
17781-70010

1G#..GS151

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

1GFE..GS151

 1
17801-70050

1GFE..GS151

 1
17856 - GASKET, AIR INTAKE FLANGE
17856-70020

1GFE..GS151

 1
17861 - CONNECTOR, INTAKE AIR
17861-70070

1GFE..GS151

 1
17875 - PIPE, INTAKE AIR CONNECTOR
17875-70140

1GFE..GS151

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-70250

1GFE..GS151

 1
17882 - HOSE, AIR CLEANER, NO.2
17882-70170

1GFE..GS151

 1
17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2)
96111-10880

1GFE..GS151

 1
Common parts
90105-06057
90119-06467
90176-06019
90541-11007
96111-10750
96111-10830
Linked diagrams
1104

(9808- )1GFE

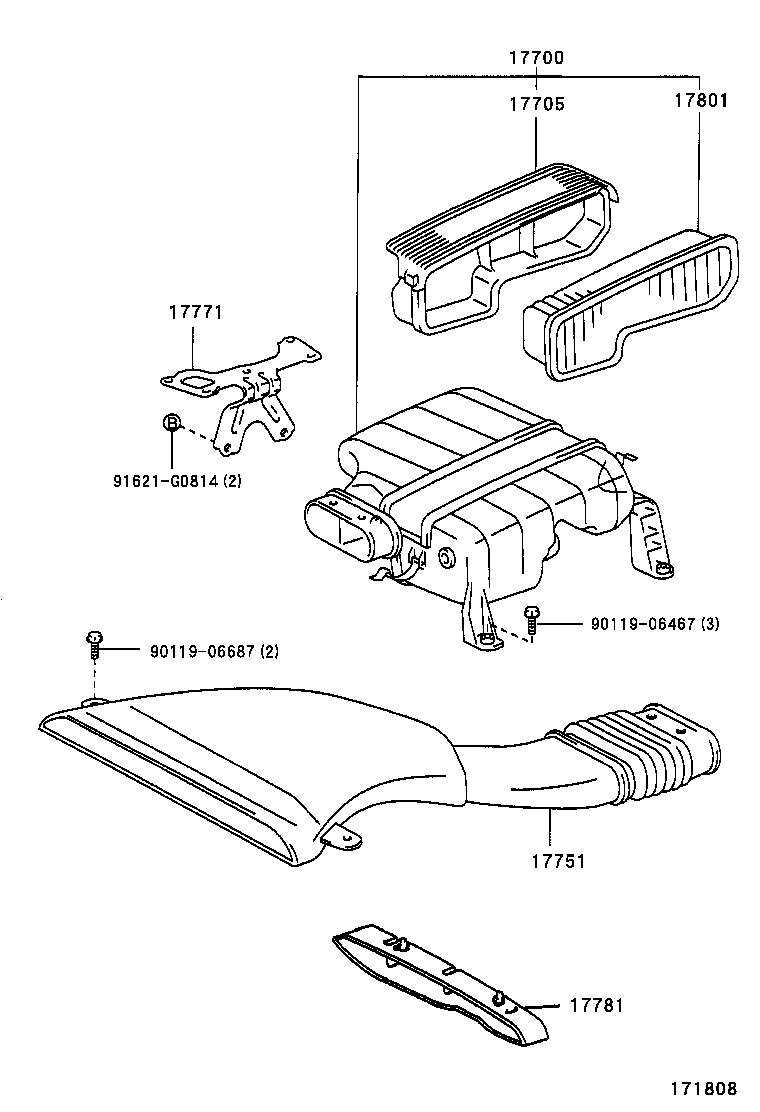

Click highlighted areas on diagram

diagram 17700 17705 17751 17771 17781 17801 9011906467 9011906687 91621G0814
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-70180

1GFE..GS151

 1
17700-46260

1GFE..GS151

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-46150

1G#..GS151

 1
17705-70080

1GFE..GS151

 1
17751 - INLET, AIR CLEANER, NO.1
17751-46060

1G#..GS151

 1
17751-70080

1GFE..GS151

 1
17771 - BRACKET, AIR CLEANER INLET DUCT
17771-70010

1GFE..GS151

 1
17771-70010

1GFE..GS151

 1
17781 - SEAL, AIR CLEANER INLET
17781-70010

1G#..GS151

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-46060

1GFE..GS151

 1
17801-70050

1GFE..GS151

 1
Common parts
90119-06467
90119-06687
91621-G0814
