Toyota Crown/crown majesta GS151 TIMING GEAR COVER & REAR END PLATE

Manufacturers Home
Toyota
JP
CROWN/CROWN MAJESTA
GS151-AEPJK (1995)
1106 - TIMING GEAR COVER & REAR END PLATE

GS151-AEPJK (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Aug 2001

Engine 1GFE

Transmission 4FC ATM

Displacement 2500cc

Power 168 HP (125 kW)

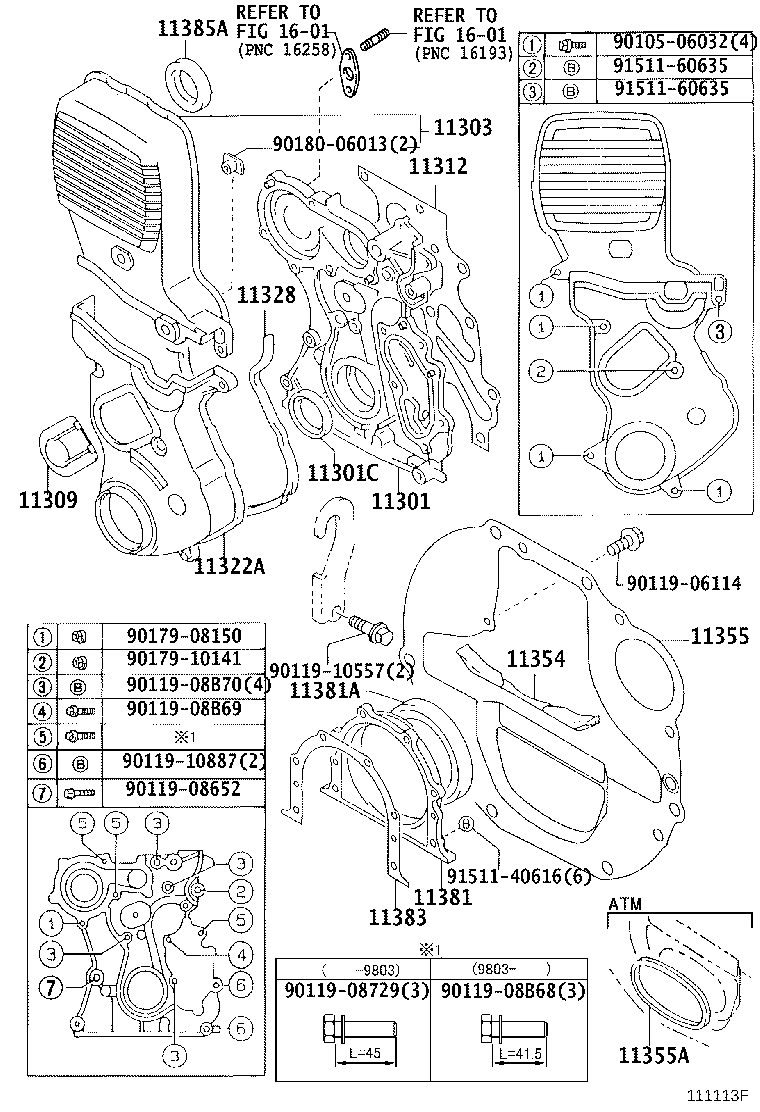

(9508-9808)1GFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11311-79035	1GFE..GS151	08/1995 - 08/1998	1
11311-70060	1GFE..GS151	08/1998 - 09/1999	1
11311-70060	1GFE..GS151	09/1999 - 12/2999	1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003	1GFE..GS151	08/1995 - 08/1998	1
90311-45015	1GFE..GS151	08/1998 - 12/2999	1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-70020	1GFE..GS151	08/1995 - 08/1998	1
11303-70030	1GFE..GS151	09/1999 - 12/2999	1
11303-70030	1GFE..GS151	08/1998 - 09/1999	1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-70020	1GFE..GS151	08/1998 - 09/1999	1
11325-70020	1GFE..GS151	09/1999 - 12/2999	1
11325-88300	1GFE..GS151	08/1995 - 08/1998	1
11312 - GASKET, FRONT END PLATE
11312-70014	1G#..GS151	08/1995 - 08/1998	1
11312-70020	1G#..GS151	08/1998 - 09/1999	1
11312-70020	1G#..GS151	09/1999 - 12/2999	1
11322A - COVER, TIMING BELT, NO.1
11302-70040	1GFE..GS151	08/1995 - 08/1998	1
11302-70030	1GFE..GS151	08/1998 - 09/1999	1
11302-70030	1GFE..GS151	09/1999 - 12/2999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70030	1GFE..GS151	08/1995 - 08/1998	1
11328-70050	1GFE..GS151	08/1998 - 09/1999	1
11328-70050	1GFE..GS151	09/1999 - 12/2999	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010	1G#..GS151	09/1999 - 12/2999	1
11354-70010	1G#..GS151	08/1995 - 09/1999	1
11355 - PLATE, REAR END
11355-70020	1G#..GS151..4FC	08/1995 - 09/1999	1
11355-70020	1G#..GS151	09/1999 - 12/2999	1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307	1G#..GS151	08/1995 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010	1G#..GS151	08/1995 - 09/1999	1
11381-70010	1G#..GS151	09/1999 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-75007	1G#..GS151	09/1999 - 12/2999	1
90311-75007	1G#..GS151	08/1995 - 09/1999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011	1G#..GS151	08/1995 - 09/1999	1
11383-70011	1G#..GS151	09/1999 - 12/2999	1
11385A - SEAL, OIL(FOR CAMSHAFT)
90311-35013	1GFE..GS151 ARS	08/1995 - 07/1997	1
90311-35035	1GFE..GS151	07/1997 - 08/1998	1
90311-35022	1GFE..GS151 NOK	08/1995 - 07/1997	1
Common parts
90105-06032
90119-06114
90119-08652
90119-08729
90119-08B68
90119-08B69
90119-08B70
90119-10557
90119-10887
90179-08150
90179-10141
90180-06013
91511-40616
91511-60635
Linked diagrams
1601

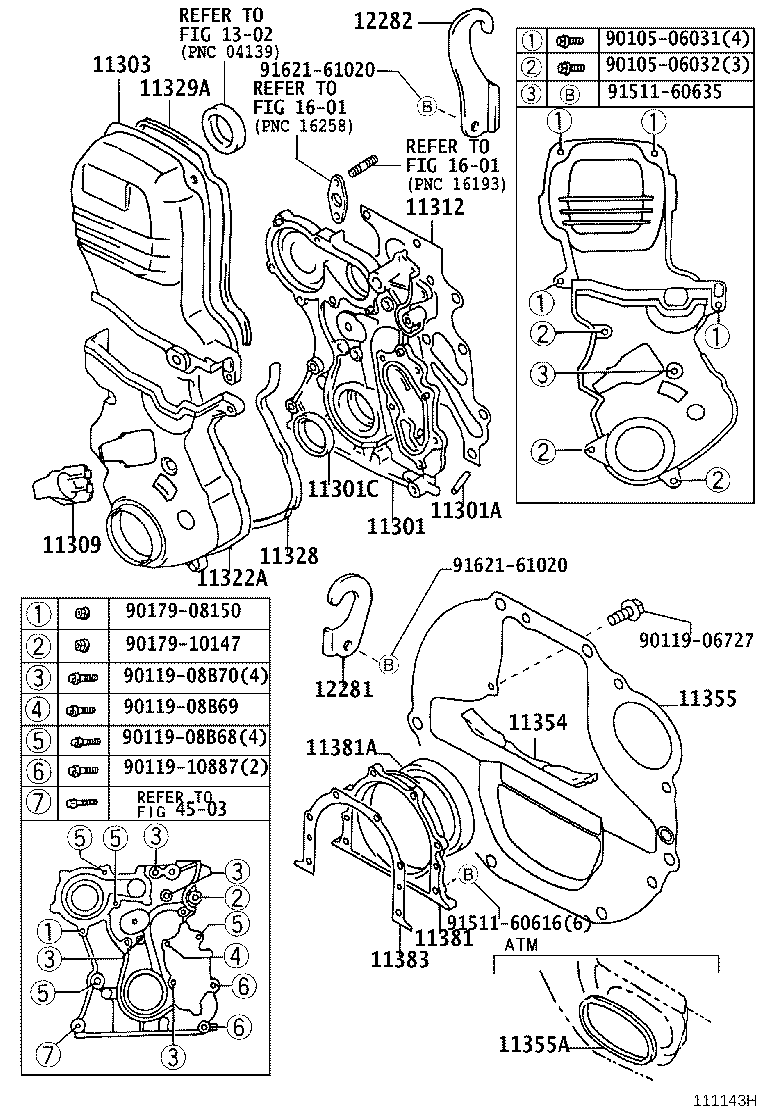

(9808- )1GFE

Click highlighted areas on diagram

Part #	Description	Period	Qty
11301 - CASE SUB-ASSY, TIMING GEAR
11311-79035	1GFE..GS151	08/1995 - 08/1998	1
11311-70060	1GFE..GS151	08/1998 - 09/1999	1
11311-70060	1GFE..GS151	09/1999 - 12/2999	1
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-06058	1GFE..GS151 長さ=38,外径=5.93−6.0	09/1999 - 12/2999	1
90250-06058	1GFE..GS151 長さ=38,外径=5.93−6.0	08/1998 - 09/1999	1
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-45003	1GFE..GS151	08/1995 - 08/1998	1
90311-45015	1GFE..GS151	08/1998 - 12/2999	1
11303 - COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY
11303-70020	1GFE..GS151	08/1995 - 08/1998	1
11303-70030	1GFE..GS151	09/1999 - 12/2999	1
11303-70030	1GFE..GS151	08/1998 - 09/1999	1
11309 - COVER SUB-ASSY, TIMING BELT, NO.4
11325-70020	1GFE..GS151	08/1998 - 09/1999	1
11325-70020	1GFE..GS151	09/1999 - 12/2999	1
11325-88300	1GFE..GS151	08/1995 - 08/1998	1
11312 - GASKET, FRONT END PLATE
11312-70014	1G#..GS151	08/1995 - 08/1998	1
11312-70020	1G#..GS151	08/1998 - 09/1999	1
11312-70020	1G#..GS151	09/1999 - 12/2999	1
11322A - COVER, TIMING BELT, NO.1
11302-70040	1GFE..GS151	08/1995 - 08/1998	1
11302-70030	1GFE..GS151	08/1998 - 09/1999	1
11302-70030	1GFE..GS151	09/1999 - 12/2999	1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-70030	1GFE..GS151	08/1995 - 08/1998	1
11328-70050	1GFE..GS151	08/1998 - 09/1999	1
11328-70050	1GFE..GS151	09/1999 - 12/2999	1
11329A - GASKET, TIMING BELT OR CHAIN COVER, NO.2
11329-70030	1GFE..GS151	08/1998 - 09/1999	1
11329-70030	1GFE..GS151	09/1999 - 12/2999	1
11354 - SEAL, FLYWHEEL HOUSING DUST
11354-70010	1G#..GS151	09/1999 - 12/2999	1
11354-70010	1G#..GS151	08/1995 - 09/1999	1
11355 - PLATE, REAR END
11355-70020	1G#..GS151..4FC	08/1995 - 09/1999	1
11355-70020	1G#..GS151	09/1999 - 12/2999	1
11355A - PLUG, HOLE(FOR REAR END PLATE)
90950-01307	1G#..GS151	08/1995 - 12/2999	1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-70010	1G#..GS151	08/1995 - 09/1999	1
11381-70010	1G#..GS151	09/1999 - 12/2999	1
11381A - SEAL, ENGINE REAR OIL
90311-75007	1G#..GS151	09/1999 - 12/2999	1
90311-75007	1G#..GS151	08/1995 - 09/1999	1
11383 - GASKET, ENGINE REAR OIL SEAL RETAINER
11383-70011	1G#..GS151	08/1995 - 09/1999	1
11383-70011	1G#..GS151	09/1999 - 12/2999	1
12281 - HANGER, ENGINE, NO.1
12281-70050	1GFE..GS151	08/1998 - 09/1999	1
12281-70050	1GFE..GS151	09/1999 - 12/2999	1
12282 - HANGER, ENGINE, NO.2
12282-70020	1GFE..GS151	08/1998 - 09/1999	1
12282-70020	1GFE..GS151	09/1999 - 12/2999	1
Common parts
90105-06031
90105-06032
90119-06727
90119-08B68
90119-08B69
90119-08B70
90119-10887
90179-08150
90179-10147
91511-60616
91511-60635
91621-61020
Linked diagrams
1302
1601
4503

GS151-AEPJK (1995)

(9508-9808)1GFE

(9808- )1GFE
