GS151-AEPJK (1995)
Toyota Crown/Crown Majesta

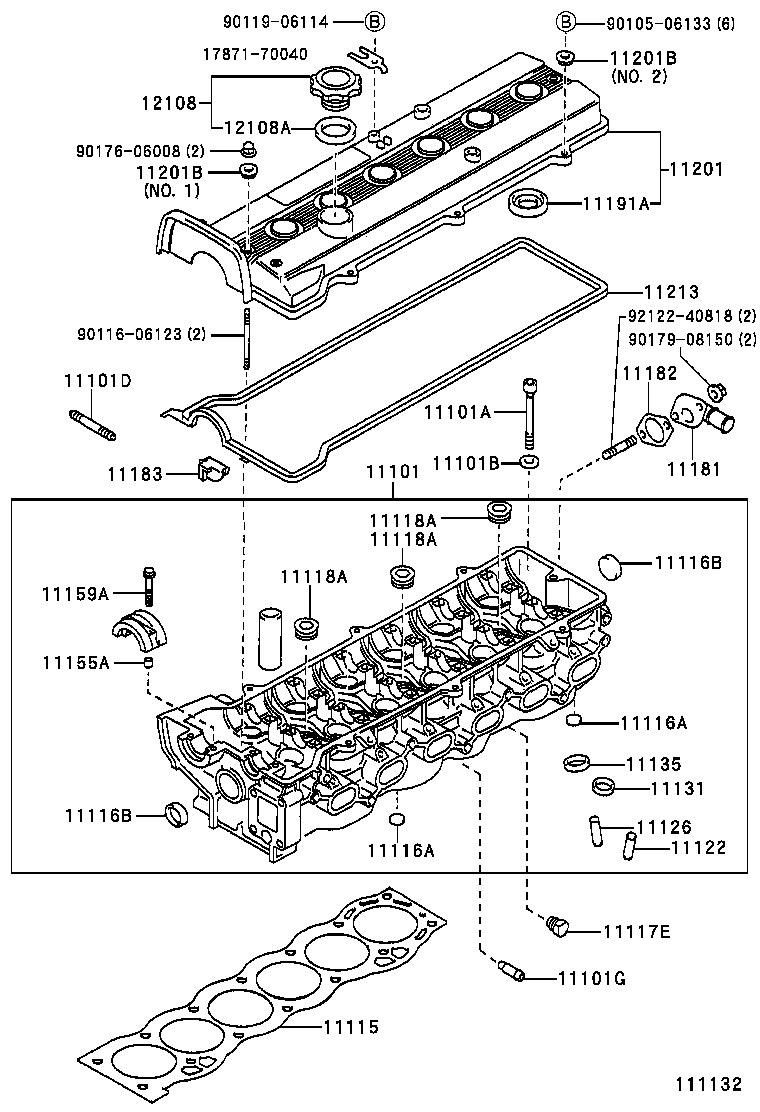

(9508-9808)1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-79245 |
1GFE..GS151 |
1 | ||
| 11101-79045 |
1GFE..GS151 |
1 | ||
| 11101-79245 |
1GFE..GS151 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02133 |
1G#..GS151 |
14 | ||
| 90910-02133 |
1G#..GS151 |
14 | ||
| 90110-10003 |
1G#..GS151 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10050 |
1G#..GS151 |
14 | ||
| 90201-10050 |
1G#..GS151 |
14 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90116-08304 |
1GFE..GS151 |
2 | ||
| 90116-08304 |
1GFE..GS151 |
2 | ||
| 11101G - UNION(FOR CYLINDER HEAD) | ||||
| 90406-08011 |
1G#..GS151 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-70060 |
1GFE..GS151 |
1 | ||
| 11115-70050 |
1GFE..GS151 |
1 | ||
| 11115-70061 |
1GFE..GS151 |
1 | ||
| 11115-70061 |
1GFE..GS151 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-43000 |
1GFE..GS151 |
2 | ||
| 11116B - PLUG, TIGHT, NO.2 | ||||
| 96411-43000 |
1GFE..GS151 |
2 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-16094 |
1GFE..GS151 |
1 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-16010 |
1GFE..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11123-16010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-70030 |
1G#..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11127-70030 |
1G#..GS151 O/S 0.05 |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-70020 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11131-70030 |
1GFE..GS151 STD |
12 | ||
| 11131-70020 |
1GFE..GS151 STD |
12 | ||
| 11132-70030 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11132-70030 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11131-70030 |
1GFE..GS151 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-70021 |
1G#..GS151 O/S 0.03 |
12 | ||
| 11135-70021 |
1G#..GS151 STD |
12 | ||
| 11136-70040 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11135-70040 |
1GFE..GS151 STD |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10006 |
1GFE..GS151 |
2 | ||
| 90253-10006 |
1GFE..GS151 |
2 | ||
| 90253-10006 |
1G#..GS151 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 90119-07009 |
1G#..GS151 |
28 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-70022 |
1GFE..GS151 |
1 | ||
| 11181-70050 |
1GFE..GS151 |
1 | ||
| 11181-70050 |
1GFE..GS151 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-70021 |
1GFE..GS151 |
1 | ||
| 11182-70021 |
1GFE..GS151 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-70020 |
1GFE..GS151 |
1 | ||
| 11183-70020 |
1GFE..GS151 |
1 | ||
| 11183-70010 |
1GFE..GS151 |
1 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-70010 |
1GFE..GS151 |
6 | ||
| 11193-70010 |
1GFE..GS151 |
6 | ||
| 11193-15010 |
1GFE..GS151 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11201-70051 |
1GFE..GS151 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1GFE..GS151 NO.2 |
6 | ||
| 90210-08020 |
1GFE..GS151 NO.1 |
2 | ||
| 11201B - WASHER, SEAL(FOR CYLINDER HEAD COVER) | ||||
| 90210-07001 |
1GFE..GS151 NO.2 |
6 | ||
| 90210-08020 |
1GFE..GS151 NO.1 |
2 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-70020 |
1GFE..GS151 |
1 | ||
| 11213-70040 |
1GFE..GS151 |
1 | ||
| 11213-70040 |
1GFE..GS151 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1GFE..GS151 |
1 | ||
| 12180-55010 |
1GFE..GS151 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1G#..GS151 |
1 | ||
| 90430-37140 |
1G#..GS151 |
1 | ||
| Common parts | ||||
| 17871-70040 | ||||
| 90105-06133 | ||||
| 90116-06123 | ||||
| 90119-06114 | ||||
| 90176-06008 | ||||
| 90179-08150 | ||||
| 92122-40818 | ||||

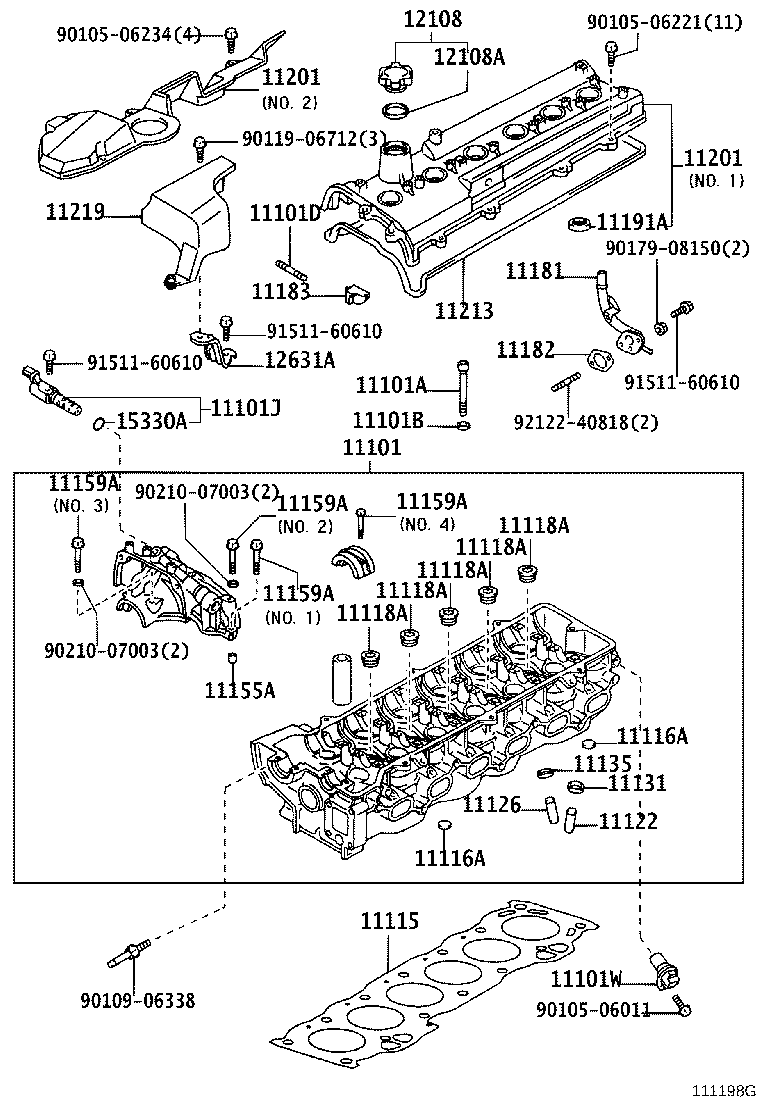

(9808- )1GFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-79245 |
1GFE..GS151 |
1 | ||
| 11101-79045 |
1GFE..GS151 |
1 | ||
| 11101-79245 |
1GFE..GS151 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02133 |
1G#..GS151 |
14 | ||
| 90910-02133 |
1G#..GS151 |
14 | ||
| 90110-10003 |
1G#..GS151 |
14 | ||
| 11101B - WASHER, PLATE(FOR CYLINDER HEAD SET) | ||||
| 90201-10050 |
1G#..GS151 |
14 | ||
| 90201-10050 |
1G#..GS151 |
14 | ||
| 11101D - BOLT, STUD(FOR WATER OUTLET) | ||||
| 90116-08304 |
1GFE..GS151 |
2 | ||
| 90116-08304 |
1GFE..GS151 |
2 | ||
| 11101J - VALVE ASSY, CAMSHAFT TIMING OIL CONTROL | ||||
| 15330-70010 |
1GFE..GS151 |
1 | ||
| 15330-70010 |
1GFE..GS151 |
1 | ||
| 11101W - SENSOR, CRANK POSITION, NO.1 | ||||
| 90919-05026 |
1GFE..GS151 |
1 | ||
| 90919-05026 |
1GFE..GS151 |
1 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-70060 |
1GFE..GS151 |
1 | ||
| 11115-70050 |
1GFE..GS151 |
1 | ||
| 11115-70061 |
1GFE..GS151 |
1 | ||
| 11115-70061 |
1GFE..GS151 |
1 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 11116A - PLUG, TIGHT, NO.1 | ||||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 96411-41800 |
1GFE..GS151 |
2 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11118A - PLUG, STRAIGHT, NO.1 | ||||
| 90341-27003 |
1GFE..GS151 |
3 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 90341-27003 |
1GFE..GS151 |
5 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11122-16010 |
1GFE..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11123-16010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11126-70030 |
1G#..GS151 STD |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11122-21010 |
1GFE..GS151 STD |
12 | ||
| 11127-70030 |
1G#..GS151 O/S 0.05 |
12 | ||
| 11123-21010 |
1GFE..GS151 O/S 0.05 |
12 | ||
| 11131 - SEAT, INTAKE VALVE | ||||
| 11132-70020 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11131-70030 |
1GFE..GS151 STD |
12 | ||
| 11131-70020 |
1GFE..GS151 STD |
12 | ||
| 11132-70030 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11132-70030 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11131-70030 |
1GFE..GS151 STD |
12 | ||
| 11135 - SEAT, EXHAUST VALVE | ||||
| 11136-70021 |
1G#..GS151 O/S 0.03 |
12 | ||
| 11135-70021 |
1G#..GS151 STD |
12 | ||
| 11136-70040 |
1GFE..GS151 O/S 0.03 |
12 | ||
| 11135-70040 |
1GFE..GS151 STD |
12 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-10006 |
1GFE..GS151 |
2 | ||
| 90253-10006 |
1GFE..GS151 |
2 | ||
| 90253-10006 |
1G#..GS151 |
4 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1G#..GS151 |
28 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1G#..GS151 |
28 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1G#..GS151 |
28 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07009 |
1G#..GS151 |
28 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90119-07009 |
1GFE..GS151 NO.4 |
24 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 90105-07006 |
1GFE..GS151 NO.3 |
2 | ||
| 90105-07004 |
1GFE..GS151 NO.2 |
2 | ||
| 90105-06221 |
1GFE..GS151 NO.1 |
2 | ||
| 11181 - PLATE, CYLINDER HEAD, REAR | ||||
| 11181-70022 |
1GFE..GS151 |
1 | ||
| 11181-70050 |
1GFE..GS151 |
1 | ||
| 11181-70050 |
1GFE..GS151 |
1 | ||
| 11182 - GASKET, CYLINDER HEAD REAR PLATE | ||||
| 11182-70021 |
1GFE..GS151 |
1 | ||
| 11182-70021 |
1GFE..GS151 |
1 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-70020 |
1GFE..GS151 |
1 | ||
| 11183-70020 |
1GFE..GS151 |
1 | ||
| 11183-70010 |
1GFE..GS151 |
1 | ||
| 11191A - GASKET(FOR SPARK PLUG TUBE) | ||||
| 11193-70010 |
1GFE..GS151 |
6 | ||
| 11193-70010 |
1GFE..GS151 |
6 | ||
| 11193-15010 |
1GFE..GS151 |
6 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201-70051 |
1GFE..GS151 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201-70051 |
1GFE..GS151 |
1 | ||
| 11202-70030 |
1GFE..GS151 NO.2 |
1 | ||
| 11201-70080 |
1GFE..GS151 NO.1 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-70020 |
1GFE..GS151 |
1 | ||
| 11213-70040 |
1GFE..GS151 |
1 | ||
| 11213-70040 |
1GFE..GS151 |
1 | ||
| 11219 - COVER, CYLINDER HEAD, NO.3 | ||||
| 11203-70010 |
1GFE..GS151 |
1 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-55010 |
1GFE..GS151 |
1 | ||
| 12180-55010 |
1GFE..GS151 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
1G#..GS151 |
1 | ||
| 90430-37140 |
1G#..GS151 |
1 | ||
| 12631A - BRACKET, ENGINE COVER | ||||
| 12631-70010 |
1GFE..GS151 |
1 | ||
| 12631-70010 |
1GFE..GS151 |
1 | ||
| 15330A - RING, O(FOR CAM TIMING OIL CONTROL VALVE) | ||||
| 90099-14137 |
1GFE..GS151 |
1 | ||
| 90099-14137 |
1GFE..GS151 |
1 | ||
| Common parts | ||||
| 90105-06011 | ||||
| 90105-06221 | ||||
| 90105-06234 | ||||
| 90109-06338 | ||||
| 90119-06712 | ||||
| 90179-08150 | ||||
| 90210-07003 | ||||
| 91511-60610 | ||||
| 92122-40818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
