GS151-AEPFK (1995)
Toyota Crown/Crown Majesta

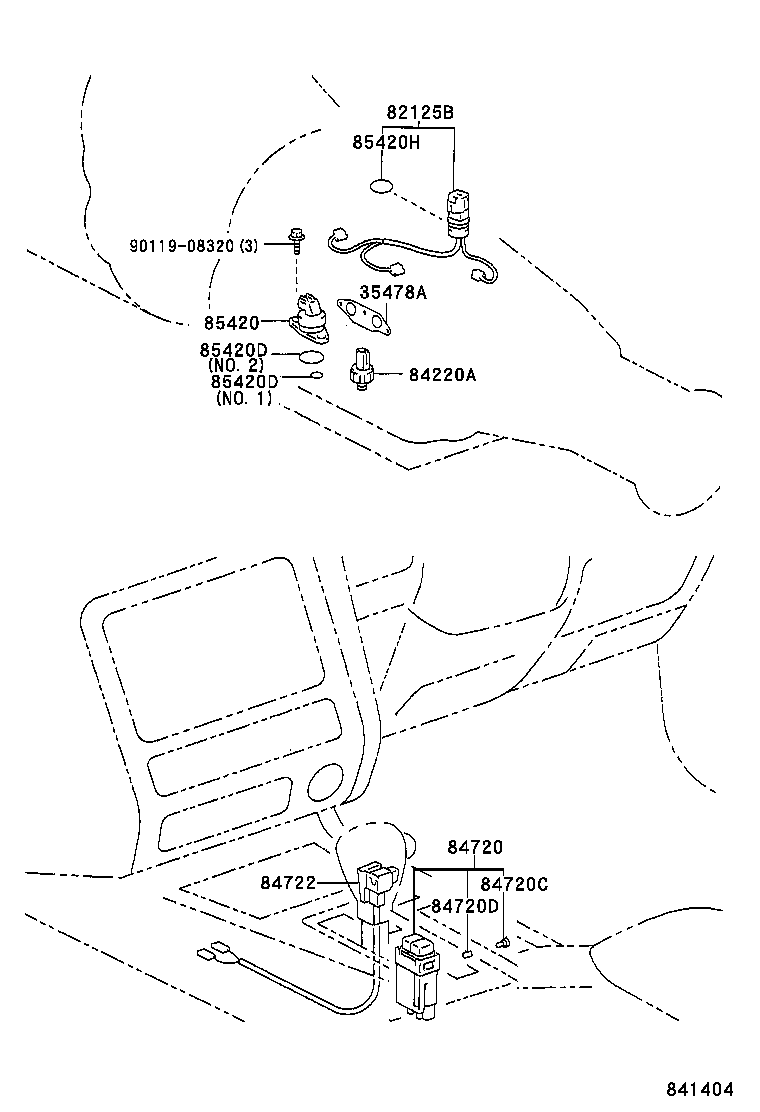

(9508-9707)GS151 ; (9707-9808)LPGTE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
GS151..4FC..HTWC |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
GS151..4FC..HTWC |
1 | ||
| 82125-22250 |
GS151..4FC..HTWC |
1 | ||
| 84220A - SWITCH ASSY, TRANSMISSION POSITION INDICATOR | ||||
| 83531-12010 |
GS151..4FC..HTWC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-30210 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10780 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) 14V 0.7W |
1 | ||
| 84720D - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10730 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS15#..ATM DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30160 |
GS151..4FC |
1 | ||
| 85420-30050 |
GS151..4FC..HTWC NO.1 |
1 | ||
| 85420-30070 |
GS151..4FC..HTWC NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS151,JZS15#,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90119-08320 | ||||

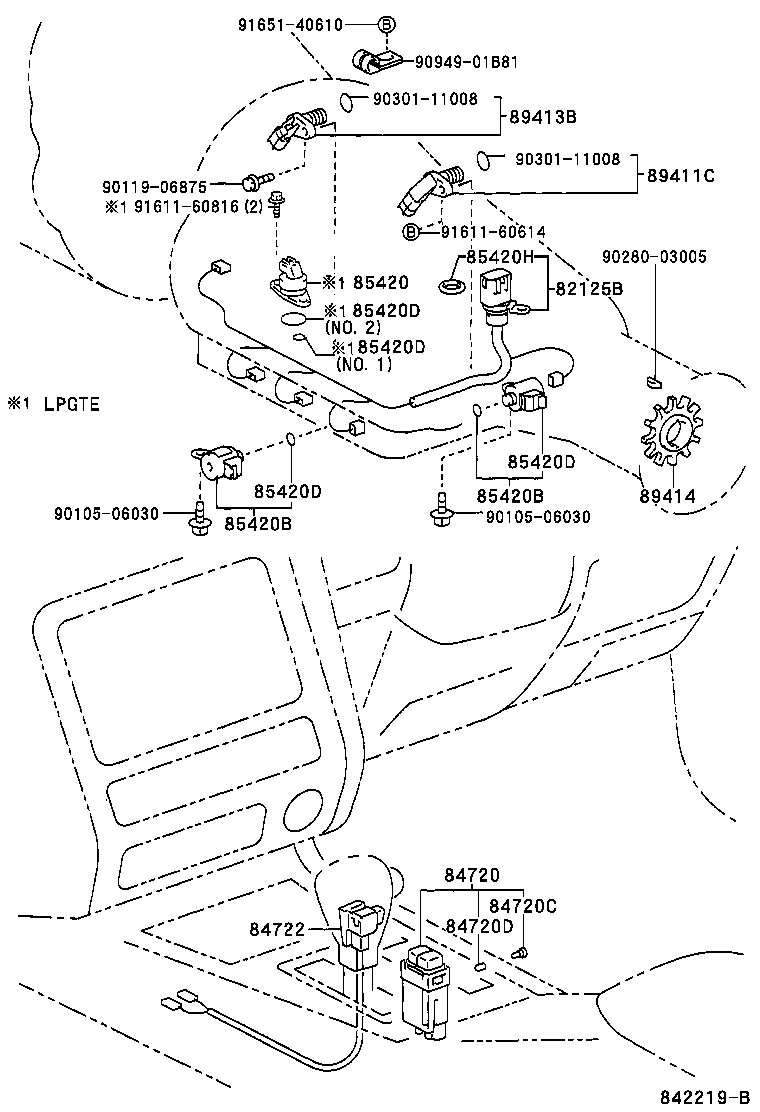

(9808- )GS151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
GS151..4FC..HTWC |
1 | ||
| 82125-22250 |
GS151..4FC..HTWC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-30210 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10780 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) 14V 0.7W |
1 | ||
| 84720D - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10730 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS15#..ATM DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30160 |
GS151..4FC |
1 | ||
| 85420-30050 |
GS151..4FC..HTWC NO.1 |
1 | ||
| 85420-30070 |
GS151..4FC..HTWC NO.2 |
1 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22130 |
GS151..4FC..HTWC |
2 | ||
| 85420B - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-22130 |
GS151..4FC..HTWC |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS151,JZS15#,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
1 | ||
| 89411C - SENSOR, SPEED | ||||
| 89411-50010 |
GS151,JZS157,LS151,UZS155..4FC..(HTWC,TDE,TWC) |
1 | ||
| 89413B - SENSOR, TRANSMISSION REVOLUTION | ||||
| 89413-22010 |
GS151..4FC..HTWC |
1 | ||
| 89414 - ROTOR, SENSOR | ||||
| 89414-22040 |
GS151..4FC..HTWC |
1 | ||
| 89414-22020 |
GS151..4FC..HTWC |
1 | ||
| 89414-22040 |
GS151..HTWC |
1 | ||
| Common parts | ||||
| 90105-06030 | ||||
| 90119-06875 | ||||
| 90280-03005 | ||||
| 90301-11008 | ||||
| 90949-01B81 | ||||
| 91611-60614 | ||||
| 91611-60816 | ||||
| 91651-40610 | ||||

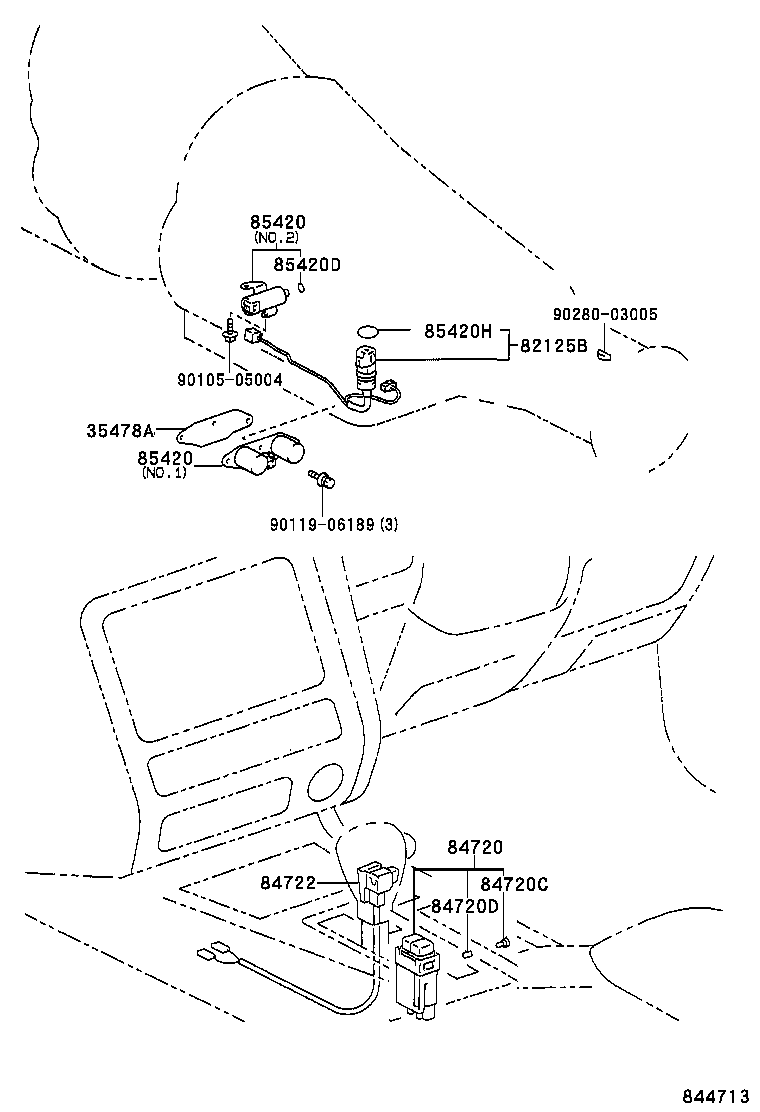

(9707-9808)GS151..HTWC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35478A - GASKET, SHIFT CONTROL SOLENOID | ||||
| 35478-30010 |
GS151..4FC..HTWC |
1 | ||
| 82125B - WIRE, TRANSMISSION | ||||
| 82125-28010 |
GS151..4FC..HTWC |
1 | ||
| 82125-22250 |
GS151..4FC..HTWC |
1 | ||
| 84720 - SWITCH ASSY, PATTERN SELECT | ||||
| 84720-30210 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84720C - BULB(FOR PATTERN SELECT SWITCH) | ||||
| 84999-10780 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) 14V 0.7W |
1 | ||
| 84720D - CAP, PATTERN SELECT SWITCH | ||||
| 84998-10730 |
GS151,JZS151,155,157,LS151,UZS151,157..ATM..(HTWC,TDE,TWC) |
1 | ||
| 84722 - SWITCH, TRANSMISSION CONTROL | ||||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS15#..ATM DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190B1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) DK.BLUE GRAY,TRIM1# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS15#..ATM ANTELOPE,TRIM4# |
1 | ||
| 84722-30190E1 |
GS151,JZS15#,LS151,UZS155..4FC..(A,C,E,ROY,ROYEX,ROYG,SALEX,SPDLX) ANTELOPE,TRIM4# |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30160 |
GS151..4FC |
1 | ||
| 85420-30050 |
GS151..4FC..HTWC NO.1 |
1 | ||
| 85420-30070 |
GS151..4FC..HTWC NO.2 |
1 | ||
| 85420 - SOLENOID ASSY, TRANSMISSION | ||||
| 85420-30160 |
GS151..4FC |
1 | ||
| 85420-30050 |
GS151..4FC..HTWC NO.1 |
1 | ||
| 85420-30070 |
GS151..4FC..HTWC NO.2 |
1 | ||
| 85420D - RING, O (FOR TRANSMISSION SOLENOID) | ||||
| 90301-11001 |
GS151..4FC NO.1 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
2 | ||
| 90301-23001 |
GS151..4FC NO.2 |
1 | ||
| 90301-06004 |
GS151,JZS151,155,157,UZS15#..ATM..(HTWC,TWC) |
2 | ||
| 85420H - RING, O(FOR SPEED SENSOR) | ||||
| 96721-24018 |
GS151,JZS15#,LS151,UZS15#..ATM..(HTWC,TDE,TWC) |
1 | ||
| Common parts | ||||
| 90105-05004 | ||||
| 90119-06189 | ||||
| 90280-03005 | ||||
