GS151-AEPFA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9808- )GS151

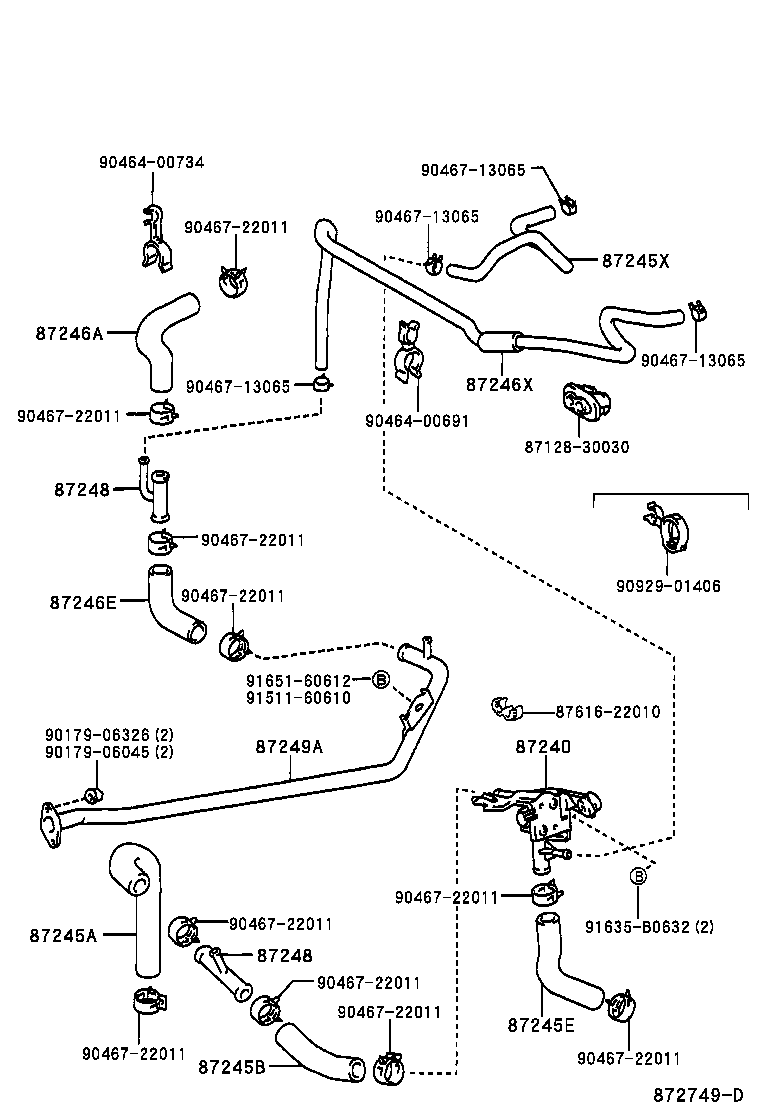

Click highlighted areas on diagram

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 8712830030 87240 87245A 87245B 87245E 87245X 87246A 87246E 87246X 87248 87248 87249A 8761622010 9017906045 9017906326 9046400691 9046400734 9046713065 9046713065 9046713065 9046713065 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9092901406 9151160610 91635B0632 9165160612
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-30650

GS151,JZS151,153,LS151

 1
87240-30650

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

 1
87240-30660

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87240-30660

GS151,JZS151,153,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3F050

GS151..LPGTE

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F110

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F100

GS151,JZS151,153,LS151

 1
87245-3F110

GS151,JZS151,153,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F100

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

 1
87245X - HOSE, HEATER WATER
87242-30050

JZS153..HT;JZS153..SALEX;GS151,JZS151,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87242-30050

JZS153..HT;JZS153..SALEX;GS151,JZS151,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F190

GS151..LPGTE

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F060

GS151..LPGTE

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3F200

GS151..LPGTE

 1
87246X - HOSE, HEATER WATER
87246-30250

GS151..LPGTE

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246-30250

GS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87248 - PIPE SUB-ASSY, WATER
87248-30400

GS151,LS151

NO.1

 1
87248-30400

GS151..LPGTE

 1
87248-30400

GS151,JZS157

NO.1

 1
87248 - PIPE SUB-ASSY, WATER
87248-30400

GS151,LS151

NO.1

 1
87248-30400

GS151..LPGTE

 1
87248-30400

GS151,JZS157

NO.1

 1
Common parts
87128-30030
87616-22010
90179-06045
90179-06326
90464-00691
90464-00734
90467-13065
90467-22011
90929-01406
91511-60610
91635-B0632
91651-60612

(9508-9808)GS151

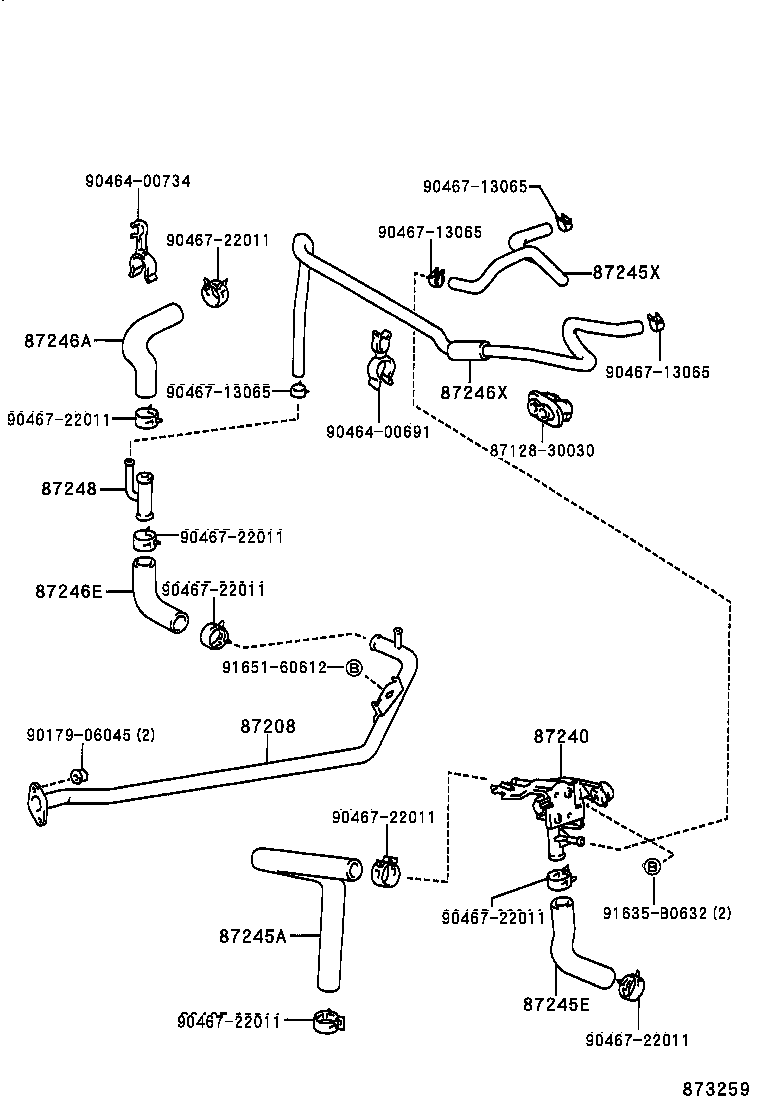

Click highlighted areas on diagram

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙ ﾋ-ﾀ)

diagram 8712830030 87208 87240 87245A 87245E 87245X 87246A 87246E 87246X 87248 9017906045 9046400691 9046400734 9046713065 9046713065 9046713065 9046713065 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 9046722011 91635B0632 9165160612
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-22272

GS151..LPGTE

 1
87240 - VALVE ASSY, HEATER WATER
87240-30650

GS151,JZS151,153,LS151

 1
87240-30650

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

 1
87240-30660

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87240-30660

GS151,JZS151,153,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245A - HOSE, HEATER WATER, INLET A
87245-3F050

GS151..LPGTE

 1
87245E - HOSE, HEATER WATER, INLET E
87245-3F110

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F100

GS151,JZS151,153,LS151

 1
87245-3F110

GS151,JZS151,153,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F100

GS151,JZS151,153,LS151..LPGTE,TDE,TWC

 1
87245X - HOSE, HEATER WATER
87242-30050

JZS153..HT;JZS153..SALEX;GS151,JZS151,LS151..LPGTE,TDE,TWC

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87242-30050

JZS153..HT;JZS153..SALEX;GS151,JZS151,LS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-3F190

GS151..LPGTE

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87245-3F060

GS151..LPGTE

 1
87246E - HOSE, HEATER WATER, OUTLET E
87245-3F200

GS151..LPGTE

 1
87246X - HOSE, HEATER WATER
87246-30250

GS151..LPGTE

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87246-30250

GS151

ｱﾘ(ｵﾝｽｲﾊﾟﾈﾙﾋ-ﾀ)

 1
87248 - PIPE SUB-ASSY, WATER
87248-30400

GS151,LS151

NO.1

 1
87248-30400

GS151..LPGTE

 1
87248-30400

GS151,JZS157

NO.1

 1
Common parts
87128-30030
90179-06045
90464-00691
90464-00734
90467-13065
90467-22011
91635-B0632
91651-60612
