GS151-AEPFA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

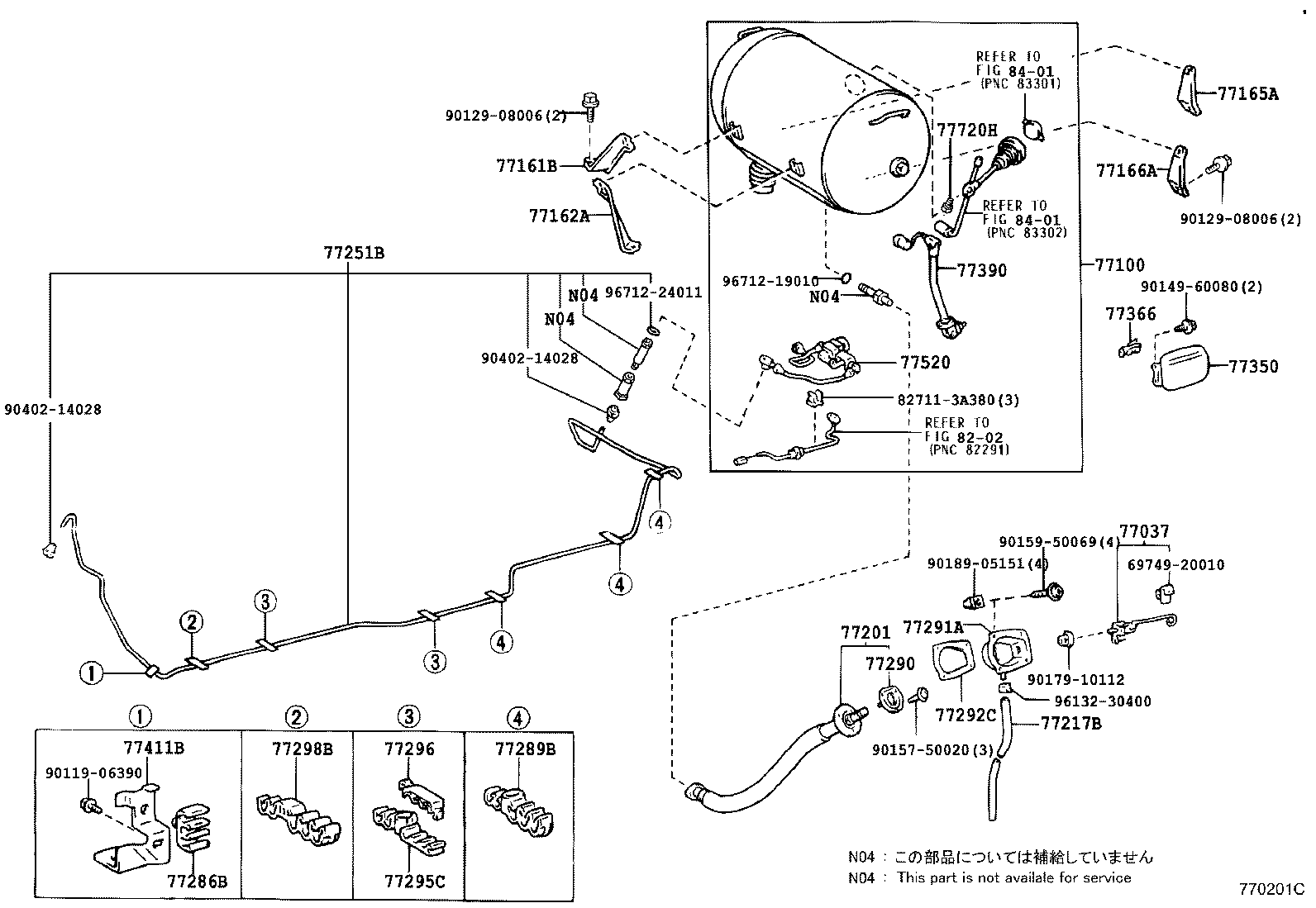

ILLUST NO. 1 OF 2(9512- )LPGTE

Click highlighted areas on diagram

diagram 6974920010 77037 77100 77161B 77162A 77165A 77166A 77201 77217B 77251B 77286B 77289B 77290 77291A 77292C 77295C 77296 77298B 77350 77366 77390 77411B 77520 77720H 8202 827113A380 8401 8401 9011906390 9012908006 9012908006 9014960080 9015750020 9015950069 9017910112 9018905151 9040214028 9040214028 9613230400 9671219010 9671224011
Part # Description Qty Price
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-30030

GS151..LPGTE

 1
77100 - TANK ASSY, FUEL
77001-30480

GS151..LPGTE

 1
77001-30481

GS151..LPGTE

 1
77161B - BRACKET, FUEL TANK MOUNTING, FRONT RH
77161-30080

GS151..LPGTE

 1
77162A - BRACKET, FUEL TANK MOUNTING, FRONT LH
77162-30030

GS151..LPGTE

 1
77165A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 RH
77165-30050

GS151..LPGTE

 1
77166A - BRACKET, FUEL TANK MOUNTING, REAR NO.2 LH
77166-30040

GS151..LPGTE

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-30330

GS151..LPGTE

 1
77217B - HOSE, FUEL TANK INLET
77217-30090

GS151..LPGTE

 1
77251B - TUBE, FUEL MAIN
77251-30310

GS151..LPGTE

 1
77251-30311

GS151..LPGTE

 1
77286B - CLAMP, FUEL TUBE W/GROMMET, NO.2
77286-30060

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
77289B - CLAMP, FUEL TUBE, NO.3
77289-30040

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 3
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-30050

GS151..LPGTE

 1
77291A - SHIELD, FUEL TANK FILLER PIPE
77291-30040

GS151..LPGTE

 1
77292C - SHIELD, FUEL TANK FILLER PIPE, NO.2
77292-30030

GS151..LPGTE

 1
77295C - GROMMET, FUEL TUBE
77295-30040

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
77296 - PLATE, FUEL TUBE GROMMET SUPPORT
77296-30060

GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
77298B - CLAMP, FUEL TUBE, NO.4
77298-30090

GS151..LPGTE

 2
77350 - LID ASSY, FUEL FILLER OPENING
77350-30300

GS151,JZS151,153,155,LS151..SED

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-30020

GS151,JZS151,153,155,LS151..SED

 1
77390 - VALVE ASSY, FUEL TANK INLET
77390-30060

GS151..LPGTE

 1
77411B - SUPPORT, FUEL TUBE GROMMET, NO.1
77411-22020

GS151,JZS15#..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
77520 - VALVE ASSY, SOLENOID LPG EMERGENCY
77203-30060

GS151..LPGTE

 1
77720H - VALVE ASSY, FUEL OUTLET
77720-30020

GS151..LPGTE

 1
Common parts
69749-20010
82711-3A380
90119-06390
90129-08006
90149-60080
90157-50020
90159-50069
90179-10112
90189-05151
90402-14028
96132-30400
96712-19010
96712-24011
Linked diagrams
8202
8401
