GS151-AEPFA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9512- )SED

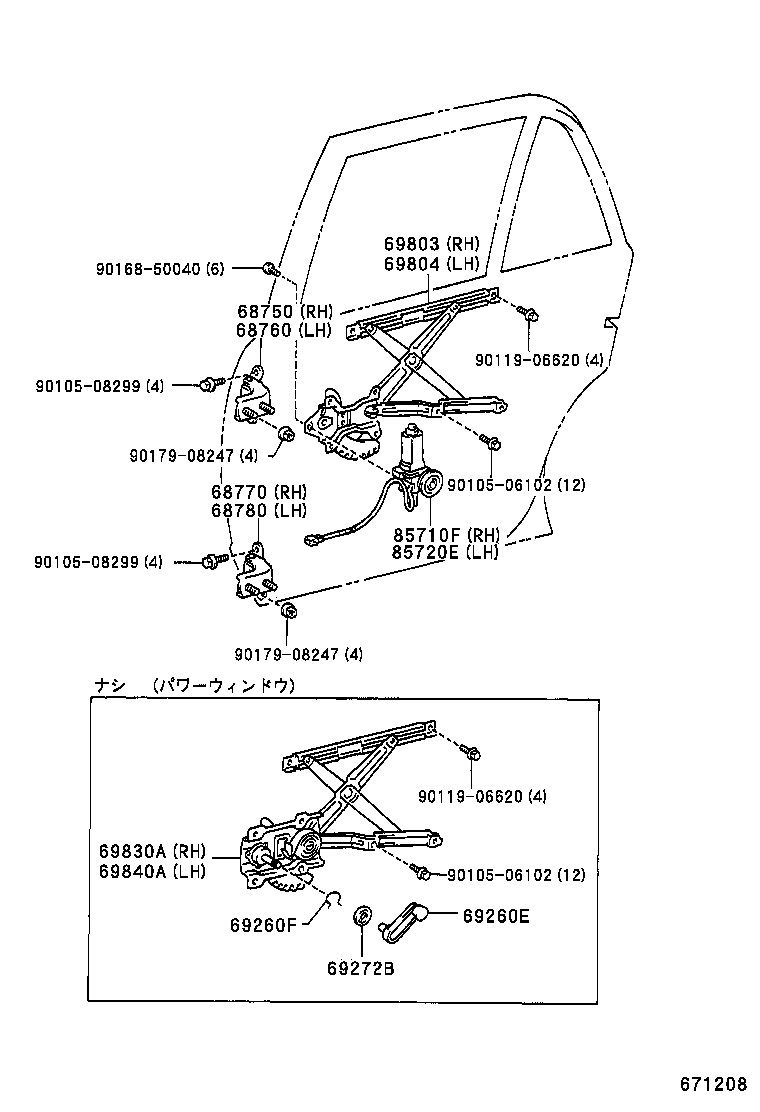

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69260E 69260F 69272B 69803 69804 69830A 69840A 85710F 85720E 9010506102 9010506102 9010508299 9010508299 9011906620 9011906620 9016850040 9017908247 9017908247
Part # Description Qty Price
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68770-32070

GS151,JZS15#,LS151..SED

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68780-32060

GS151,JZS15#,LS151..SED

 1
Common parts
90105-06102
90105-08299
90119-06620
90168-50040
90179-08247
