GS151-AEPFA (1995)
Toyota Crown/Crown Majesta
Production
Dec 1995
-
Feb 2001
Engine
1GGPE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9512-0102)1GGPE

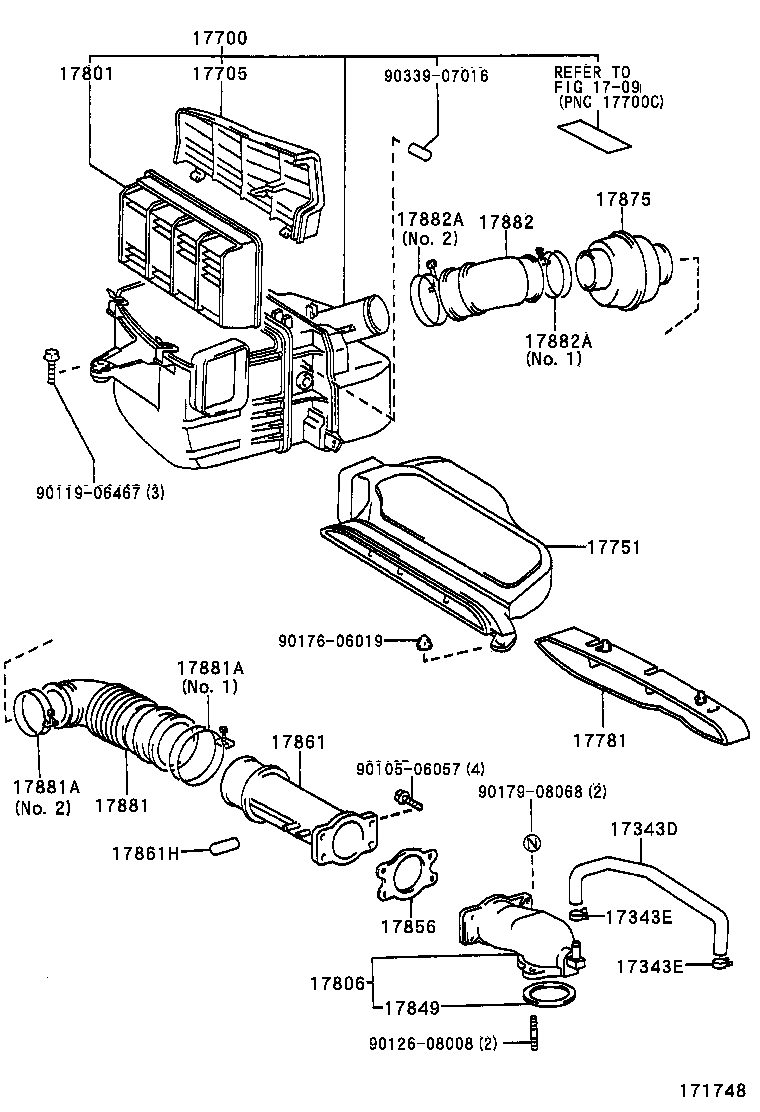

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17343D - HOSE, AIR, NO.3 | ||||
| 17343-70100 |
1GGPE..GS151 |
1 | ||
| 17343-70101 |
1GGPE..GS151 |
1 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-17126 |
1GGPE..GS151 |
2 | ||
| 17343E - CLAMP, HOSE(FOR AIR HOSE, NO.3) | ||||
| 90467-17126 |
1GGPE..GS151 |
2 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-70160 |
1GGPE..GS151 |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-46150 |
1G#..GS151 |
1 | ||
| 17705-46150 |
1GGPE..GS151 |
1 | ||
| 17751 - INLET, AIR CLEANER, NO.1 | ||||
| 17751-46060 |
1GGPE..GS151 |
1 | ||
| 17751-46060 |
1G#..GS151 |
1 | ||
| 17781 - SEAL, AIR CLEANER INLET | ||||
| 17781-70010 |
1G#..GS151 |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-70040 |
1GGPE..GS151 |
1 | ||
| 17806 - PIPE SUB-ASSY, AIR CLEANER, NO.2 | ||||
| 17806-70040 |
1GGPE..GS151 |
1 | ||
| 17849 - GASKET, INTAKE AIR CONNECTOR | ||||
| 17849-70030 |
1GGPE..GS151 |
1 | ||
| 17856 - GASKET, AIR INTAKE FLANGE | ||||
| 17856-88300 |
1GGPE..GS151 |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17861-70060 |
1GGPE..GS151 |
1 | ||
| 17861H - PLUG(FOR INTAKE AIR CONNECTOR) | ||||
| 90339-11002 |
1GGPE..GS151 |
1 | ||
| 17875 - PIPE, INTAKE AIR CONNECTOR | ||||
| 17875-70170 |
1GGPE..GS151 |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-70260 |
1GGPE..GS151 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1GGPE..GS151 NO.2 |
1 | ||
| 96111-10950 |
1GGPE..GS151 NO.1 |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10830 |
1GGPE..GS151 NO.2 |
1 | ||
| 96111-10950 |
1GGPE..GS151 NO.1 |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-70180 |
1GGPE..GS151 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10880 |
1GGPE..GS151 NO.2 |
1 | ||
| 96111-10830 |
1GGPE..GS151 NO.1 |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10880 |
1GGPE..GS151 NO.2 |
1 | ||
| 96111-10830 |
1GGPE..GS151 NO.1 |
1 | ||
| Common parts | ||||
| 90105-06057 | ||||
| 90119-06467 | ||||
| 90126-08008 | ||||
| 90176-06019 | ||||
| 90179-08068 | ||||
| 90339-07016 | ||||
| Linked diagrams | ||||
| 1709 | ||||
