GS151-AEPFA (1995)

Toyota Crown/Crown Majesta

Production Dec 1995 - Feb 2001
Engine 1GGPE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9508-9808)1G# ; (9808-0102)1GGPE

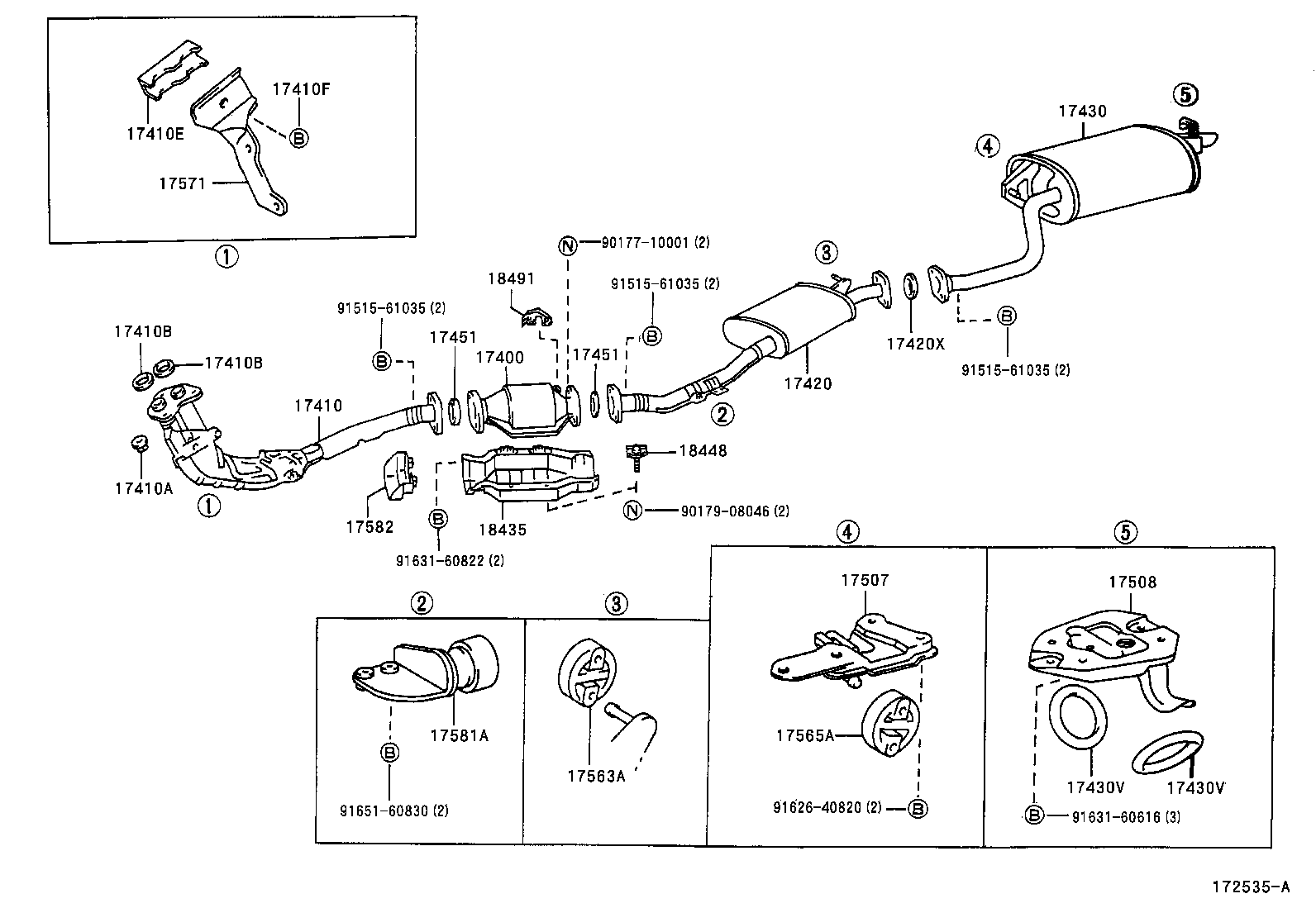

Click highlighted areas on diagram

diagram 17400 17410 17410A 17410B 17410B 17410E 17410F 17420 17420X 17430 17430V 17430V 17451 17451 17507 17508 17563A 17565A 17571 17581A 17582 18435 18448 18491 9017710001 9017908046 9151561035 9151561035 9151561035 9162640820 9163160616 9163160822 9165160830
Part # Description Qty Price
17400 - CONVERTER ASSY, W/CATALYST
18450-70070

1GGPE..GS151

 1
18450-70130

1GGPE..GS151

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-70230

1G#..GS151

 1
17410-70230

1GGPE..GS151

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90179-10070

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151

 3
17410B - GASKET, EXHAUST PIPE
90917-06061

1G#,1JZGE,2JZGE..GS151,JZS151,153,157

 2
17410B - GASKET, EXHAUST PIPE
90917-06061

1G#,1JZGE,2JZGE..GS151,JZS151,153,157

 2
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04060

1GGPE,1JZGE,2JZGE..GS151,JZS151,153,157

 1
90917-04060

1G#,1JZGE..GS151,JZS151,153

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90105-10018

1G#,1JZGE..GS151,JZS151,153

 1
90105-10018

1GGPE,1JZGE,2JZGE..GS151,JZS151,153,157

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-70261

1G#..GS151

 1
17420-70260

1G#..GS151

 1
17420-70261

1GGPE..GS151

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06045

1G#,2LTE..GS151,LS151

 1
90917-06045

1GGPE,2LTE..GS151,LS151

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-70500

1G#..GS151

 1
17430-70500

1GGPE..GS151

 1
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
17430V - BOLT OR RING, EXHAUST TAIL PIPE (FOR REAR)
90301-36002

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 2
17451 - GASKET, EXHAUST PIPE
90917-06041

1G#..GS151

ﾌﾛﾝﾄ

 1
90917-06045

1G#..GS151

ﾘﾔ

 1
90917-06045

1GGPE..GS151

ﾘﾔ

 1
90917-06041

1GGPE..GS151

ﾌﾛﾝﾄ

 1
17451 - GASKET, EXHAUST PIPE
90917-06041

1G#..GS151

ﾌﾛﾝﾄ

 1
90917-06045

1G#..GS151

ﾘﾔ

 1
90917-06045

1GGPE..GS151

ﾘﾔ

 1
90917-06041

1GGPE..GS151

ﾌﾛﾝﾄ

 1
17507 - BRACKET SUB-ASSY, EXHAUST PIPE NO.2 SUPPORT
17507-46030

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17508 - SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3
17508-46020

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17563A - SUPPORT, EXHAUST PIPE, NO.3
17565-74280

1G#,1JZGE,2JZGE,2LTE..GS151,JZS153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17565-74280

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17565-74280

1GGPE,2LTE..GS151,LS151

 1
17565-74280

1G#,2LTE..GS151,LS151

 1
17565-74280

1G#,1JZGE,2LTE..GS151,JZS153,LS151

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-74280

1G#,1JZGE,2JZGE,2LTE..GS151,JZS15#,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17565-74280

1G#,1JZGE,2JZGE,2LTE..GS151,JZS153,155,LS151..ROY,ROYEX,ROYG,ROYT,SALEX,SPDLX

 1
17565-74280

1G#,1JZGE,2LTE..GS151,JZS153,LS151

 1
17565-74280

1GGPE,2LTE..GS151,LS151

 1
17565-74280

1G#,2LTE..GS151,LS151

 1
17571 - BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571-70030

1GGPE..GS151

 1
17571-70030

1G#..GS151

 1
17581A - DAMPER, EXHAUST PIPE
17581-46060

1G#,1JZGE..GS151,JZS153

 1
17581-46060

1GGPE,1JZGE,2JZGE..GS151,JZS153,157

 1
17581-46060

1G#,1JZGE..GS151,JZS151,153

 1
17582 - BRACKET, CATALYTIC CONVERTER SUPPORT, UPPER
18495-70010

1G#..GS151

 1
17582-46020

1G#..GS151

 1
18495-70010

1GGPE..GS151

 1
18435 - PROTECTOR, CATALYTIC CONVERTER
18407-42010

1G#,1JZGE..GS151,JZS151,153

 1
18407-42010

1GGPE,1JZGE,2JZGE..GS151,JZS151,153,157

 1
18448 - BRACKET, CONVERTER PROTECTOR, CENTER
18448-43010

1G#,1JZGE..GS151,JZS151,153

 2
18448-43010

1GGPE,1JZGE,2JZGE..GS151,JZS151,153,157

 2
18491 - FLANGE, THERMOSENSOR INLET
18491-63010

1G#,1JZGE..GS151,JZS151,153

 1
Common parts
90177-10001
90179-08046
91515-61035
91626-40820
91631-60616
91631-60822
91651-60830
