GS151-AEMFK (1995)
Toyota Crown/Crown Majesta

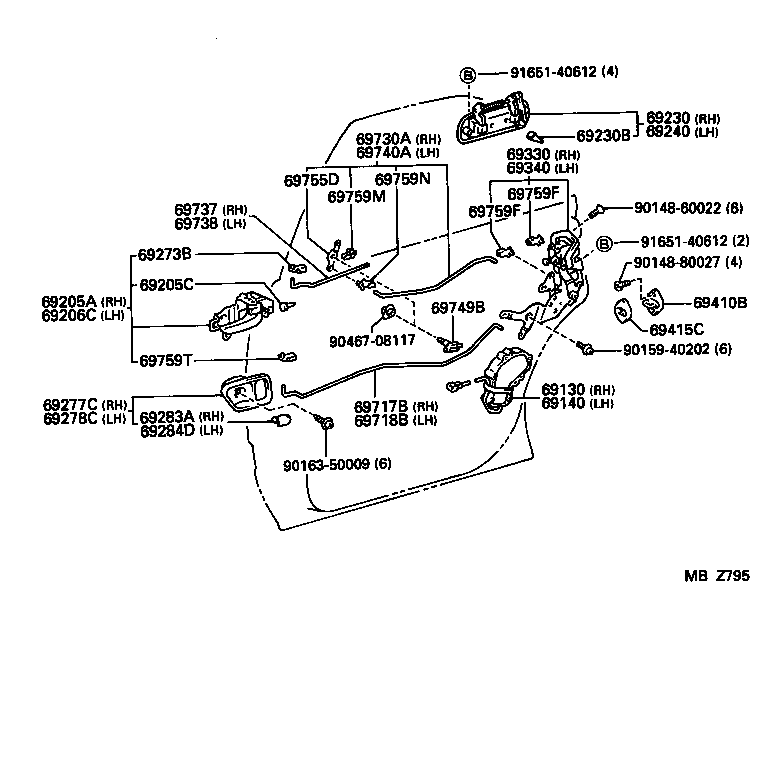

(9707- )HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69130-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69140-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69206-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69277-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69278-30080B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69284-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30440 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69330-30450 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69330-30470 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69050-30400 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69330-30480 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30450 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69060-30430 |
GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 69340-30490 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340-30480 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69340-30460 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69770-30220 |
GS151..SPDLX..HTWC D ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69770-30220 |
GS151..SPDLX..HTWC D ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90163-50009 | ||||
| 90959-01427 | ||||
| 91651-40612 | ||||

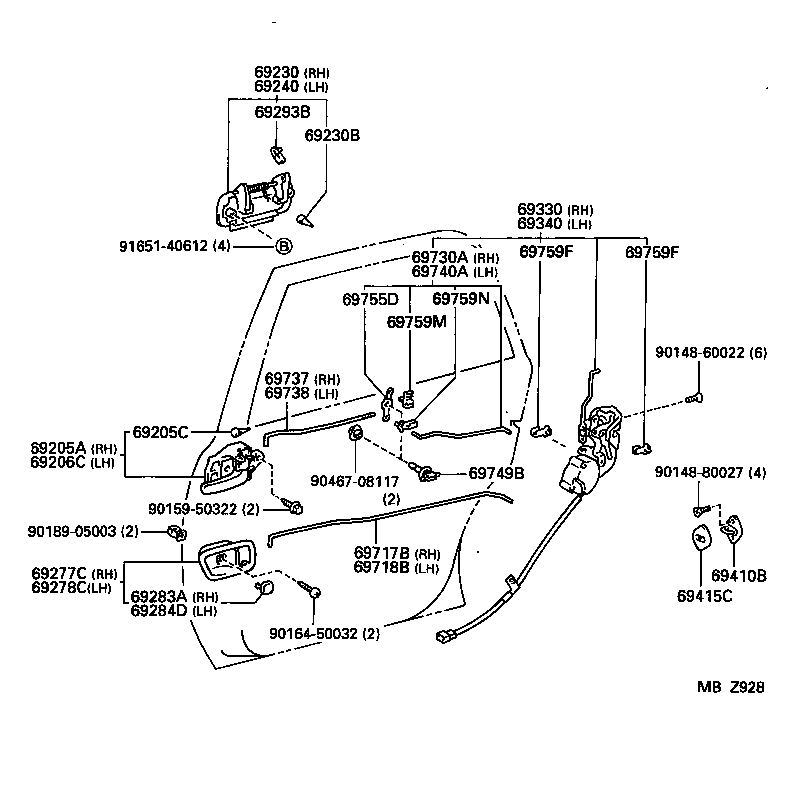

(9707- )SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69206-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69277-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69278-30080B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69284-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30440 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69330-30450 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69330-30470 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69050-30400 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69330-30480 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30450 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69060-30430 |
GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 69340-30490 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340-30480 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69340-30460 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69730D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69730-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740D - CABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH | ||||
| 69730-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32030 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69770B - CABLE ASSY, REAR DOOR INSIDE LOCKING, RH | ||||
| 69770-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69770-30220 |
GS151..SPDLX..HTWC D ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| 69780B - CABLE ASSY, REAR DOOR INSIDE LOCKING, LH | ||||
| 69770-30200 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69770-30220 |
GS151..SPDLX..HTWC D ﾊﾟﾂｹ-ｼﾞ |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-50322 | ||||
| 90164-50031 | ||||
| 90189-05003 | ||||
| 91651-40612 | ||||
(9508-9707)HT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69130 - ACTUATOR ASSY, REAR DOOR LOCK, RH | ||||
| 69130-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69130-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69140 - ACTUATOR ASSY, REAR DOOR LOCK, LH | ||||
| 69140-30120 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69140-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69206-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69273B - SNAP, DOOR INSIDE HANDLE ROD(FOR REAR DOOR) | ||||
| 69759-24070 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| 69759-14050 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69277-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69278-30080B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69284-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30440 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69330-30450 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69330-30470 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69050-30400 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69330-30480 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30450 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69060-30430 |
GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 69340-30490 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340-30480 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69340-30460 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-30110 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69713-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69714-30110 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH | ||||
| 69730-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69730-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69737 - LINK, REAR DOOR INSIDE LOCKING, RH | ||||
| 69737-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69737-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69738 - LINK, REAR DOOR INSIDE LOCKING, LH | ||||
| 69738-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69738-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH | ||||
| 69740-30040 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740-30050 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32030 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69755D - BELLCRANK, REAR DOOR LOCKING CONTROL, FRONT | ||||
| 69755-22050 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69759M - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20410 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69759N - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24060 |
GS151,JZS15#,LS151..SED 左側 |
1 | ||
| 69759-24090 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED 右側 |
1 | ||
| 69759-24080 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| 69759T - SNAP, REAR DOOR INSIDE HANDLE | ||||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-40202 | ||||
| 90163-50009 | ||||
| 90467-08117 | ||||
| 91651-40612 | ||||
(9512-9707)SED
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 69205A - HANDLE SUB-ASSY, REAR DOOR INSIDE, RH | ||||
| 69205-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69205-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69205C - CUSHION(FOR REAR DOOR INSIDE HANDLE) | ||||
| 90541-04014 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69206C - HANDLE SUB-ASSY, REAR DOOR INSIDE, LH | ||||
| 69206-30120B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69206-30120E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69206-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH | ||||
| 69230-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69230-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE) | ||||
| 90541-04022 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH | ||||
| 69240-30160 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30161 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69240-30170 |
GS151,JZS151,153,155,LS151..SED |
1 | ||
| 69277C - BEZEL, REAR DOOR INSIDE HANDLE, RH | ||||
| 69277-30150E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69277-30150B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69278C - BEZEL, REAR DOOR INSIDE HANDLE, LH | ||||
| 69278-30080E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69278-30080B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283A - PLUG, REAR DOOR INSIDE HANDLE BEZEL, RH | ||||
| 69283-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69283-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69284D - PLUG, REAR DOOR INSIDE HANDLE BEZEL, LH | ||||
| 69284-30040B0 |
GS151,JZS15#,LS151..SED DK.BLUE GRAY,TRIM1# |
1 | ||
| 69284-30040E0 |
GS151,JZS15#,LS151..SED ANTELOPE,TRIM4# |
1 | ||
| 69330 - LOCK ASSY, REAR DOOR, RH | ||||
| 69330-30440 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69330-30450 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69330-30470 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69050-30400 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69330-30480 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340 - LOCK ASSY, REAR DOOR, LH | ||||
| 69340-30450 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69060-30430 |
GS151,JZS15#,LS151..SED..(HTWC,TDE,TWC) |
1 | ||
| 69340-30490 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69340-30480 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69340-30460 |
GS151..SPDLX..HTWC ｱﾘ(ﾏﾆﾕｱﾙ ﾄﾞｱﾛﾂｸ) |
1 | ||
| 69410B - PLATE ASSY, REAR DOOR LOCK STRIKER | ||||
| 69410-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69415C - COVER, DOOR LOCK STRIKER, REAR | ||||
| 69415-50010 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69717B - LINK, REAR DOOR LOCK REMOTE CONTROL, RH | ||||
| 69713-30110 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69713-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69718B - LINK, REAR DOOR LOCK REMOTE CONTROL, LH | ||||
| 69714-30100 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69714-30110 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69730A - LINK ASSY, REAR DOOR LOCK CONTROL, RH | ||||
| 69730-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69730-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69737 - LINK, REAR DOOR INSIDE LOCKING, RH | ||||
| 69737-30090 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69737-30100 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69738 - LINK, REAR DOOR INSIDE LOCKING, LH | ||||
| 69738-30080 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69738-30070 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740A - LINK ASSY, REAR DOOR LOCK CONTROL, LH | ||||
| 69740-30040 |
GS151,JZS15#,LS151,UZS15#..HT |
1 | ||
| 69740-30050 |
GS151,JZS15#,LS151..SED |
1 | ||
| 69749B - CLAMP, REAR DOOR LOCK LINK | ||||
| 69749-32030 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69755D - BELLCRANK, REAR DOOR LOCKING CONTROL, FRONT | ||||
| 69755-22050 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69759F - SNAP, REAR DOOR LOCK CONTROL LINK | ||||
| 69759-50030 |
GS151,JZS15#,LS151,UZS15#..HT |
4 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED GREEN |
2 | ||
| 69759-24020 |
GS151,JZS15#,LS151,UZS15#..HT ﾌﾞﾙｰ |
2 | ||
| 69759-24010 |
GS151,JZS15#,LS151,UZS15#..HT |
2 | ||
| 69759-24060 |
GS151,JZS15#,LS151..SED GRAY |
2 | ||
| 69759M - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-20410 |
GS151,JZS15#,LS151,UZS15# |
2 | ||
| 69759N - SNAP, DOOR LOCK CONTROL LINK | ||||
| 69759-24060 |
GS151,JZS15#,LS151..SED 左側 |
1 | ||
| 69759-24090 |
GS151,JZS15#,LS151,UZS15#..HT 左側 |
1 | ||
| 69759-24050 |
GS151,JZS15#,LS151..SED 右側 |
1 | ||
| 69759-24080 |
GS151,JZS15#,LS151,UZS15#..HT 右側 |
1 | ||
| Common parts | ||||
| 90148-60022 | ||||
| 90148-80027 | ||||
| 90159-50322 | ||||
| 90164-50032 | ||||
| 90189-05003 | ||||
| 90467-08117 | ||||
| 91651-40612 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
