GS141-ATPSK (1993)
Toyota Crown/Crown Majesta
Production
Aug 1993
-
Aug 1995
Engine
1GFE
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(9308- )GS141

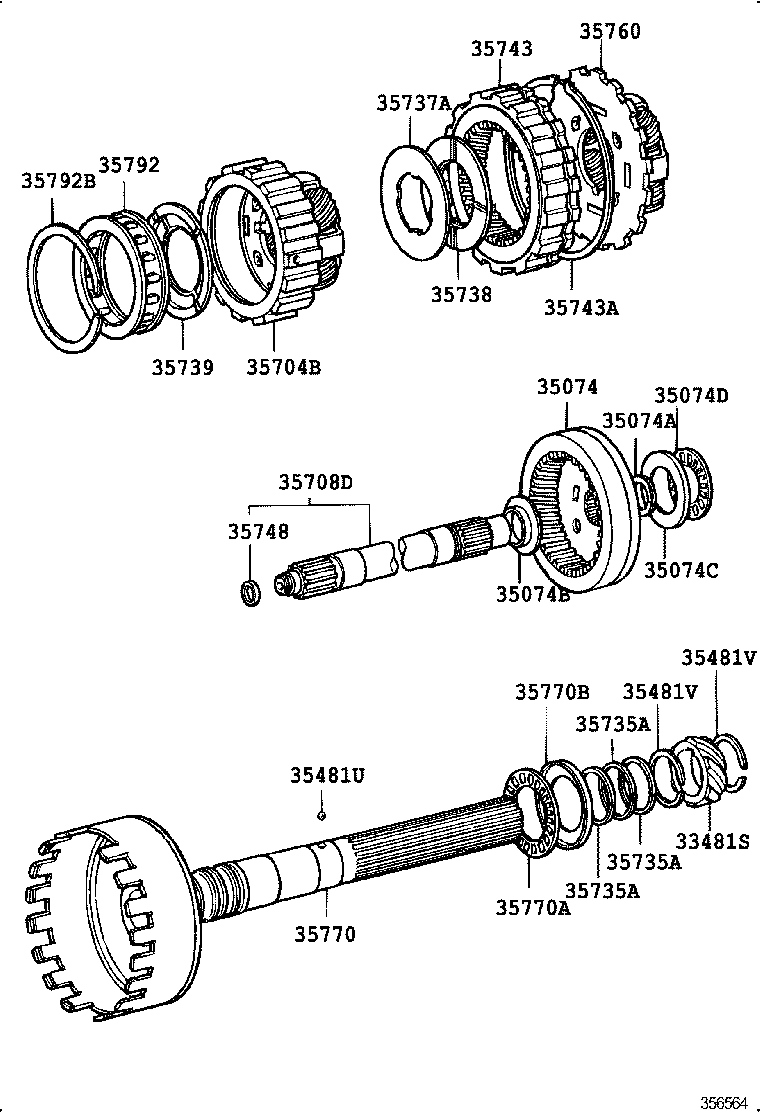

Click highlighted areas on diagram
A42DL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-25021 |
GS141 歯数=5,ﾏｰｸ 5X17−19 |
1 | ||
| 35074 - GEAR SUB-ASSY, REAR PLANETARY RING | ||||
| 35074-30010 |
GS141 |
1 | ||
| 35074A - RING, SET (FOR REAR PLANETARY RING GEAR) | ||||
| 90522-20037 |
GS141 |
1 | ||
| 35074B - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR FRON | ||||
| 35789-22050 |
GS141 |
1 | ||
| 35074C - RACE, THRUST BEARING (FOR REAR PLANETARY RING GEAR REAR | ||||
| 35789-22020 |
GS141 |
1 | ||
| 35074D - BEARING, THRUST (FOR REAR PLANETARY RING GEAR REAR) | ||||
| 90374-28014 |
GS141 |
1 | ||
| 35481U - KEY OR BALL, SPEEDMETER DRIVE GEAR (ATM) | ||||
| 90360-06004 |
GS141,JZS141,143,145,LS141 |
1 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
GS141 厚さ=1.50,外径=33.8 |
2 | ||
| 35481V - RING OR SPACER (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
GS141 厚さ=1.50,外径=33.8 |
2 | ||
| 35704B - GEAR SUB-ASSY, FRONT PLANETARY | ||||
| 35704-22030 |
GS141 |
1 | ||
| 35708D - SHAFT SUB-ASSY, INTERMEDIATE | ||||
| 35708-30031 |
GS141 |
1 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GS141 |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GS141 |
3 | ||
| 35735A - RING, PLANETARY OUTPUT SHAFT OIL SEAL | ||||
| 35735-22010 |
GS141 |
3 | ||
| 35737A - WASHER, PLANETARY CARRIER THRUST, NO.1 | ||||
| 35737-22010 |
GS141 |
1 | ||
| 35738 - WASHER, PLANETARY CARRIER THRUST, NO.2 | ||||
| 35738-22010 |
GS141 |
1 | ||
| 35739 - WASHER, PLANETARY CARRIER THRUST, NO.3 | ||||
| 35739-22011 |
GS141 |
1 | ||
| 35743 - GEAR, FRONT PLANETARY RING | ||||
| 35743-22010 |
GS141 |
1 | ||
| 35743A - RING, SHAFT SNAP (FOR FRONT PLANETARY RING GEAR) | ||||
| 90520-99121 |
GS141 |
1 | ||
| 35748 - RING, INTERMEDIATE SHAFT SLEEVE OIL SEAL | ||||
| 35748-30010 |
GS141 |
1 | ||
| 35760 - GEAR ASSY, REAR PLANETARY | ||||
| 35760-30020 |
GS141 |
1 | ||
| 35770 - SHAFT ASSY, OUTPUT | ||||
| 35770-14020 |
GS141 |
1 | ||
| 35770A - BEARING, THRUST (FOR OUTPUT SHAFT) | ||||
| 90374-38013 |
GS141 |
1 | ||
| 35770B - RACE, THRUST BEARING (FOR OUTPUT SHAFT) | ||||
| 35789-22040 |
GS141 |
1 | ||
| 35792 - CLUTCH, 1 WAY, NO.2 | ||||
| 35792-20010 |
GS141 |
1 | ||
| 35792B - RING, HOLE SNAP (FOR 1 WAY CLUTCH NO.2) | ||||
| 90521-79148 |
GS141 |
1 | ||
