GS141-ATPSK (1993)

Toyota Crown/Crown Majesta

Production Aug 1993 - Aug 1995
Engine 1GFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )GS141

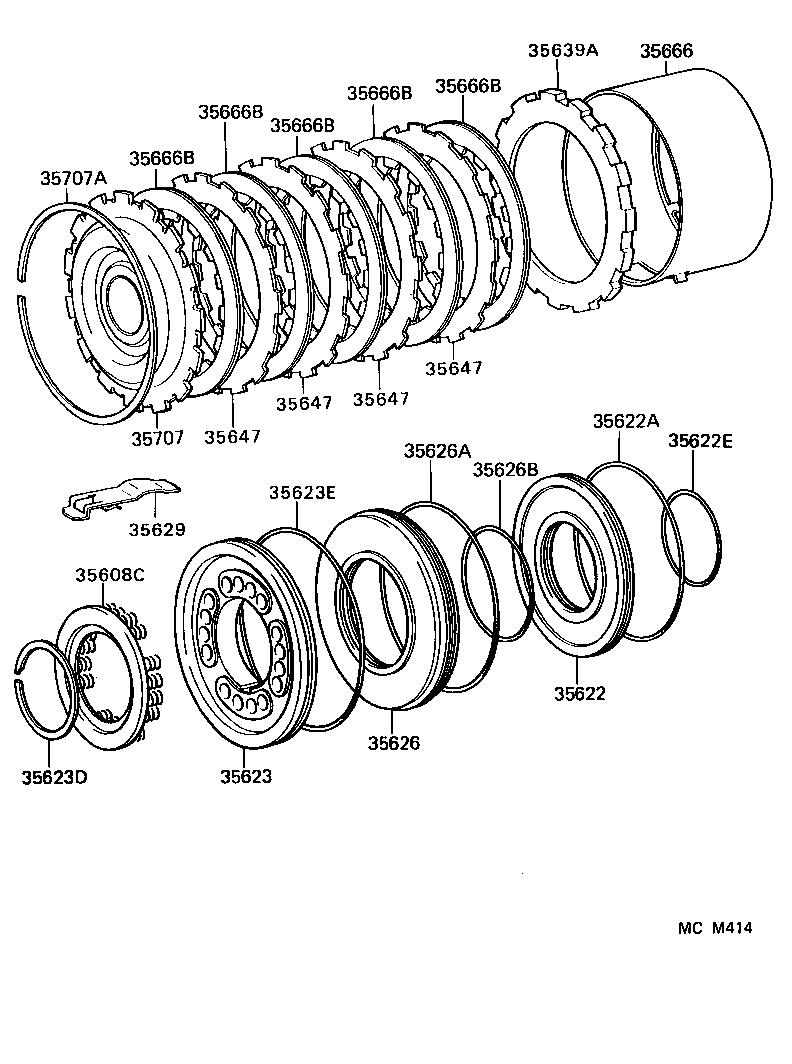

Click highlighted areas on diagram

A42DL

diagram 35608C 35622 35622A 35622E 35623 35623D 35623E 35626 35626A 35626B 35629 35639A 35647 35647 35647 35647 35666 35666B 35666B 35666B 35666B 35666B 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

GS141

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

GS141

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

GS141

 1
35622E - RING, O (FOR BRAKE PISTON NO.2)
90301-57188

GS141

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

GS141

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

GS141

 1
35623E - RING, O, NO.1 (FOR BRAKE PISTON)
90301-99192

GS141

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

GS141

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

GS141

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

GS141,JZS14#,LS141,UZS14#

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

GS141

 1
35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

GS141

 1
35647 - PLATE, CLUTCH, NO.2
35647-22010

GS141

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GS141

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GS141

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

GS141

 4
35666 - TUBE, BRAKE APPLY
35666-30010

GS141

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

GS141

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

GS141

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

GS141

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

GS141

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30060

GS141

 5
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30030

GS141

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

GS141

 1
