GS141-ATPSK (1993)

Toyota Crown/Crown Majesta

Production Aug 1993 - Aug 1995
Engine 1GFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )1GFE

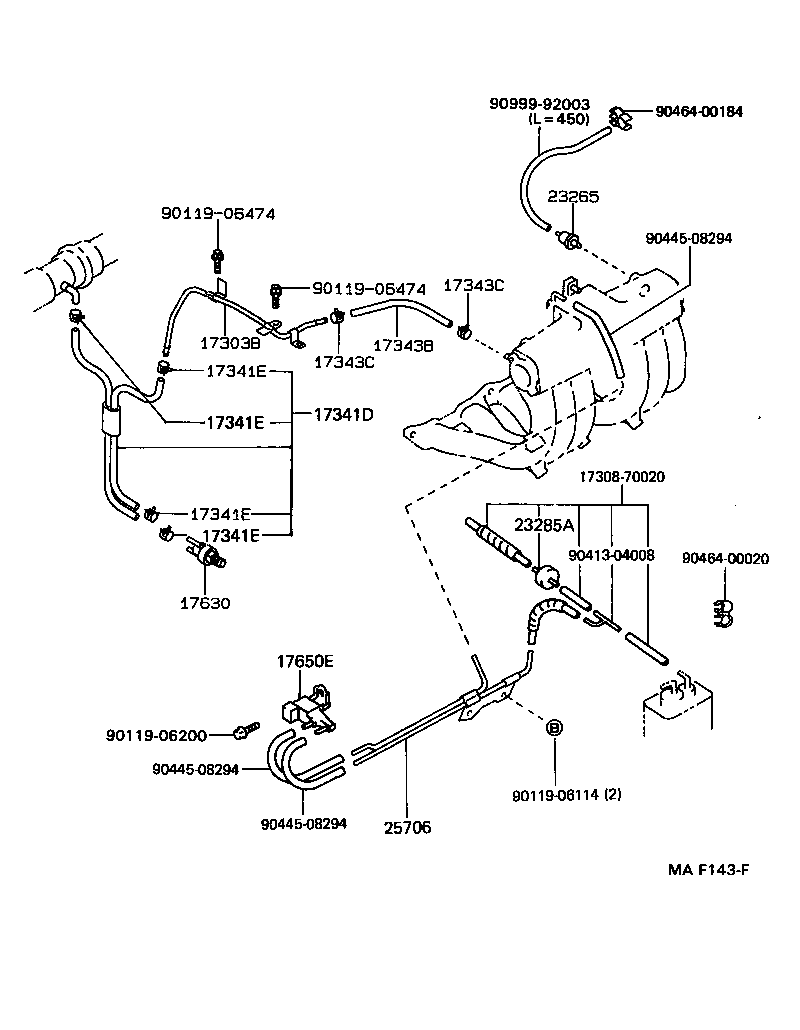

Click highlighted areas on diagram

diagram 17303B 1730870020 17341D 17341E 17341E 17341E 17341E 17343B 17343C 17343C 17630 17650E 23265 23285A 25706 9011906114 9011906200 9011906474 9011906474 9041304008 9044508294 9044508294 9044508294 9046400020 9046400184 9099992003
Part # Description Qty Price
17303B - PIPE SUB-ASSY, AIR, NO.1
17303-70080

1GFE..GS141

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-70180

1GFE..GS141

 1
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 4
17341E - CLIP, NO.1(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 4
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-70050

1GFE..GS141

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 2
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
90467-10106

1GFE..GS141

 2
17630 - VALVE ASSY, AIR CONTROL
17630-70020

1GFE..GS141

 1
17630-70020

1GFE..GS141

 1
17650E - VALVE, VACUUM SWITCHING
90910-12120

1GFE..GS141

 1
23265 - FILTER, GAS, NO.1
90917-11022

1GFE..GS141

 1
23285A - VALVE, CHECK, NO.1
90917-10080

1GFE..GS141

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-70010

1GFE..GS141

 1
Common parts
17308-70020
90119-06114
90119-06200
90119-06474
90413-04008
90445-08294
90464-00020
90464-00184
90999-92003
