GS141-ATPSK (1993)

Toyota Crown/Crown Majesta

Production Aug 1993 - Aug 1995
Engine 1GFE
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(9308- )1GFE

Click highlighted areas on diagram

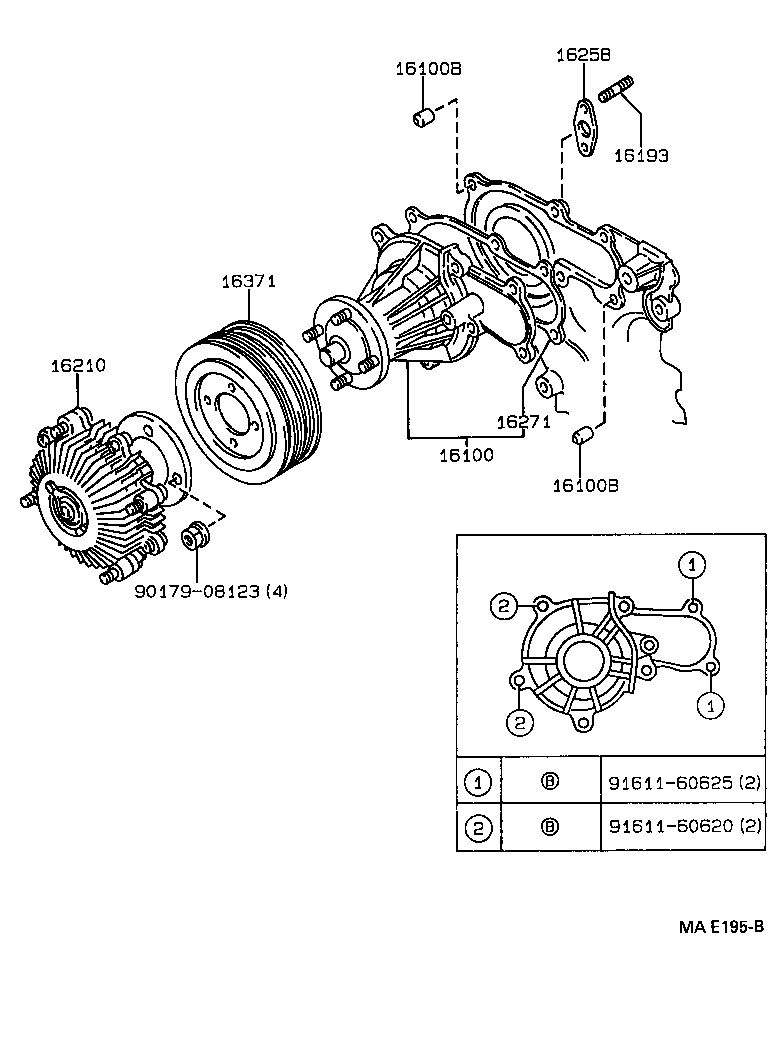

diagram 16100 16100B 16100B 16193 16210 16258 16271 16371 9017908123 9161160620 9161160625
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-79116

1GFE..GS141

 1
16100B - PIN, RING(FOR WATER PUMP SET)
16159-70040

1GFE..GS141

 2
16100B - PIN, RING(FOR WATER PUMP SET)
16159-70040

1GFE..GS141

 2
16193 - BOLT, STUD(FOR WATER PUMP COVER)
16192-70010

1GFE..GS141

 2
16210 - COUPLING ASSY, FLUID
16210-70040

1GFE..GS141

 1
16258 - GASKET(FOR HEATER RETURN)
16258-70020

1GFE..GS141

 1
16271 - GASKET, WATER PUMP
16124-70041

1GFE..GS141

 1
16371 - PULLEY, FAN
16371-70060

1GFE..GS141

 1
Common parts
90179-08123
91611-60620
91611-60625
