TX50-YTKNS (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

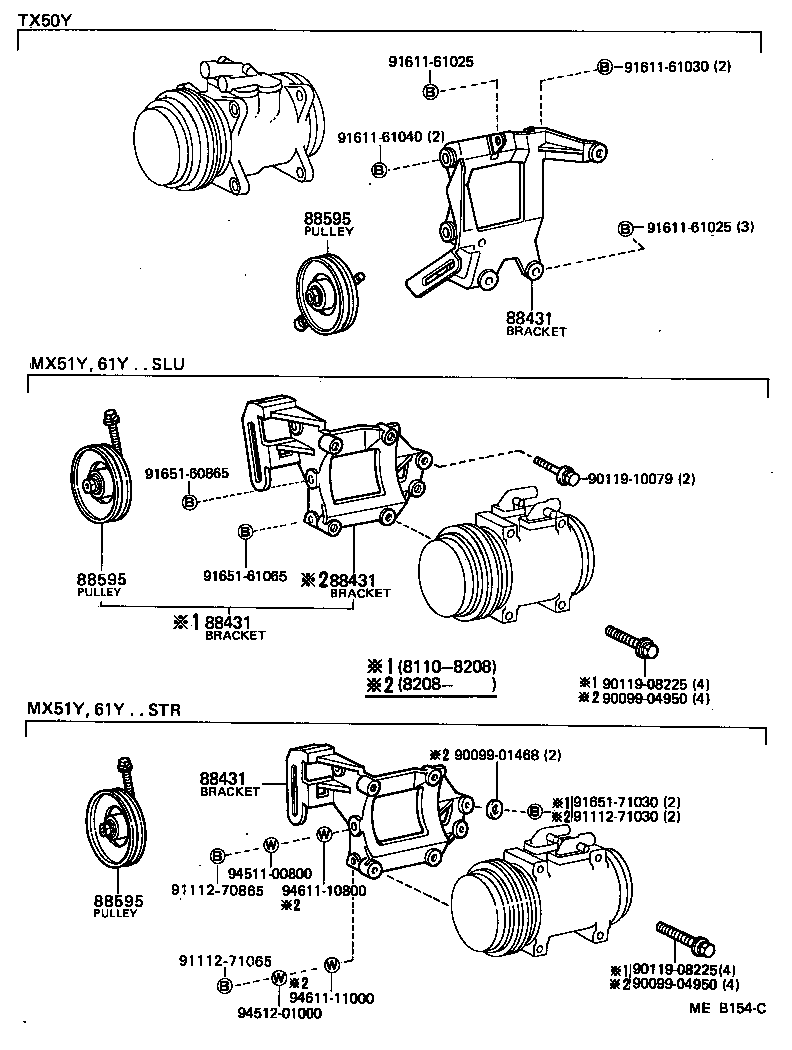

ILLUST NO. 3 OF 3(8003- )MX51,61,TX50
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22130 |
TX50 |
1 | ||
| 88431-22131 |
TX50 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22130 |
TX50 |
1 | ||
| 88431-22131 |
TX50 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22130 |
TX50 |
1 | ||
| 88431-22131 |
TX50 |
1 | ||
| 88431 - BRACKET, COMPRESSOR MOUNTING, NO.1 | ||||
| 88431-22130 |
TX50 |
1 | ||
| 88431-22131 |
TX50 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
GX5#,MX51,TX50 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
GX5#,MX51,TX50 |
1 | ||
| 88595 - PULLEY, COOLER COMPRESSOR IDLE | ||||
| 88440-30250 |
GX5#,MX51,TX50 |
1 | ||
| Common parts | ||||
| 90099-01468 | ||||
| 90099-04950 | ||||
| 90119-08225 | ||||
| 90119-10079 | ||||
| 91112-70865 | ||||
| 91112-71030 | ||||
| 91112-71065 | ||||
| 91611-61025 | ||||
| 91611-61030 | ||||
| 91611-61040 | ||||
| 91651-60865 | ||||
| 91651-61065 | ||||
| 91651-71030 | ||||
| 94511-00800 | ||||
| 94512-01000 | ||||
| 94611-10800 | ||||
| 94611-11000 | ||||
ILLUST NO. 2 OF 3(8003- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
TX50 |
1 | ||
| 88412-12040 |
TX50 |
1 | ||
| 88301 - ROTOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88412-12040 |
TX50 |
1 | ||
| 88412-12040 |
TX50 |
1 | ||
| 88302 - STATOR SUB-ASSY, MAGNET CLUTCH | ||||
| 88411-22040 |
TX50 |
1 | ||
| 88411-14050 |
TX50 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TX50 |
1 | ||
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-14280 |
TX50 |
1 | ||
| 88330 - CLUTCH ASSY, MAGNET | ||||
| 88410-22060 |
TX50 |
1 | ||
| 88410-14090 |
TX50 |
1 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
TX50 |
1 | ||
| 90099-10117 |
GX5#,TX50 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
TX50 |
1 | ||
| 90099-10117 |
GX5#,TX50 |
2 | ||
| 88330B - BEARING, MAGNET CLUTCH | ||||
| 90099-10133 |
TX50 |
1 | ||
| 90099-10117 |
GX5#,TX50 |
2 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
TX50 |
1 | ||
| 90099-07094 |
TX50 |
1 | ||
| 88330C - RING, SNAP (FOR MAGNET CLUTCH) | ||||
| 90099-07114 |
TX50 |
1 | ||
| 90099-07094 |
TX50 |
1 | ||
| 88403 - HUB SUB-ASSY, MAGNET CLUTCH | ||||
| 88403-14030 |
TX50 |
1 | ||
| 88403-26030 |
TX50 |
1 | ||
| Common parts | ||||
| 88899-14030 | ||||
ILLUST NO. 1 OF 3(8003- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99321-00885 |
13TU..TX50 |
1 | ||
| 44310A - BELT, V(FOR VANE PUMP) | ||||
| 99332-01080 |
TX50 |
1 | ||
| 88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1 | ||||
| 99322-50950 |
TX50 |
1 | ||
| Linked diagrams | ||||
| 1603 | ||||
| 4503 | ||||
| 8719 | ||||
