TX50-YTKNS (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(8003- )

Click highlighted areas on diagram

diagram 88450 88460 88460 8846714040 8846714040 8846722050 8846722050 8846722060 8846722060 8846722060 8846722060 8846722060 88470 88470 88470B 88470B 88472 88472 88472 88472 8868822120 8868822150 88716A 88716A 88716B 88716U 88716U 88716U 88891A 88891A 88891B 88891B 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9017906115 9338516012 9338516012 9338516016 9338516016
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-22160

TX50

 1
88460 - CONDENSER ASSY, COOLER
88460-22160

TX50

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-12070

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88470B - BOLT, FUSE
90099-04579

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88470B - BOLT, FUSE
90099-04579

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88472 - BRACKET, RECEIVER TANK, NO.1
88472-22090

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22350

LX60,SX60,TX50

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-22350

LX60,SX60,TX50

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22340

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX5#,61,LX60,MX51,61,SX60,TX50

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX5#,61,LX60,MX51,61,SX60,TX50

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX5#,61,LX60,MX51,61,SX60,TX50

 5
88891A - PACKING A (FOR COOLER)
88578-22080

LX60,SX60,TX50

 1
88891A - PACKING A (FOR COOLER)
88578-22080

LX60,SX60,TX50

 1
88891B - PACKING B (FOR COOLER)
88578-22090

LX60,SX60,TX50

 2
88891B - PACKING B (FOR COOLER)
88578-22090

LX60,SX60,TX50

 2
Common parts
88467-14040
88467-22050
88467-22060
88688-22120
88688-22150
90179-06115
93385-16012
93385-16016

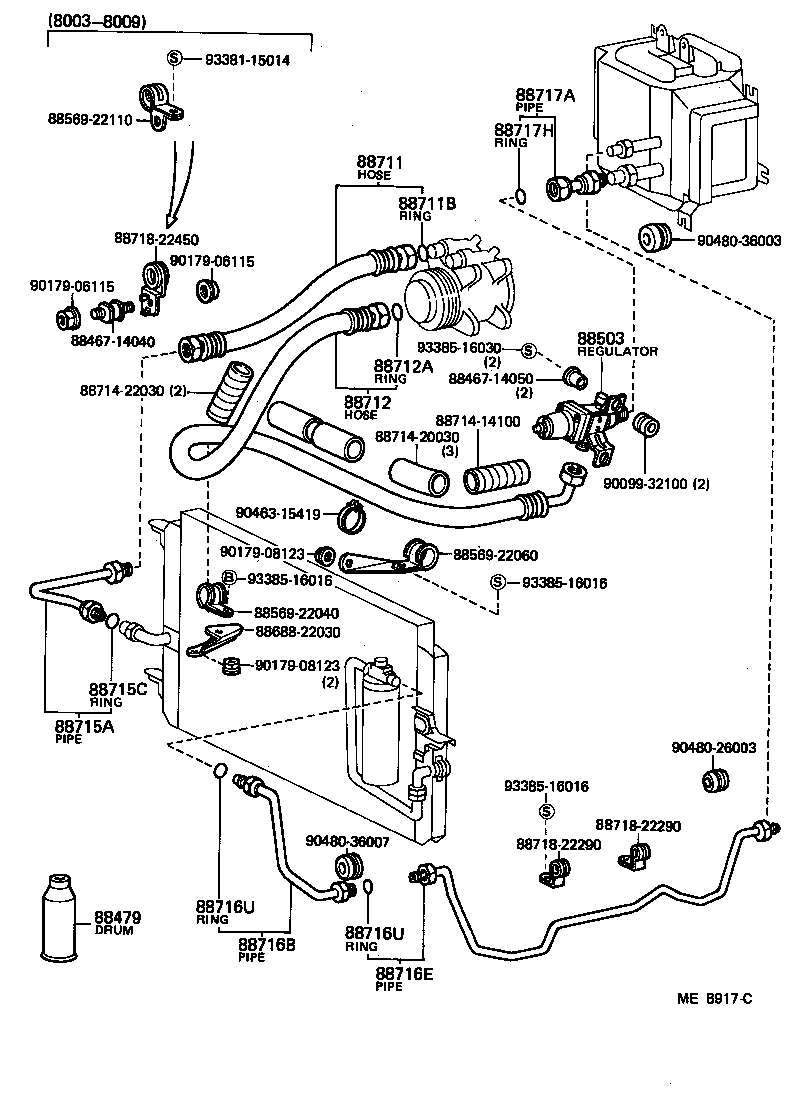

ILLUST NO. 2 OF 2(8003-8208)TX50

Click highlighted areas on diagram

diagram 8846714040 8846714050 88479 88503 8856922040 8856922060 8856922110 8868822030 88711 88711B 88712 88712A 8871414100 8871420030 8871422030 88715A 88715C 88716B 88716E 88716U 88716U 88717A 88717H 8871822290 8871822290 8871822450 9009932100 9017906115 9017906115 9017908123 9017908123 9046315419 9048026003 9048036003 9048036007 9338115014 9338516016 9338516016 9338516016 9338516030
Part # Description Qty Price
88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)
90986-02001

GX5#,61,LX60,MX51,61,SX60,TX50

400G

 2
88503 - REGULATOR ASSY, PRESSURE
88503-22080

GX5#,61,LX60,MX51,61,SX60,TX50..CTM,SCM,SDX,STR

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-22200

TX50

 1
88711B - RING, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
90099-14046

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22230

TX50

 1
88712A - RING, O(FOR COOLER REFRIGERANT SUCTION HOSE)
90099-14045

GX5#,61,LX60,MX51,61,SX60,TX50

 2
88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A
88715-22060

TX50

 1
88715-22070

TX50

 1
88715C - RING, O(FOR COOLER REFRIGERANT DISCHARGE PIPE)
90099-14046

LX60,SX60,TX50

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-22340

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-22310

GX5#,61,MX51,61,TX50

 1
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX5#,61,LX60,MX51,61,SX60,TX50

 5
88716U - RING, O(FOR COOLER REFRIGERANT LIQUID PIPE)
90099-14044

GX5#,61,LX60,MX51,61,SX60,TX50

 5
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-22170

GX5#,61,LX60,MX51,61,SX60,TX50

 1
88717H - RING, O(FOR COOLER REFRIGERANT SUCTION PIPE)
90099-14045

GX5#,61,LX60,MX51,61,SX60,TX50

 2
Common parts
88467-14040
88467-14050
88569-22040
88569-22060
88569-22110
88688-22030
88714-14100
88714-20030
88714-22030
88718-22290
88718-22450
90099-32100
90179-06115
90179-08123
90463-15419
90480-26003
90480-36003
90480-36007
93381-15014
93385-16016
93385-16030
