TX50-YTKNS (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003-8208)TX50

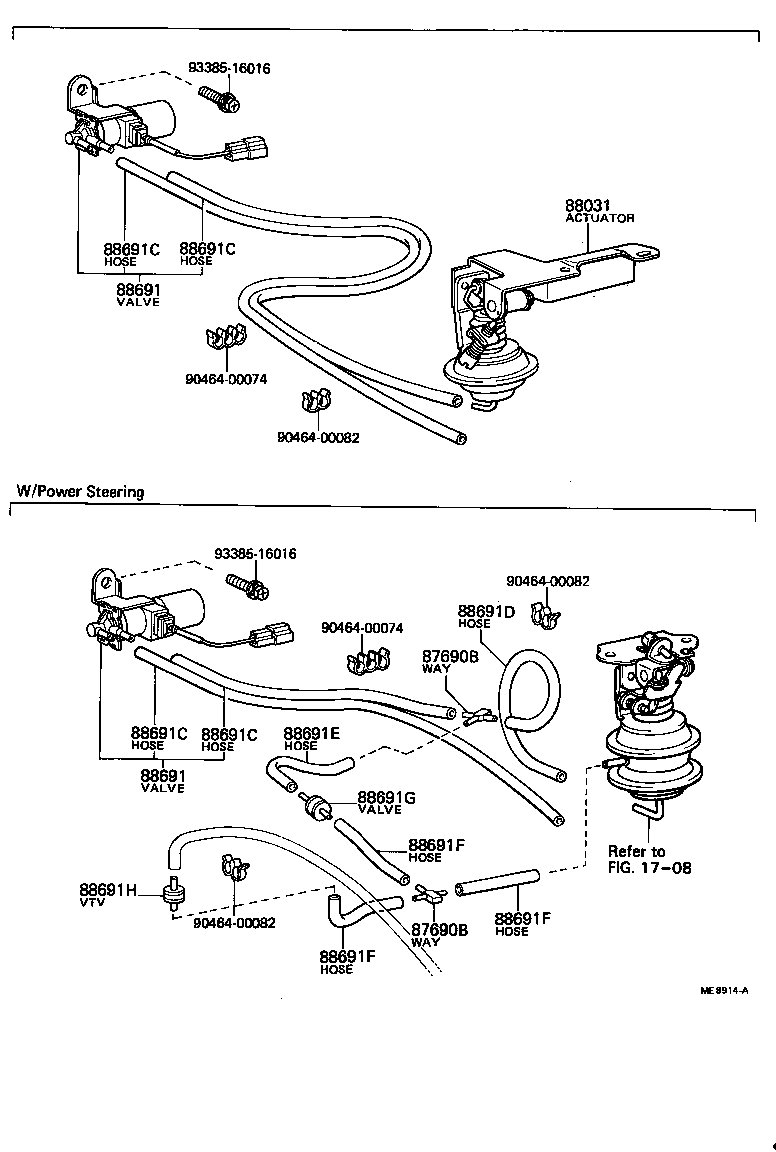

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87690B - WAY, 3 | ||||
| 90413-04001 |
TX50 W/PS |
2 | ||
| 87690B - WAY, 3 | ||||
| 90413-04001 |
TX50 W/PS |
2 | ||
| 88031 - ACTUATOR SET, IDLE-UP | ||||
| 88031-12100 |
TX50..CTM |
1 | ||
| 88031-12050 |
TX50 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22180 |
TX50 |
1 | ||
| 88691 - VALVE, MAGNET (FOR IDLE UP DEVICE) | ||||
| 88690-22180 |
TX50 |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
TX50 *H,L=510,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
TX50 *H,L=340,ﾏｰｸ=#*,W/PS |
1 | ||
| 95411-19960 |
TX50..CTM *H,L=600,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
TX50 *H,L=510,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
TX50 *H,L=340,ﾏｰｸ=#*,W/PS |
1 | ||
| 95411-19960 |
TX50..CTM *H,L=600,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
TX50 *H,L=510,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
TX50 *H,L=340,ﾏｰｸ=#*,W/PS |
1 | ||
| 95411-19960 |
TX50..CTM *H,L=600,ﾏｰｸ=#* |
1 | ||
| 88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1 | ||||
| 95411-10060 |
TX50 *H,L=510,ﾏｰｸ=#0 |
1 | ||
| 95411-19960 |
TX50 *H,L=340,ﾏｰｸ=#*,W/PS |
1 | ||
| 95411-19960 |
TX50..CTM *H,L=600,ﾏｰｸ=#* |
1 | ||
| 88691D - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.2 | ||||
| 95411-19930 |
TX50 *H,L=260,ﾏｰｸ=#* |
1 | ||
| 88691E - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.3 | ||||
| 95411-19930 |
TX50 *H,L=40,ﾏｰｸ=#* |
1 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 95411-10030 |
TX50 *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 95411-10030 |
TX50 *H,L=40,ﾏｰｸ=#0 |
2 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 95411-10030 |
TX50 *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 95411-10030 |
TX50 *H,L=40,ﾏｰｸ=#0 |
2 | ||
| 88691F - HOSE, VACUUM (FOR IDLE UP DIVICE), NO.4 | ||||
| 95411-10030 |
TX50 *H,L=50,ﾏｰｸ=#0 |
1 | ||
| 95411-10030 |
TX50 *H,L=40,ﾏｰｸ=#0 |
2 | ||
| 88691G - VALVE, CHECK(FOR IDLE-UP DIVICE) | ||||
| 90917-10059 |
TX50 |
1 | ||
| 88691H - VALVE, VACUUM TRANSMITTING (FOR IDLE UP DIVICE) | ||||
| 90925-04017 |
TX50 |
1 | ||
| Common parts | ||||
| 90464-00074 | ||||
| 90464-00082 | ||||
| 93385-16016 | ||||
| Linked diagrams | ||||
| 1708 | ||||
