TX50-YTKNS (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003-8208)CTM

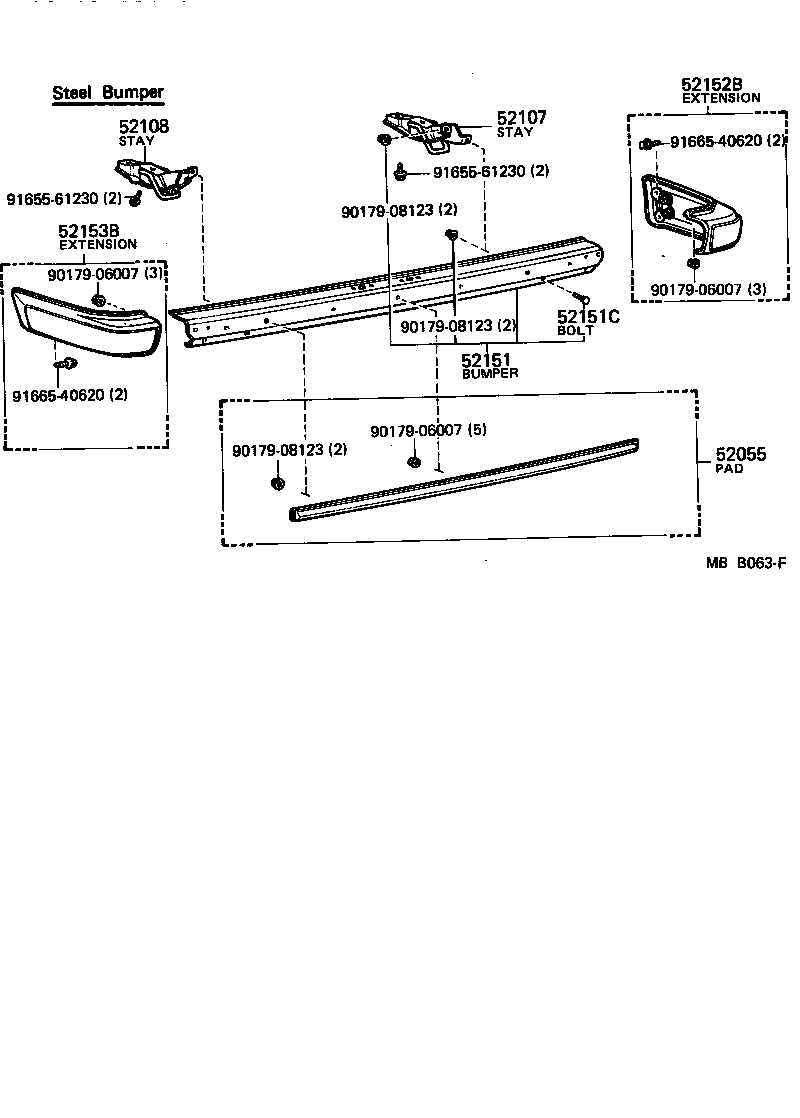

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52055 - PAD SUB-ASSY, REAR BUMPER | ||||
| 52055-29065 |
TX50..CTM |
1 | ||
| 52107 - STAY SUB-ASSY, REAR BUMPER, RH | ||||
| 52015-22010 |
TX50..CTM |
1 | ||
| 52108 - STAY SUB-ASSY, REAR BUMPER, LH | ||||
| 52016-22010 |
TX50..CTM |
1 | ||
| 52151 - BUMPER ASSY, REAR | ||||
| 52151-29385 |
TX50..CTM |
1 | ||
| 52151C - BOLT, ROUND HEAD SQUARE NECK(FOR REAR BUMPER) | ||||
| 90112-08017 |
TX50..CTM |
2 | ||
| 52152B - EXTENSION, REAR BUMPER, RH | ||||
| 52106-29065 |
TX50..CTM |
1 | ||
| 52153B - EXTENSION, REAR BUMPER, LH | ||||
| 52107-29185 |
TX50..CTM |
1 | ||
| Common parts | ||||
| 90179-06007 | ||||
| 90179-08123 | ||||
| 91655-61230 | ||||
| 91665-40620 | ||||
(8003-8208)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-22050 |
GX5#,TX50 |
1 | ||
| 52023-22051 |
GX5#,MX51,TX50 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-22050 |
GX5#,TX50 |
1 | ||
| 52155-22051 |
GX5#,MX51,TX50 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-22071 |
GX5#,MX51,TX50 |
1 | ||
| 52156-22070 |
GX5#,TX50 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-22020 |
GX5#,TX50 BLACK |
1 | ||
| 52159-22021 |
GX5#,TX50 BLACK |
1 | ||
| 52159-22022 |
GX5#,MX51,TX50 BLACK |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52521-22040 |
GX5#,MX51,TX50 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52705 - MOULDING SUB-ASSY, REAR BUMPER | ||||
| 52705-22010 |
GX5#,MX51,TX50 |
1 | ||
| 52705B - RETAINER, REAR BUMPER MOULDING | ||||
| 52717-22010 |
GX5#,MX51,TX50 |
4 | ||
| 52723 - MOULDING, REAR BUMPER EXTENSION, RH | ||||
| 52723-22011 |
GX5#,MX51,TX50 |
1 | ||
| 52723-22010 |
GX5#,TX50 |
1 | ||
| 52724 - MOULDING, REAR BUMPER EXTENSION, LH | ||||
| 52724-22011 |
GX5#,MX51,TX50 |
1 | ||
| 52724-22010 |
GX5#,TX50 |
1 | ||
| Common parts | ||||
| 90119-14002 | ||||
| 90179-06007 | ||||
| 90183-03001 | ||||
| 90468-04011 | ||||
| 91615-61225 | ||||
| 91655-40618 | ||||
| 91665-40616 | ||||
| Linked diagrams | ||||
| 5102 | ||||
