TX50-YTKNS (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)TX50

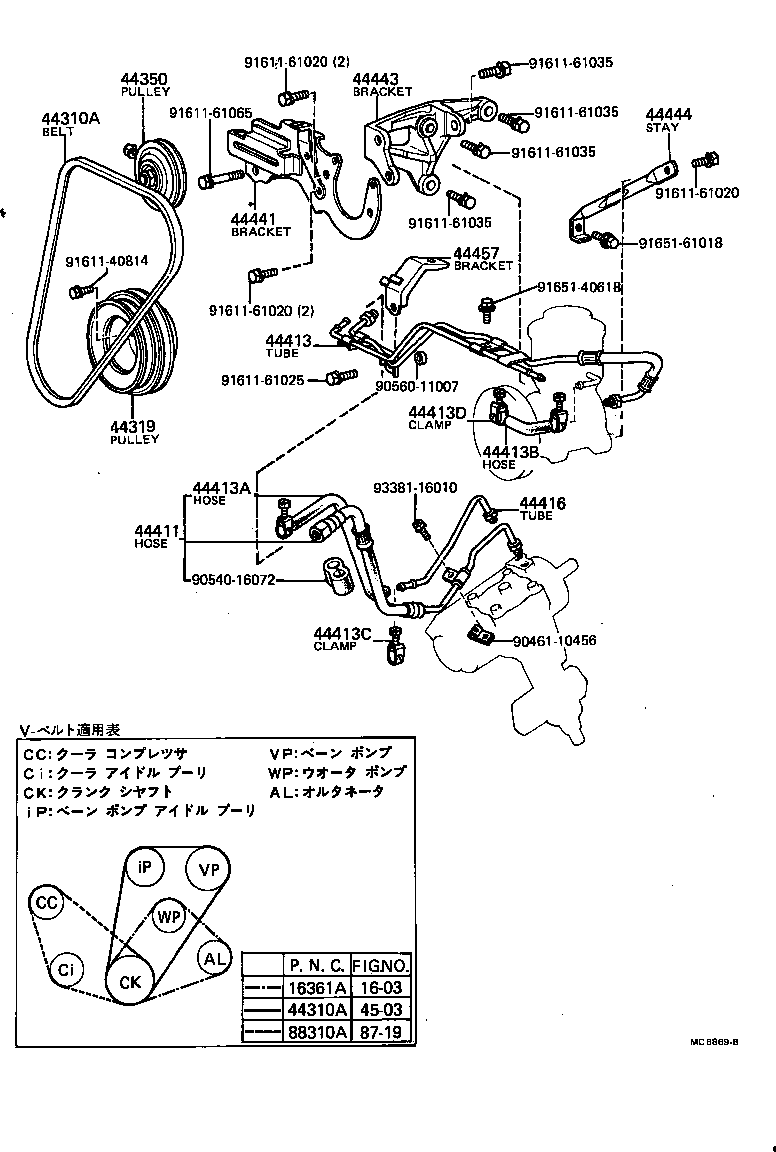

Click highlighted areas on diagram

diagram 1603 16361A 44310A 44310A 44319 44350 44411 44413 44413A 44413B 44413C 44413D 44416 44441 44443 44444 44457 4503 8719 88310A 9046110456 9054016072 9056011007 9161140814 9161161020 9161161020 9161161020 9161161025 9161161035 9161161035 9161161035 9161161035 9161161065 9165140618 9165161018 9338116010
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99321-00885

13TU..TX50

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01080

TX50

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01080

TX50

 1
44319 - PULLEY, VANE PUMP DRIVE
13477-18021

TX50

 1
13477-18020

TX50

 1
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12020

TX50

 1
44411 - HOSE, PRESSURE FEED
44410-22031

TX50

 1
44410-22070

TX50..4F

*30

 1
44413 - TUBE, PRESSURE FEED, NO.1
44413-22120

TX50..4F

*30

 1
44413-22082

TX50

 1
44413A - HOSE(FOR RETURN TUBE OUTLET)
90445-18093

TX50

 1
44413B - HOSE(FOR RESERVOIR TANK INLET)
44412-14020

TX50

 1
44413C - CLAMP(FOR RETURN TUBE OUTLET HOSE)
90460-01001

TX50

 2
44413D - CLAMP(FOR RESERVOIR TANK INLET HOSE)
90460-01001

TX50

 2
44416 - TUBE, RETURN(FOR STEERING GEAR OUTLET)
44416-20020

TX50

 1
44441 - BRACKET, PUMP, FRONT
44441-22020

TX50

 1
44443 - BRACKET, PUMP
44443-12010

TX50

 1
44444 - STAY, PUMP, REAR
44444-12010

TX50

 1
44457 - BRACKET, TUBE SUPPORT, NO.1
44457-22040

TX50

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99322-50950

TX50

 1
Common parts
90461-10456
90540-16072
90560-11007
91611-40814
91611-61020
91611-61025
91611-61035
91611-61065
91651-40618
91651-61018
93381-16010
Linked diagrams
1603
4503
8719
