TX50-YTKNS (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

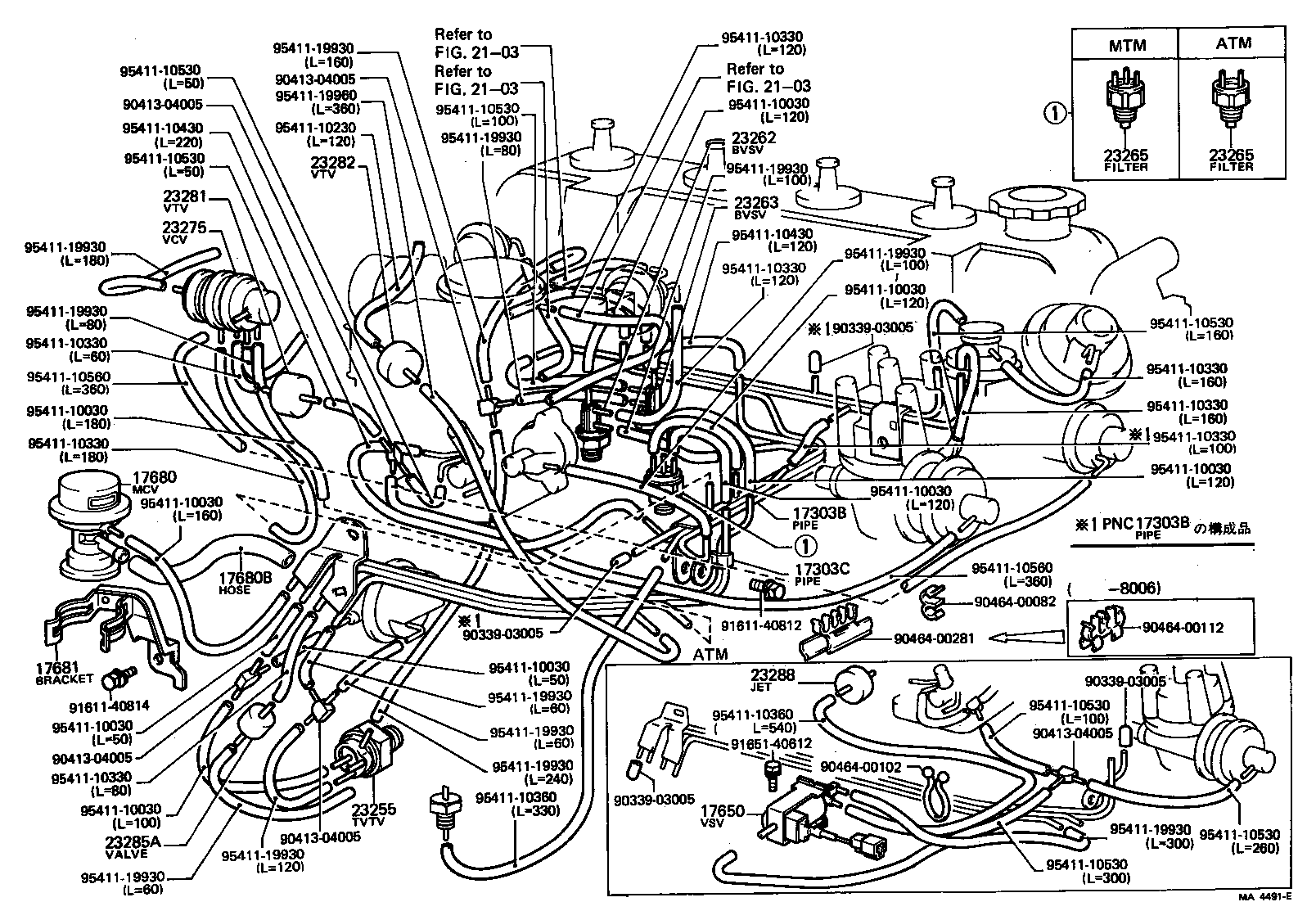

ILLUST NO. 1 OF 2(8003-8208)13TU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-18031 |
13TU..TX50 |
1 | ||
| 17303C - PIPE SUB-ASSY, AIR, NO.2 | ||||
| 17303-18051 |
13TU..TX50 |
1 | ||
| 17680 - VALVE ASSY, MIXTURE CONTROL | ||||
| 17680-18020 |
13TU..TX50..4F |
1 | ||
| 17680B - HOSE(FOR MIXTURE CONTROL VALVE) | ||||
| 90445-11052 |
13TU..TX50..4F |
1 | ||
| 17681 - BRACKET, MIXTURE CONTROL VALVE | ||||
| 17681-18030 |
13TU..TX50..4F |
1 | ||
| 23255 - VALVE, THERMOSTATIC VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01068 |
13TU..TX50 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 25810-15010 |
13TU..TX50 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 25810-24020 |
13TU..TX50 |
1 | ||
| 25810-24010 |
13TU..TX50 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
13TU..TX50..4F |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11024 |
13TU..TX50..4F |
1 | ||
| 23275 - VALVE, VACUUM CONTROL, NO.1 | ||||
| 90925-03095 |
13TU..TX50..4F |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01072 |
13TU..TX50 |
1 | ||
| 23282 - VALVE, VACUUM TRANSMITTING, NO.2 | ||||
| 90925-01021 |
13TU..TX50..4F |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10059 |
13TU..TX50 |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90464-00102 | ||||
| 90464-00112 | ||||
| 90464-00281 | ||||
| 91611-40812 | ||||
| 91611-40814 | ||||
| 91651-40612 | ||||
| 95411-10030 | ||||
| 95411-10230 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-10430 | ||||
| 95411-10530 | ||||
| 95411-10560 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
| Linked diagrams | ||||
| 2103 | ||||

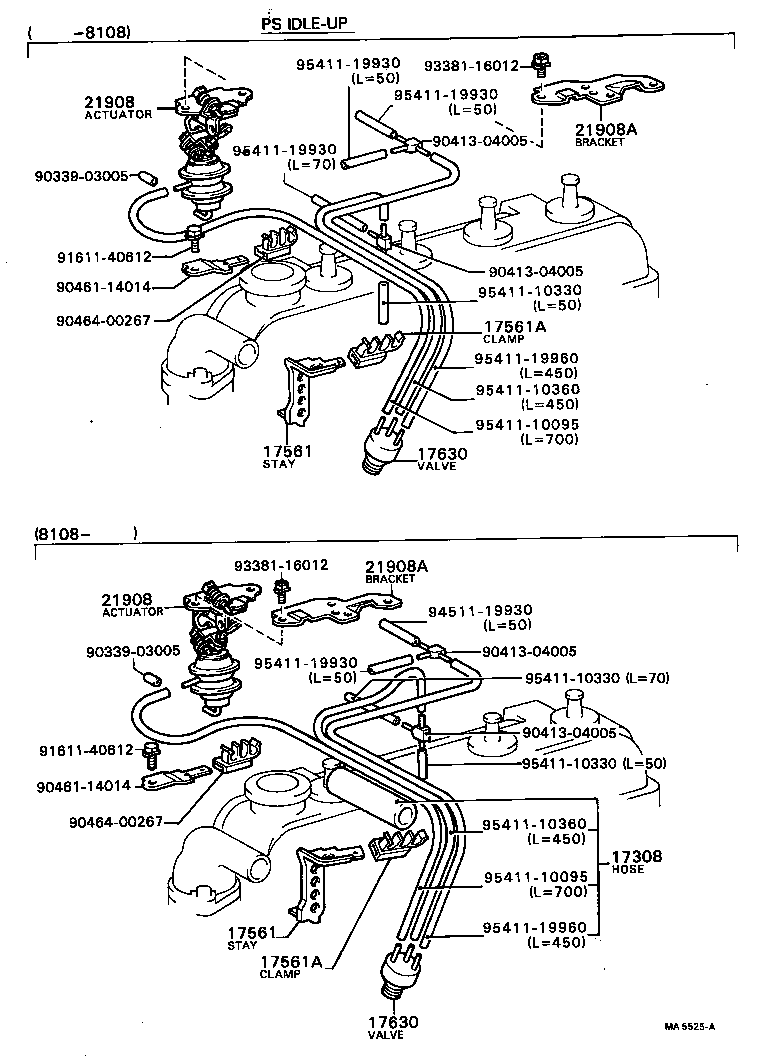

ILLUST NO. 2 OF 2(8003-8208)13TU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-18010 |
13TU..TX50 W/PS |
1 | ||
| 17561 - STAY(FOR AIR HOSE) | ||||
| 17561-18020 |
13TU..TX50 W/PS |
1 | ||
| 17561 - STAY(FOR AIR HOSE) | ||||
| 17561-18020 |
13TU..TX50 W/PS |
1 | ||
| 17561A - CLAMP(FOR AIR HOSE) | ||||
| 90464-00267 |
13TU..TX50 W/PS |
1 | ||
| 17561A - CLAMP(FOR AIR HOSE) | ||||
| 90464-00267 |
13TU..TX50 W/PS |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-18010 |
13TU..TX50 W/PS |
1 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-18010 |
13TU..TX50 W/PS |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-18010 |
13TU..TX50 W/PS |
1 | ||
| 21908 - ACTUATOR SUB-ASSY, IDLE-UP | ||||
| 21908-18010 |
13TU..TX50 W/PS |
1 | ||
| 21908A - BRACKET, IDLE-UP ACTUATOR | ||||
| 21893-28080 |
13TU..TX50 W/PS |
1 | ||
| 21908A - BRACKET, IDLE-UP ACTUATOR | ||||
| 21893-28080 |
13TU..TX50 W/PS |
1 | ||
| Common parts | ||||
| 90339-03005 | ||||
| 90413-04005 | ||||
| 90461-14014 | ||||
| 90464-00267 | ||||
| 91611-40612 | ||||
| 93381-16012 | ||||
| 94511-19930 | ||||
| 95411-10095 | ||||
| 95411-10330 | ||||
| 95411-10360 | ||||
| 95411-19930 | ||||
| 95411-19960 | ||||
(8003- )13TU
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90413-04005 | ||||
| 90414-04001 | ||||
| 90414-04002 | ||||
| 90464-00074 | ||||
| 90464-00081 | ||||
| 90464-00082 | ||||
| 90925-01004 | ||||
| 90925-01005 | ||||
| 90925-01006 | ||||
| 90925-01008 | ||||
| 90925-01009 | ||||
| 90925-01011 | ||||
| 90925-01014 | ||||
| 90925-01015 | ||||
| 90925-01018 | ||||
| 90925-01019 | ||||
| 90925-01021 | ||||
| 90925-01027 | ||||
| 90925-01029 | ||||
| 90925-01032 | ||||
| 90925-01035 | ||||
| 90925-01036 | ||||
| 90925-01037 | ||||
| 90925-01038 | ||||
| 90925-01040 | ||||
| 90925-01041 | ||||
| 90925-01042 | ||||
| 90925-01043 | ||||
| 90925-01045 | ||||
| 90925-01046 | ||||
| 90925-01047 | ||||
| 90925-01052 | ||||
| 90925-01053 | ||||
| 90925-01055 | ||||
| 90925-01056 | ||||
| 90925-01058 | ||||
| 90925-01059 | ||||
| 90925-01060 | ||||
