TX50-YTKES (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003- )

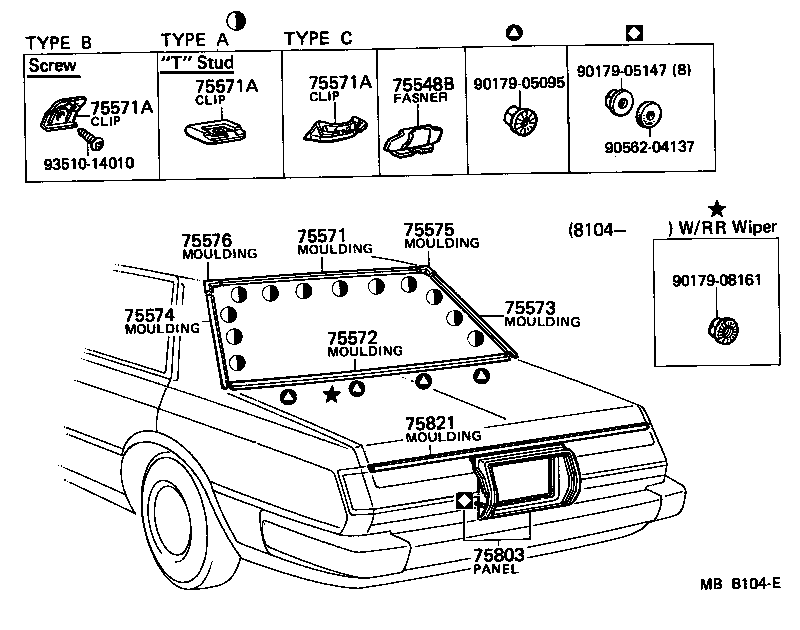

Click highlighted areas on diagram

diagram 75548B 75571 75571A 75571A 75571A 75572 75573 75574 75575 75576 75803 75821 9017905095 9017905147 9017908161 9056204137 9351014010
Part # Description Qty Price
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

GX5#,MX51,TX50

TYPE B

 12
75545-30021

GX5#,MX51,TX50

TYPE A

 12
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

GX5#,MX51,TX50

TYPE B

 12
75545-30021

GX5#,MX51,TX50

TYPE A

 12
75571A - CLIP(FOR BACK WINDOW MOULDING SET)
75545-30040

GX5#,MX51,TX50

TYPE B

 12
75545-30021

GX5#,MX51,TX50

TYPE A

 12
75572 - MOULDING, BACK WINDOW, LOWER
75507-22010

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75573 - MOULDING, BACK WINDOW SIDE, RH
75573-22060

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75574 - MOULDING, BACK WINDOW SIDE, LH
75574-22040

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75575 - MOULDING, BACK WINDOW CORNER, UPPER RH
75581-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75576 - MOULDING, BACK WINDOW CORNER, UPPER LH
75581-22030

GX5#,61,LX60,MX51,61,SX60,TX50

 1
75803 - PANEL SUB-ASSY, BODY LOWER BACK FINISH CENTER
75803-29115

GX5#,MX51,TX50

 1
75821 - MOULDING, LUGGAGE COMPARTMENT DOOR BACK
75813-22050

GX5#,MX51,TX50

 1
Common parts
90179-05095
90179-05147
90179-08161
90562-04137
93510-14010
