TX50-YTKES (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003-8208)TX50

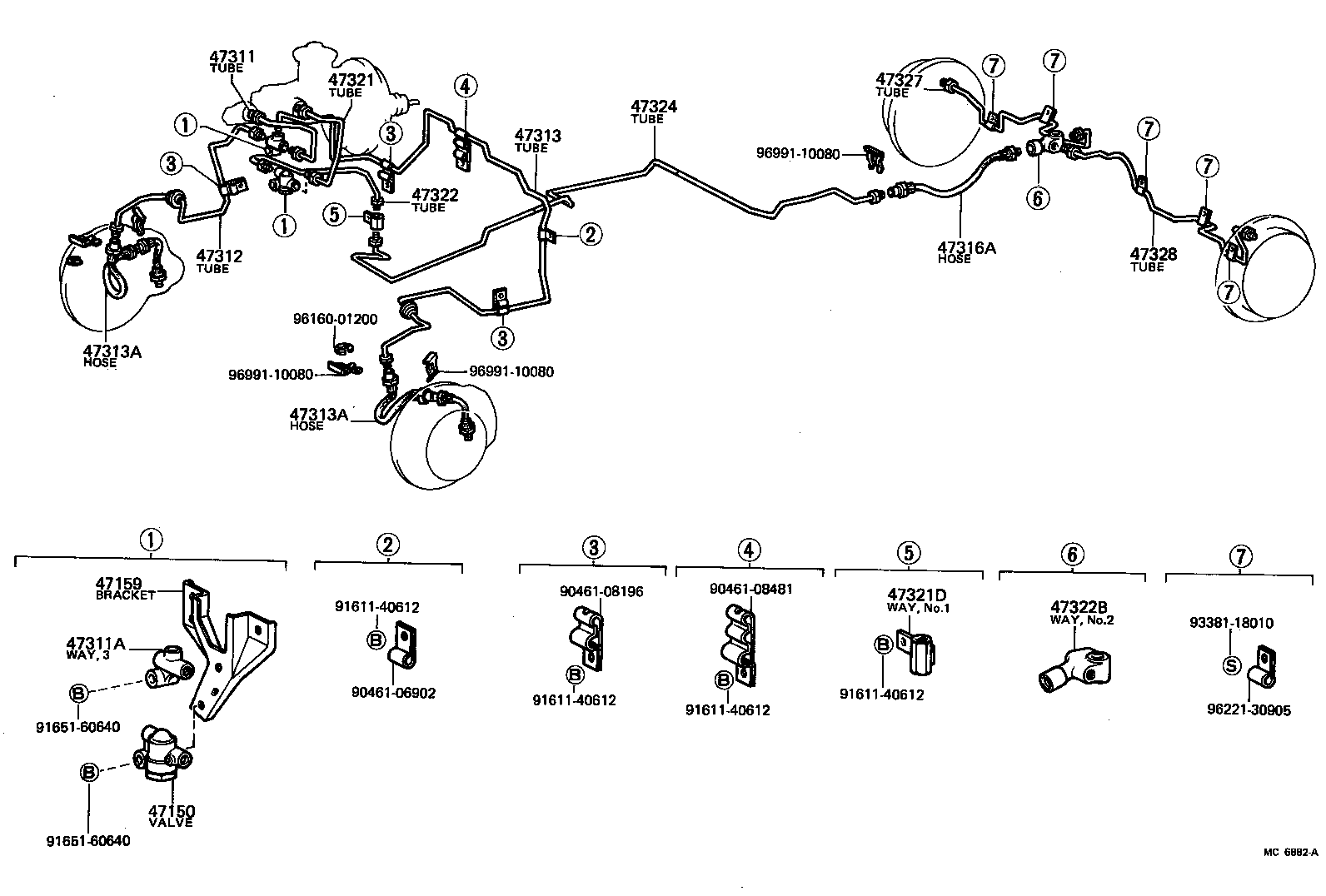

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 47150-12031 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-22100 |
GX50,LX60,SX60,TX50 |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-22190 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10002 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-22060 |
GX5#,61,LX60,SX60,TX50 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-22190 |
GX5#,61,LX60,SX60,TX50 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02407 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02407 |
GX5#,61,LX60,MX51,61,SX60,TX50 |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32805 |
GX50,TX50 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-22040 |
GX50,61,LX60,SX60,TX50..CTM,SCM,SDX |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10036 |
TX50 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-22090 |
TX50 |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10120 |
GX50,TX50 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-22100 |
TX50 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-22050 |
GX50,TX50 |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-22050 |
GX50,TX50 |
1 | ||
| Common parts | ||||
| 90461-06902 | ||||
| 90461-08196 | ||||
| 90461-08481 | ||||
| 91611-40612 | ||||
| 91651-60640 | ||||
| 93381-18010 | ||||
| 96160-01200 | ||||
| 96221-30905 | ||||
| 96991-10080 | ||||
