TX50-YTKES (1980)
Toyota Cresta
Production
Mar 1980
-
Aug 1982
Engine
13TU
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8003- )MTM

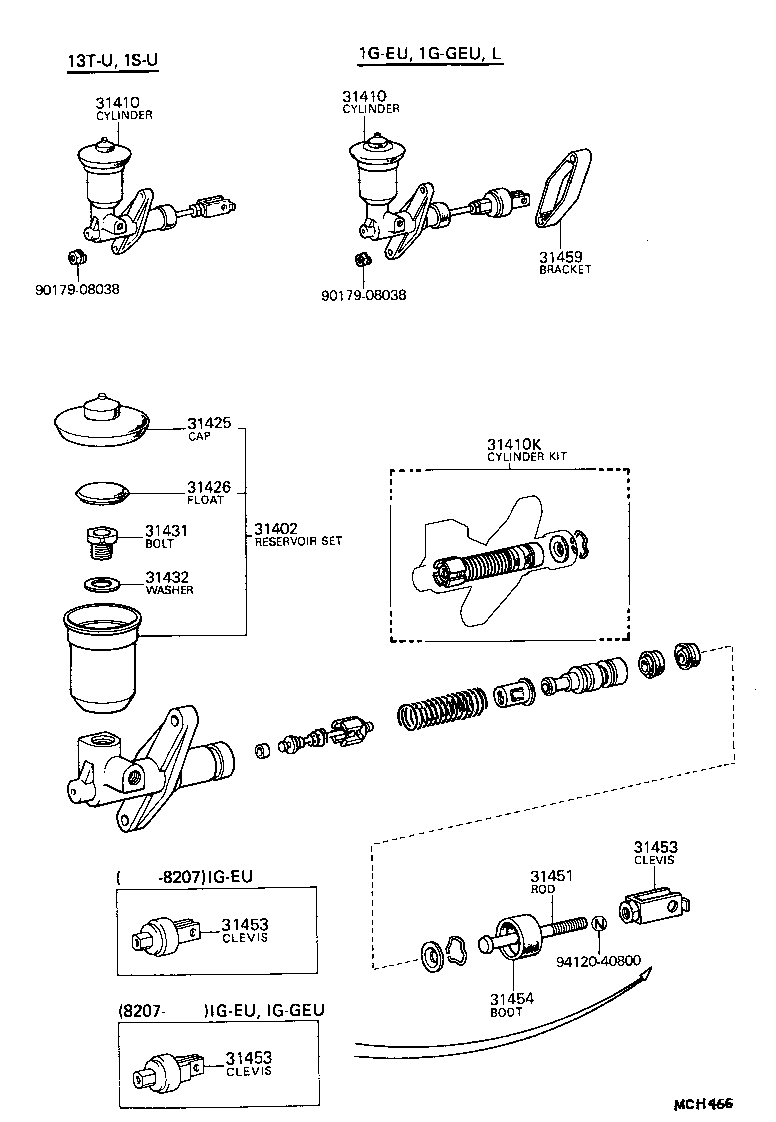

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 47202-12050 |
GX5#,TX50..MTM |
1 | ||
| 47202-12050 |
TX50..4F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-22070 |
TX50..4F |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-22070 |
TX50..4F |
1 | ||
| 31410K - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-20050 |
TX50..4F |
1 | ||
| 31425 - CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-20040 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 31431 - BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET | ||||
| 47231-30010 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 31432 - WASHER, CLUTCH RESERVOIR SET BOLT | ||||
| 47232-30010 |
GX5#,61,LX60,SX60,TX50..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-20050 |
SX60,TX50..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
SX60,TX50..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
SX60,TX50..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-22010 |
SX60,TX50..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-14010 |
GX5#,SX60,TX50..MTM |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
| 94120-40800 | ||||
