TX50-YTKES (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)13TU

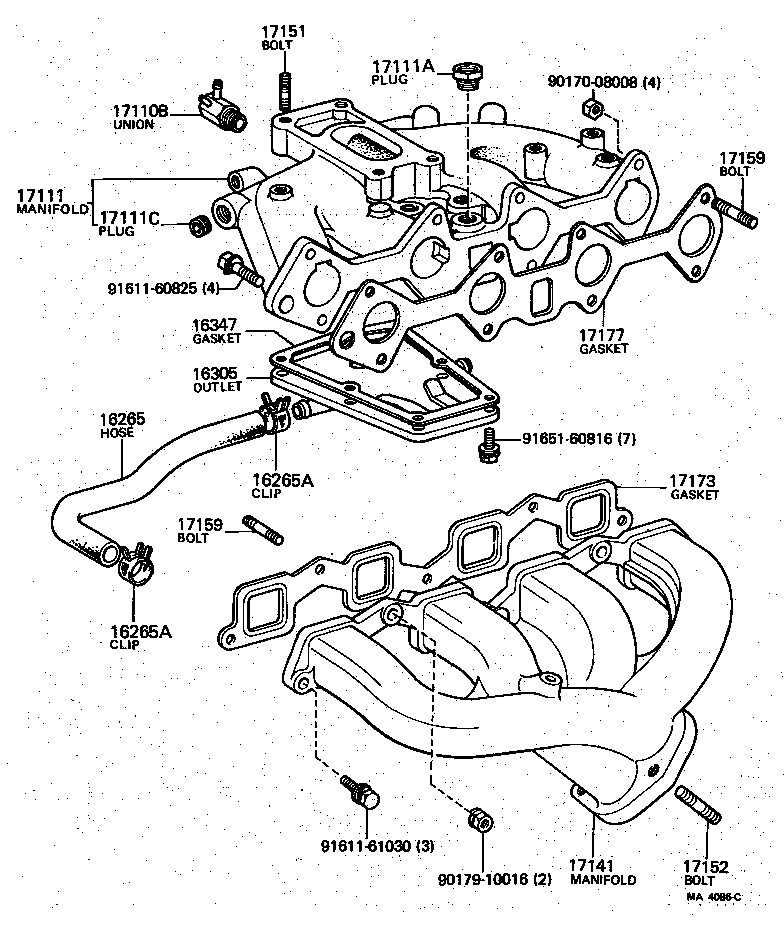

Click highlighted areas on diagram

diagram 16265 16265A 16265A 16305 16347 17110B 17111 17111A 17111C 17141 17151 17152 17159 17159 17173 17177 9017008008 9017910016 9161160825 9161161030 9165160816
Part # Description Qty Price
16265 - HOSE, INTAKE MANIFOLD WATER
90445-21611

13TU..TX50

 1
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-20005

13TU..TX50

 2
90467-20004

13TU..TX50

 2
16265A - CLAMP OR CLIP, HOSE(FOR INTAKE MANIFOLD WATER)
90467-20005

13TU..TX50

 2
90467-20004

13TU..TX50

 2
16305 - OUTLET SUB-ASSY, WATER BY-PASS
16305-25011

13TU..TX50

 1
16347 - GASKET, WATER BY-PASS
16347-25012

13TU..TX50

 1
16347-25011

13TU..TX50

 1
17110B - UNION(FOR VENTILATION HOSE TO MANIFOLD)
90404-53036

13TU..TX50..4F

 1
17111 - MANIFOLD, INTAKE
17111-26901

13TU..TX50

 1
17111A - PLUG, NO.1
90345-53002

13TU..TX50

 1
90345-53007

13TU..TX50

 1
17111C - PLUG, NO.3
90344-53008

13TU..TX50

 1
17141 - MANIFOLD, EXHAUST
17141-27011

13TU..TX50

 1
17151 - BOLT, STUD(FOR MANIFOLD TO CARBURETOR)
90116-08023

13TU..TX50

L=41,S=14&14

 4
17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE)
90116-10017

13TU..TX50

L=41.5,S=14&20

 3
90116-10056

13TU..TX50

L=44,S=14&21

 3
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

13TU..TX50

EXHAUST MANIFOLD

 2
90116-08035

13TU..TX50

INTAKE MANIFOLD

 4
17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)
92122-61025

13TU..TX50

EXHAUST MANIFOLD

 2
90116-08035

13TU..TX50

INTAKE MANIFOLD

 4
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-25012

13TU..TX50

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-25030

13TU..TX50

 1
Common parts
90170-08008
90179-10016
91611-60825
91611-61030
91651-60816
