TX50-YTHES (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)3FC

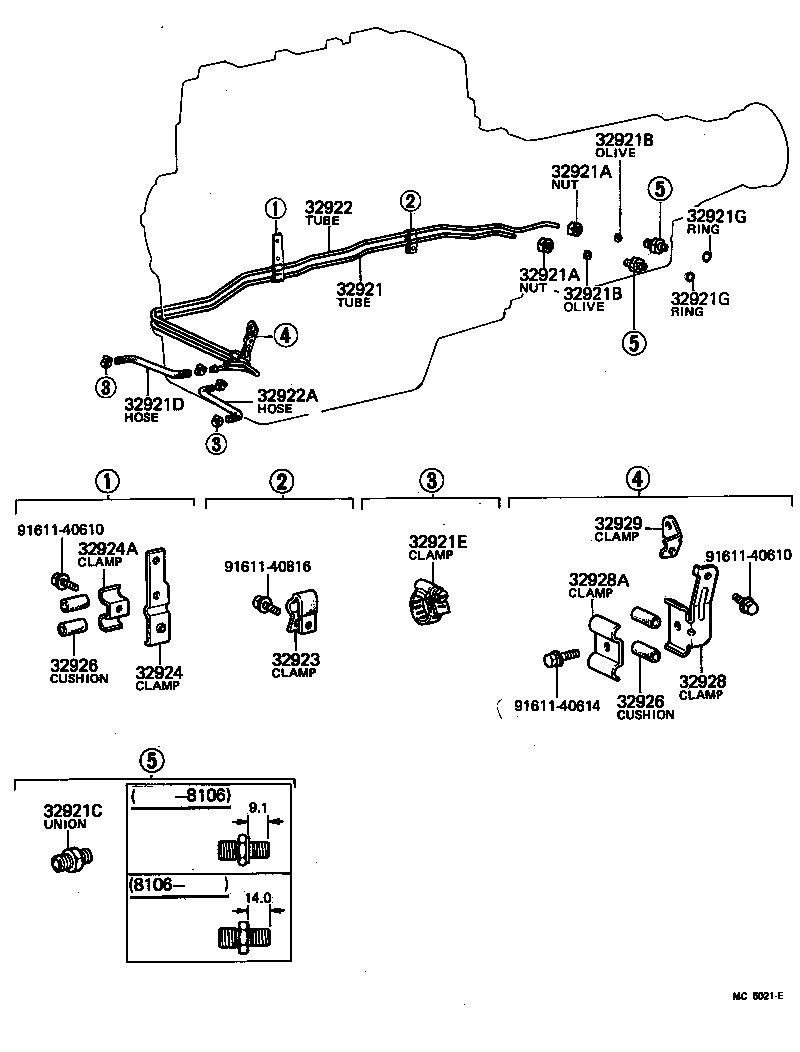

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921B 32921B 32921C 32921D 32921E 32921G 32921G 32922 32922A 32923 32924 32924A 32926 32926 32928 32928A 32929 9161140610 9161140610 9161140614 9161140816
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-22070

TX50..3FC

 1
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

GX5#,MX51,TX50..ATM

 2
32921A - NUT, UNION(FOR OIL COOLER TUBE)
90402-13041

GX5#,MX51,TX50..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

GX5#,MX51,TX50..ATM

 2
32921B - OLIVE(FOR OIL COOLER TUBE)
96395-71400

GX5#,MX51,TX50..ATM

 2
32921C - UNION(FOR OIL COOLER TUBE)
90404-13265

TX50..3FC

 2
90404-13003

TX50..3FC

 2
32921D - HOSE(FOR OIL COOLER INLET)
90445-14259

MX51,61,TX50..ATM

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

GX5#,61,LX60,MX51,61,SX60,TX50..ATM

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-22090

TX50..3FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
90445-14274

TX50..3FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08039

TX50..3FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-14010

TX50..3FC

 1
32924A - CLAMP(FOR OIL COOLER TUBE, NO.2)
90462-12085

GX5#,61,LX60,TX50..ATM

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

GX5#,61,LX60,MX51,SX60,TX50..ATM

長さ=25,内径=8

 8
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

GX5#,61,LX60,MX51,SX60,TX50..ATM

長さ=25,内径=8

 8
32928 - CLAMP, FLEXIBLE HOSE, NO.1
32928-22011

TX50..3FC

 1
32928A - CLAMP(FOR FLEXIBLE HOSE CLAMP)
90462-12085

GX5#,61,SX60,TX50..ATM

 2
32929 - CLAMP, FLEXIBLE HOSE, NO.2
32929-22010

TX50..3FC

 1
Common parts
91611-40610
91611-40614
91611-40816
