TX50-YTHES (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)3FC

Click highlighted areas on diagram

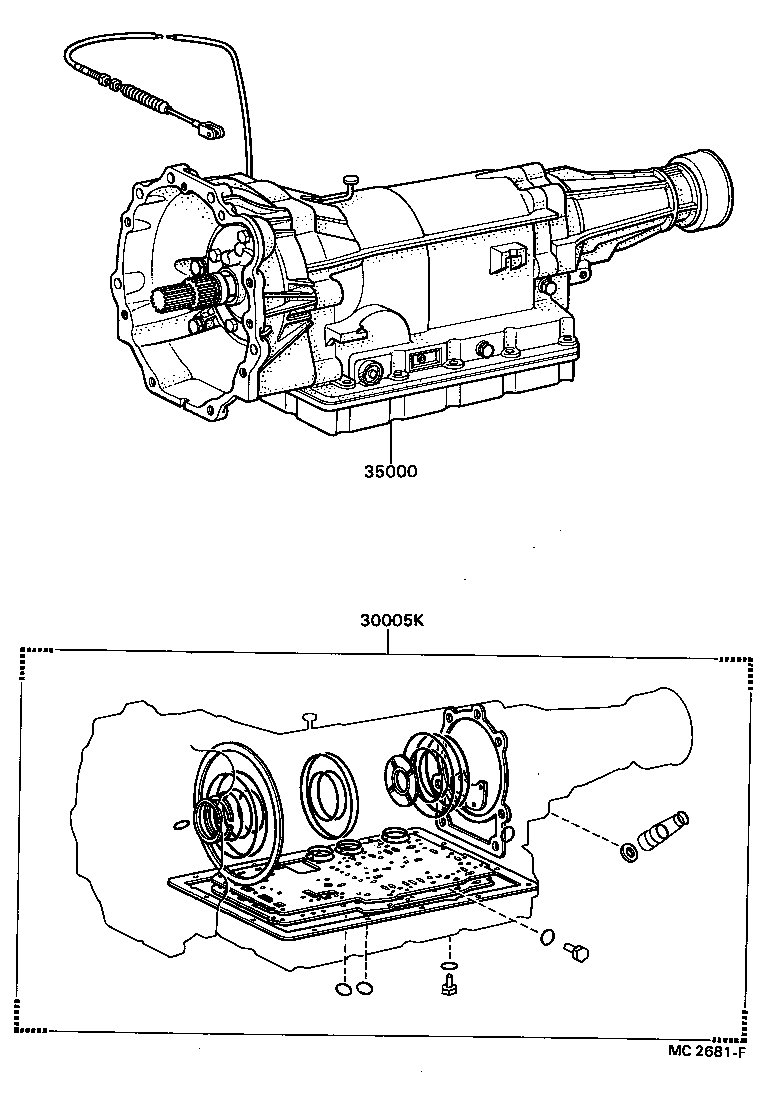

diagram 30005K 35000
Part # Description Qty Price
30005K - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-22021

TX50..3FC

 1
04351-22023

TX50..3FC

 1
04351-22022

TX50..3FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-22670

TX50..3FC

 1
35000-22461

TX50..3FC

 1
