TX50-YTHES (1980)

Toyota Cresta

Production Mar 1980 - Aug 1982
Engine 13TU
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8003-8208)13TU

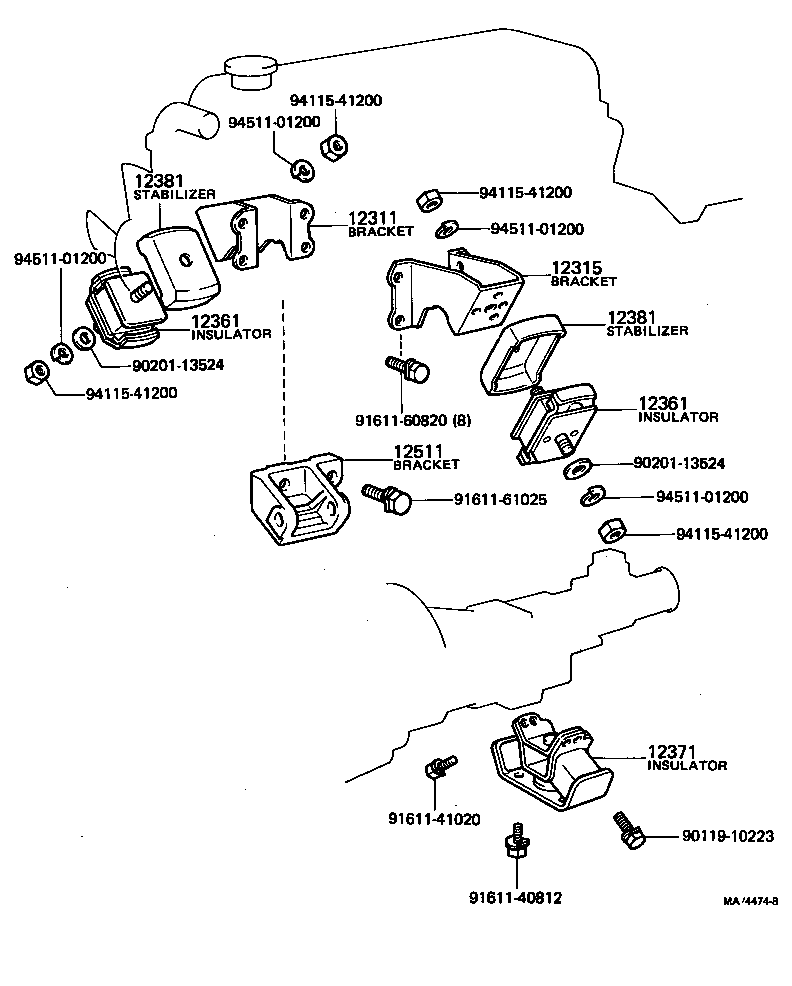

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12381 12381 12511 9011910223 9020113524 9020113524 9161140812 9161141020 9161160820 9161161025 9411541200 9411541200 9411541200 9411541200 9451101200 9451101200 9451101200 9451101200
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-25051

13TU..TX50

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12312-25041

13TU..TX50

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

13TU..TX50

TOYOGOMU

 2
12361-18010

13TU..TX50

MARUYASU.TOKAIGOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-18020

13TU..TX50

TOYOGOMU

 2
12361-18010

13TU..TX50

MARUYASU.TOKAIGOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-34030

13TU..TX50

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-18020

13TU..TX50

TOYOGOMU

 2
12381-18010

13TU..TX50

MARUYASU.TOKAIGOMU

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-18020

13TU..TX50

TOYOGOMU

 2
12381-18010

13TU..TX50

MARUYASU.TOKAIGOMU

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-25010

13TU..TX50

 1
Common parts
90119-10223
90201-13524
91611-40812
91611-41020
91611-60820
91611-61025
94115-41200
94511-01200
