SX90-CEPNK (1992)
Toyota Cresta

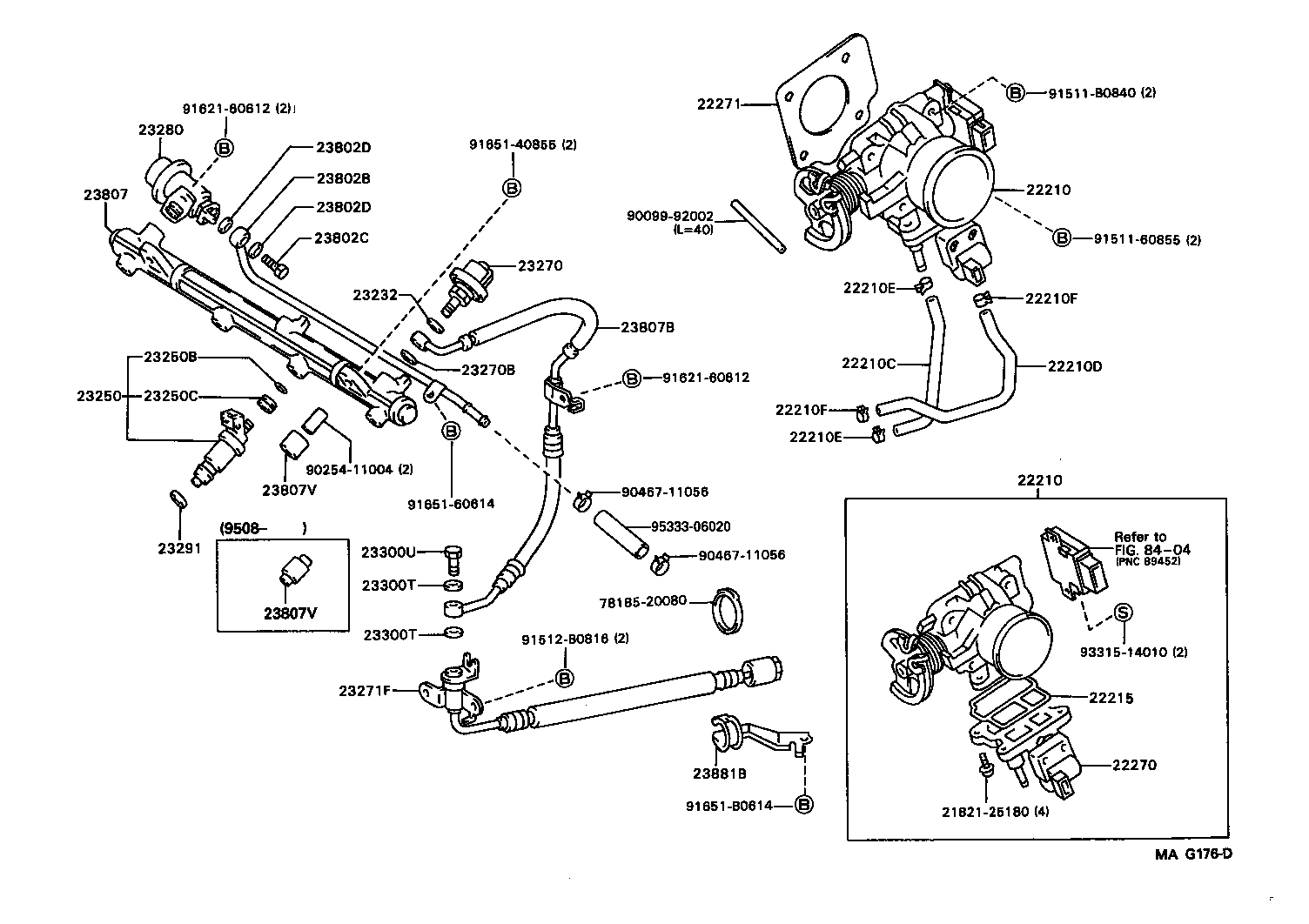

(9210- )4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A020 |
4SFE..SX90..ATM |
1 | ||
| 22210-7A260 |
4SFE..SX90..ATM |
1 | ||
| 22210 - BODY ASSY, THROTTLE | ||||
| 22210-7A020 |
4SFE..SX90..ATM |
1 | ||
| 22210-7A260 |
4SFE..SX90..ATM |
1 | ||
| 22210C - HOSE, WATER BY-PASS, NO.1 | ||||
| 16283-74030 |
4SFE..SX90 |
1 | ||
| 22210D - HOSE, WATER BY-PASS, NO.2 | ||||
| 16282-74060 |
4SFE..SX90 |
1 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
4SFE..SX90 |
2 | ||
| 22210E - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE, NO.1) | ||||
| 90467-13050 |
4SFE..SX90 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
4SFE..SX90 |
2 | ||
| 22210F - CLAMP OR CLIP, HOSE (FOR WATER BY-PASS HOSE, NO.2) | ||||
| 90467-13050 |
4SFE..SX90 |
2 | ||
| 22215 - GASKET, THROTTLE BODY COVER | ||||
| 22215-74400 |
4SFE..SX90 |
1 | ||
| 22270 - VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY) | ||||
| 22270-74150 |
4SFE..SX90..ATM |
1 | ||
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74061 |
4SFE..SX90 |
1 | ||
| 22271-74062 |
4SFE..SX90 |
1 | ||
| 23232 - GASKET(FOR FUEL PUMP HOSE) | ||||
| 23232-41081 |
4SFE..SX90 |
1 | ||
| 23279-74010 |
4SFE..SX90 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74130 |
4SFE..SX90 |
4 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90301-07001 |
4SFE..SX90 |
4 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90480-13005 |
4SFE..SX90 |
4 | ||
| 23270 - DAMPER ASSY, FUEL PRESSURE PULSATION | ||||
| 23207-74010 |
4SFE..SX90 |
1 | ||
| 23207-46010 |
4SFE..SX90 |
1 | ||
| 23270B - GASKET(FOR PULSATION DAMPER HOSE) | ||||
| 23232-41081 |
4SFE..SX90 |
1 | ||
| 23279-74010 |
4SFE..SX90 |
1 | ||
| 23271F - HOSE, FUEL | ||||
| 23271-74420 |
4SFE..SX90 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74150 |
4SFE..SX90 |
1 | ||
| 23280-74100 |
4SFE..SX90 |
1 | ||
| 23280-74151 |
4SFE..SX90 |
1 | ||
| 23291 - INSULATOR, INJECTOR VIBRATION | ||||
| 23291-41010 |
4SFE..SX90 |
4 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4SFE..SX90 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12026 |
4SFE..SX90 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12029 |
4SFE..SX90 |
1 | ||
| 23802B - PIPE SUB-ASSY, FUEL, NO.2 | ||||
| 23802-74062 |
4SFE..SX90 |
1 | ||
| 23802C - BOLT, UNION(FOR FUEL PIPE NO.2) | ||||
| 90401-08004 |
4SFE..SX90 |
1 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08014 |
4SFE..SX90 |
2 | ||
| 23802D - GASKET(FOR FUEL PIPE NO.2) | ||||
| 90430-08014 |
4SFE..SX90 |
2 | ||
| 23807 - PIPE SUB-ASSY, FUEL DELIVERY | ||||
| 23807-74040 |
4SFE..SX90 |
1 | ||
| 23807B - HOSE, FUEL DELIVERY PIPE | ||||
| 23271-74410 |
4SFE..SX90 |
1 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
4SFE..SX90 |
2 | ||
| 90561-08053 |
4SFE..SX90 |
2 | ||
| 23807V - SPACER, NO.1(FOR DELIVERY PIPE) | ||||
| 90560-11020 |
4SFE..SX90 |
2 | ||
| 90561-08053 |
4SFE..SX90 |
2 | ||
| 23881B - BRACKET, FUEL HOSE | ||||
| 23881-74010 |
4SFE..SX90 |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 78185-20080 | ||||
| 90099-92002 | ||||
| 90254-11004 | ||||
| 90467-11056 | ||||
| 91511-60855 | ||||
| 91511-B0840 | ||||
| 91512-B0816 | ||||
| 91621-60612 | ||||
| 91651-40855 | ||||
| 91651-60614 | ||||
| 91651-B0614 | ||||
| 93315-14010 | ||||
| 95333-06020 | ||||
| Linked diagrams | ||||
| 8404 | ||||

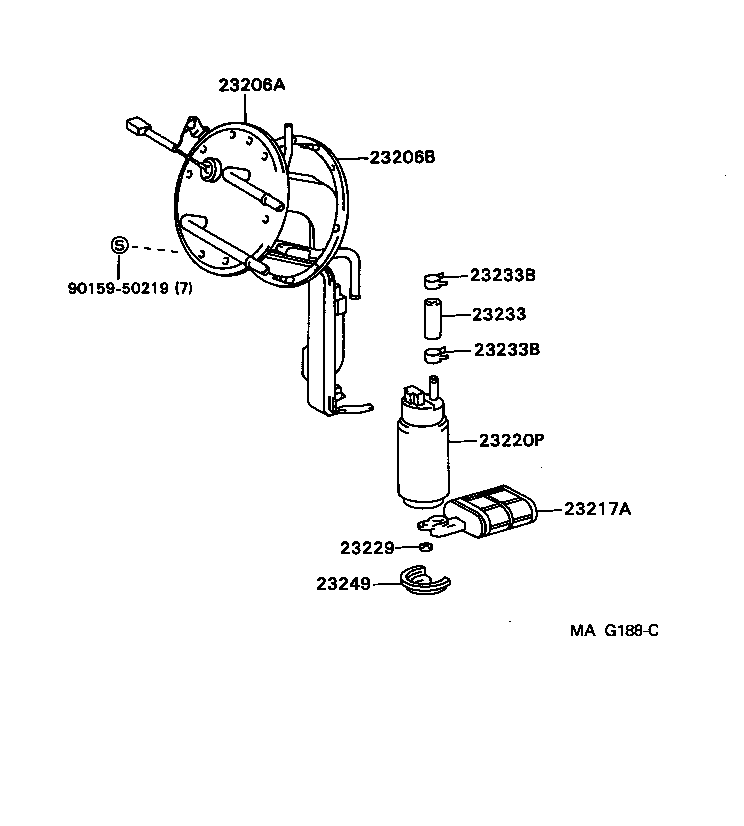

(9210- )4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74700 |
4SFE..SX90 |
1 | ||
| 23206-74700 |
4SFE..SX90 |
1 | ||
| 23206-74700 |
4SFE..SX90 |
1 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 77169-14010 |
4SFE..SX90 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-46011 |
4SFE..SX90 |
1 | ||
| 23217-46011 |
4SFE..SX90 |
1 | ||
| 23217-46011 |
4SFE..SX90 |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23221-46010 |
4SFE..SX90 |
1 | ||
| 23221-46010 |
4SFE..SX90 |
1 | ||
| 23221-46010 |
4SFE..SX90 |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4SFE..SX90 |
1 | ||
| 23229-16010 |
4SFE..SX90 |
1 | ||
| 23229-16010 |
4SFE..SX90 |
1 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-63010 |
4SFE..SX90 |
1 | ||
| 23239-63010 |
4SFE..SX90 |
1 | ||
| 23239-63010 |
4SFE..SX90 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 90467-13054 |
4SFE..SX90 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74610 |
4SFE..SX90 |
1 | ||
| 23249-74610 |
4SFE..SX90 |
1 | ||
| 23249-74610 |
4SFE..SX90 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||

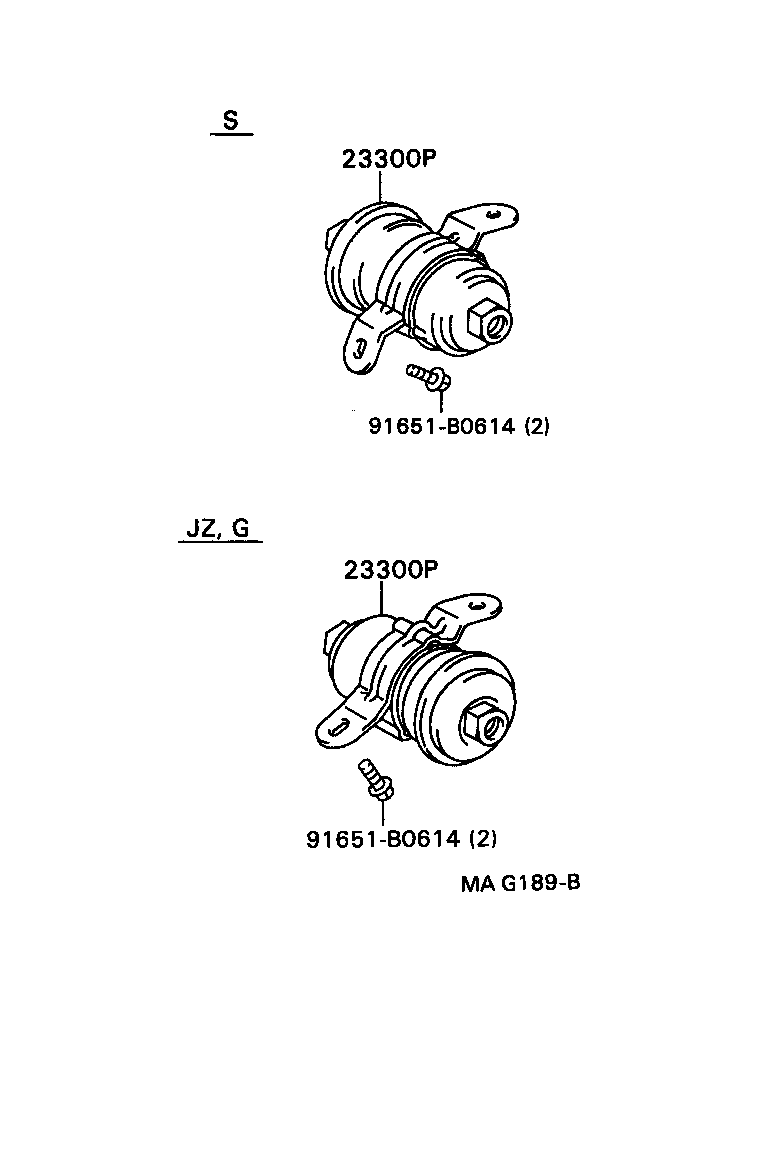

(9210- )4SFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| 23300-74180 |
4SFE..SX90 |
1 | ||
| Common parts | ||||
| 91651-B0614 | ||||
