SX90-CEPEK (1992)
Toyota Cresta
Production
Oct 1992
-
Sep 1996
Engine
4SFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

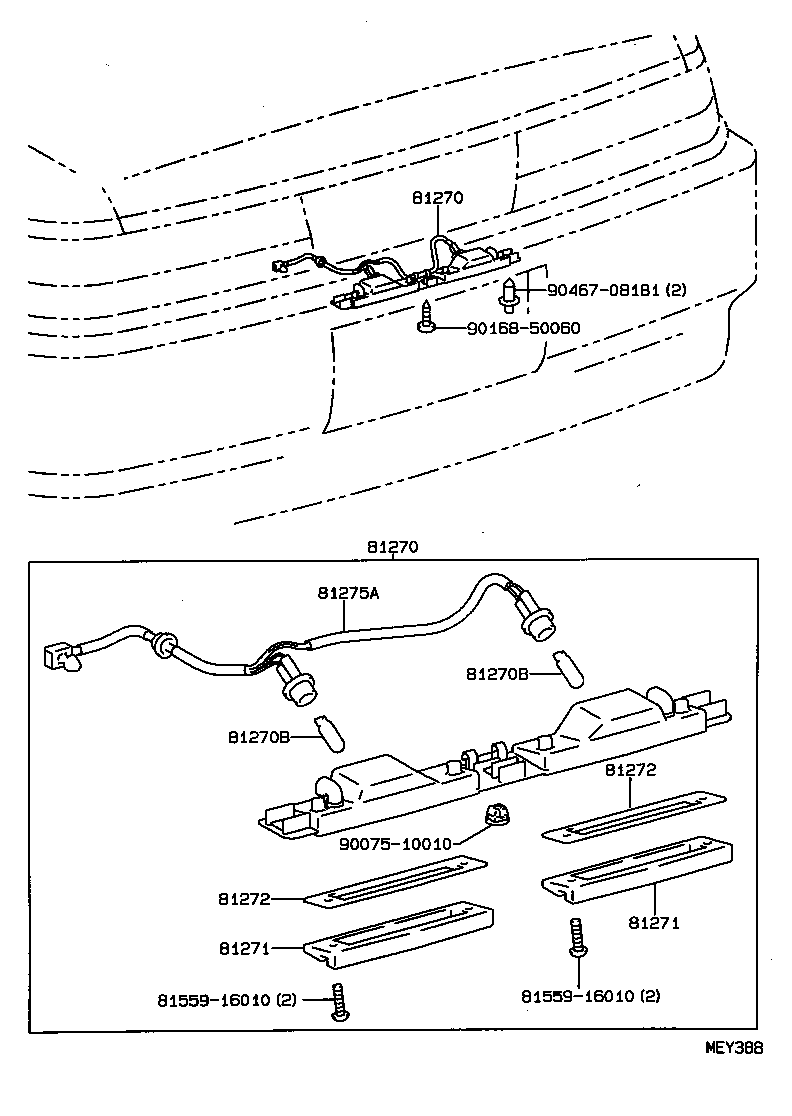

(9210-9309)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270-22271 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270-22271 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GX90,JZX9#,LX90,SX90 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GX90,JZX9#,LX90,SX90 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 81559-16010 | ||||
| 90075-10010 | ||||
| 90168-50060 | ||||
| 90467-08181 | ||||

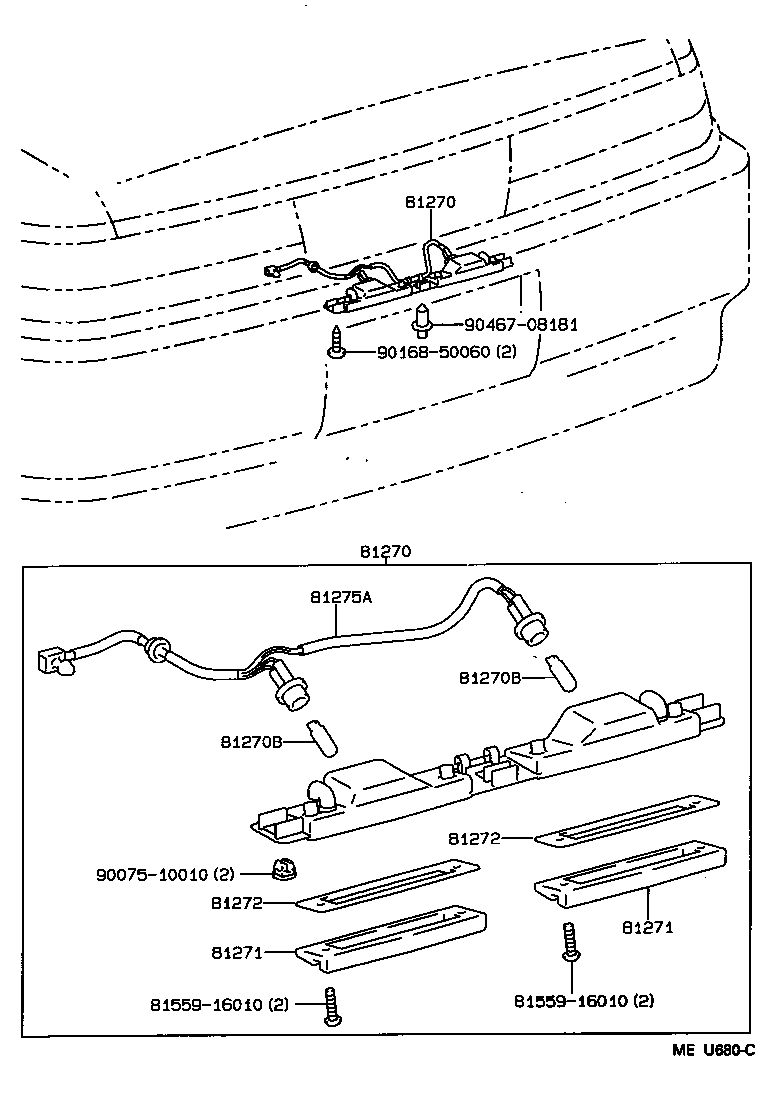

(9309- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270-22271 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270 - LAMP ASSY, LICENSE PLATE | ||||
| 81270-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270-22271 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GX90,JZX9#,LX90,SX90 12V 5W |
2 | ||
| 81270B - BULB (FOR LICENSE PLATE LAMP) | ||||
| 99132-12050 |
GX90,JZX9#,LX90,SX90 12V 5W |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81271 - LENS, LICENSE PLATE LAMP | ||||
| 81271-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81272 - GASKET, LICENSE PLATE LAMP LENS | ||||
| 81272-17030 |
GX90,JZX9#,LX90,SX90 |
2 | ||
| 81275A - CORD, LICENSE PLATE LAMP | ||||
| 81275-22270 |
GX90,JZX9#,LX90,SX90 |
1 | ||
| Common parts | ||||
| 81559-16010 | ||||
| 90075-10010 | ||||
| 90168-50060 | ||||
| 90467-08181 | ||||
