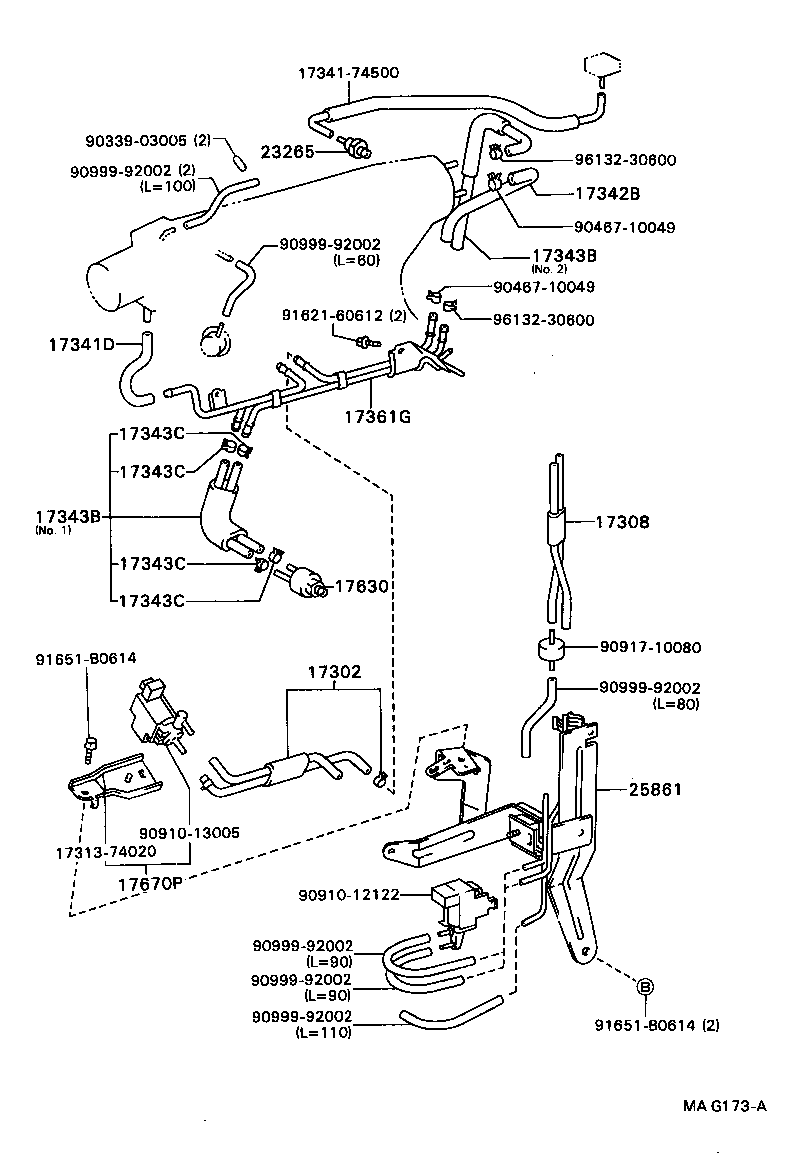

Toyota Cresta SX90 VACUUM PIPING

Part #	Description	Period	Qty
17302 - HOSE SUB-ASSY, AIR
17302-74090	4SFE..SX90	10/1992 - 09/1996	1
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74330	4SFE..SX90	10/1992 - 09/1996	1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74270	4SFE..SX90	10/1992 - 09/1996	1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74080	4SFE..SX90	10/1992 - 09/1996	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74080	4SFE..SX90 NO.1	10/1992 - 09/1996	1
17343-74150	4SFE..SX90 NO.2	10/1992 - 09/1996	1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74080	4SFE..SX90 NO.1	10/1992 - 09/1996	1
17343-74150	4SFE..SX90 NO.2	10/1992 - 09/1996	1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	4SFE..SX90	10/1992 - 04/1996	4
90467-10099	4SFE..SX90	04/1996 - 09/1996	4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	4SFE..SX90	10/1992 - 04/1996	4
90467-10099	4SFE..SX90	04/1996 - 09/1996	4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	4SFE..SX90	10/1992 - 04/1996	4
90467-10099	4SFE..SX90	04/1996 - 09/1996	4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400	4SFE..SX90	10/1992 - 04/1996	4
90467-10099	4SFE..SX90	04/1996 - 09/1996	4
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74120	4SFE..SX90	10/1992 - 09/1996	1
17630 - VALVE ASSY, AIR CONTROL
17630-70020	4SFE..SX90	10/1992 - 09/1996	1
17670P - VALVE ASSY, AIR BY-PASS
17670-74010	4SFE..SX90	10/1992 - 09/1996	1
23265 - FILTER, GAS, NO.1
90917-11022	4SFE..SX90	10/1992 - 08/1993	1
90917-11022	4SFE..SX90	08/1993 - 09/1996	1
25861 - BRACKET, VACUUM SWITCHING VALVE
25861-74060	4SFE..SX90	10/1992 - 09/1996	1
Common parts
17313-74020
17341-74500
90339-03005
90467-10049
90910-12122
90910-13005
90917-10080
90999-92002
91621-60612
91651-B0614
96132-30600

SX90-CEPEK (1992)

(9210- )4SFE

(9210- )4SFE

Part Price Details

Part #	Description	Period	Qty	Price
Common parts
90999-92002
90999-92003
90999-92004
90999-92006
90999-92007
90999-92008
