SX80Y-CEPRM (1988)
Toyota Cresta
Production
Aug 1988
-
Aug 1990
Engine
4SFI
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )SX80..4FC

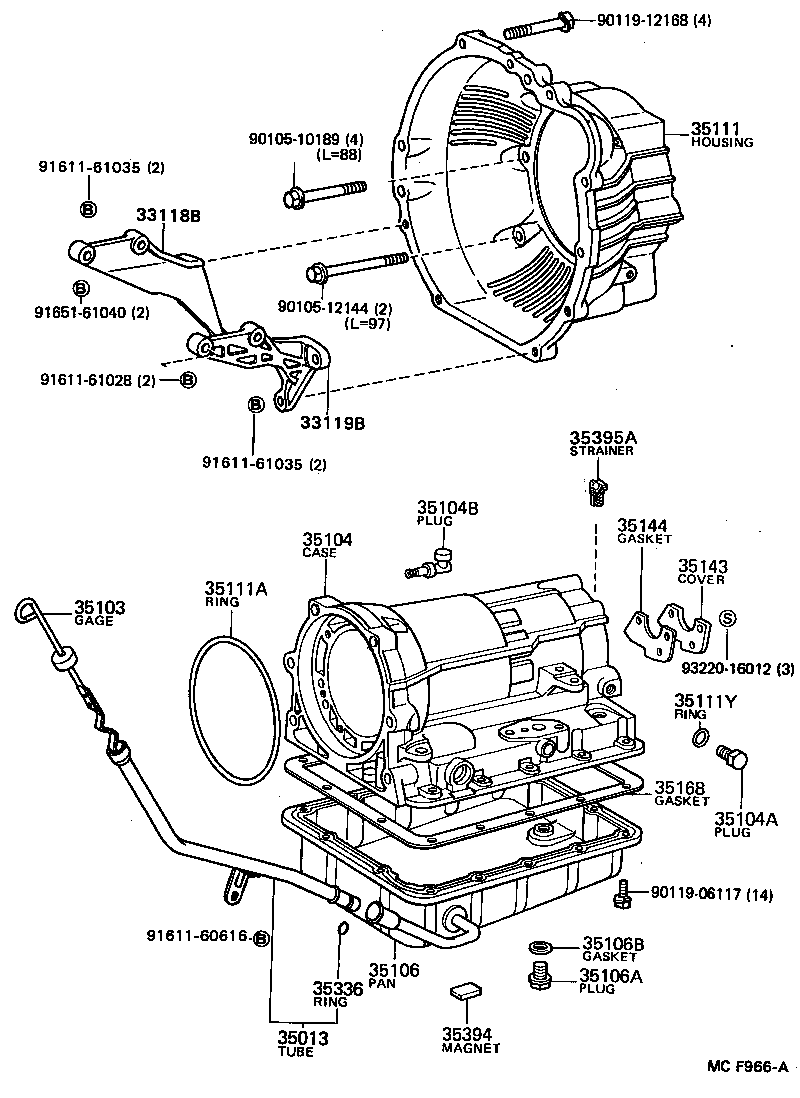

Click highlighted areas on diagram
A42D
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33118B - PLATE, STIFFENER, RH(ATM) | ||||
| 33118-14033 |
SX80..4FC |
1 | ||
| 33119B - PLATE, STIFFENER, LH(ATM) | ||||
| 33119-14050 |
SX80..4FC |
1 | ||
| 35013 - TUBE SUB-ASSY, TRANSMISSION OIL FILLER | ||||
| 35013-22220 |
SX80..4FC |
1 | ||
| 35013-22320 |
SX80..4FC |
1 | ||
| 35103 - GAGE SUB-ASSY, TRANSMISSION OIL LEVEL | ||||
| 35103-22100 |
SX80..4FC |
1 | ||
| 35104 - CASE SUB-ASSY, AUTOMATIC TRANSMISSION | ||||
| 35104-26021 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35104A - PLUG, AUTOMATIC TRANSMISSION CASE | ||||
| 90341-08001 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35104B - PLUG, BREATHER, NO.1 (ATM) | ||||
| 90930-03108 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106 - PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL | ||||
| 35106-30060 |
GX81,SX80..4FC..(CI,HTWC) |
1 | ||
| 35106A - PLUG SUB-ASSY, DRAIN (ATM) | ||||
| 90341-10006 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35106B - GASKET, DRAIN PLUG (ATM) | ||||
| 35178-30010 |
GX81,JZX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35111 - HOUSING, AUTOMATIC TRANSMISSION | ||||
| 35111-22070 |
SX80..4FC |
1 | ||
| 35111A - RING, O (FOR AUTOMATIC TRANSMISSION HOUSING) | ||||
| 90301-99054 |
GX81,LX80,SX80..4FC..(CI,HTWC,TD) |
1 | ||
| 35111Y - RING, O (FOR AUTOMATIC TRANSMISSION CASE) | ||||
| 90301-06196 |
GX81,LX80,MX83,SX80..4FC |
1 | ||
| 35143 - COVER, TRANSMISSION CASE, REAR | ||||
| 35143-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35144 - GASKET, TRANSMISSION CASE REAR COVER | ||||
| 35144-22010 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35168 - GASKET, AUTOMATIC TRANSMISSION OIL PAN | ||||
| 35168-22011 |
GX81,LX80,SX80,YX80..ATM..(CI,HTWC,LPG,TD) |
1 | ||
| 35336 - RING, O (FOR TRANSMISSION OIL FILLER TUBE) | ||||
| 90301-09173 |
GX81,LX80,MX83,SX80,YX80..ATM |
1 | ||
| 35394 - MAGNET, OIL CLEANER (FOR TRANSMISSION) | ||||
| 35394-30011 |
LX80,SX80,YX80..ATM |
1 | ||
| 35395A - STRAINER, GOVERNOR OIL | ||||
| 35395-40010 |
GX81,SX80,YX80..ATM..(CI,HTWC,LPG) |
1 | ||
| Common parts | ||||
| 90105-10189 | ||||
| 90105-12144 | ||||
| 90119-06117 | ||||
| 90119-12168 | ||||
| 91611-60616 | ||||
| 91611-61028 | ||||
| 91611-61035 | ||||
| 91651-61040 | ||||
| 93220-16012 | ||||
