SX80Y-CEPRM (1988)
Toyota Cresta

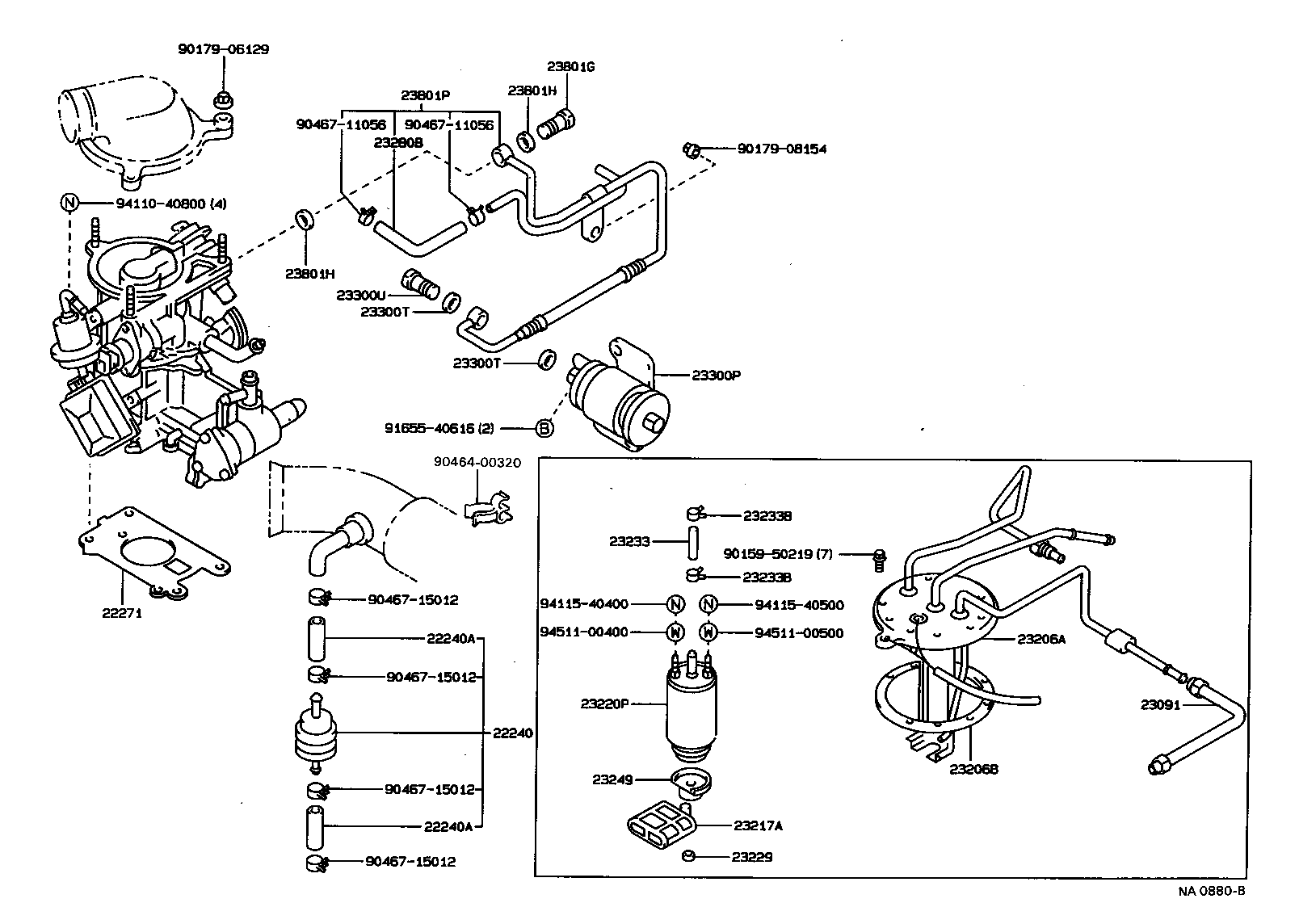

ILLUST NO. 1 OF 2(8808-9008)4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22271 - GASKET, THROTTLE BODY | ||||
| 22271-74040 |
4SFI..SX80 |
1 | ||
| 22271-74041 |
4SFI..SX80 |
1 | ||
| 23091 - TUBE SUB-ASSY, FUEL PUMP | ||||
| 23091-70040 |
4SF#..SX80 |
1 | ||
| 23206A - BRACKET, FUEL PUMP | ||||
| 23206-74430 |
4SFI..SX80 |
2 | ||
| 23206-74431 |
4SFI..SX80 |
2 | ||
| 23206B - GASKET, FUEL PUMP BRACKET | ||||
| 77169-14010 |
4SF#..SX80 |
1 | ||
| 23217A - FILTER, FUEL PUMP | ||||
| 23217-16030 |
4SFI..SX80 NIPPONDENSO |
1 | ||
| 23217-16043 |
4SFI..SX80 AISAN |
1 | ||
| 23220P - PUMP ASSY, FUEL | ||||
| 23220-16084 |
4SFI..SX80 AISAN |
1 | ||
| 23220-43070 |
4SFI..SX80 NIPPONDENSO |
1 | ||
| 23229 - CLIP(FOR FUEL PUMP FILTER) | ||||
| 23229-16010 |
4SFI..SX80 |
2 | ||
| 23233 - HOSE, FUEL PUMP | ||||
| 23239-16010 |
4SFI..SX80 |
1 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
4SFI..SX80 |
2 | ||
| 23233B - CLIP(FOR FUEL PUMP HOSE) | ||||
| 90467-13001 |
4SFI..SX80 |
2 | ||
| 23249 - RUBBER, CUSHION(FOR FUEL PUMP) | ||||
| 23249-74150 |
4SFI..SX80 |
1 | ||
| 23280B - HOSE, FUEL PRESSURE REGULATOR RETURN | ||||
| 95333-06020 |
4SFI..SX80 *H,L=200 |
1 | ||
| 23300P - FILTER, FUEL(FOR EFI) | ||||
| 23300-79195 |
4SF#..SX80 |
1 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4SF#..SX80 |
2 | ||
| 23300T - GASKET(FOR FUEL FILTER) | ||||
| 90430-12005 |
4SF#..SX80 |
2 | ||
| 23300U - BOLT, UNION(FOR FUEL FILTER) | ||||
| 90401-12097 |
4SF#..SX80 |
1 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4SFI..SX80 *54 |
2 | ||
| 90430-12005 |
4SFI..SX80 |
2 | ||
| 90430-12005 |
4SFI..SX80 *54 |
2 | ||
| 23801H - GASKET(FOR FUEL PIPE) | ||||
| 90430-12005 |
4SFI..SX80 *54 |
2 | ||
| 90430-12005 |
4SFI..SX80 |
2 | ||
| 90430-12005 |
4SFI..SX80 *54 |
2 | ||
| 23801P - PIPE SUB-ASSY, FUEL, NO.1 | ||||
| 23801-74050 |
4SFI..SX80 |
1 | ||
| Common parts | ||||
| 90159-50219 | ||||
| 90179-06129 | ||||
| 90179-08154 | ||||
| 90464-00320 | ||||
| 90467-11056 | ||||
| 90467-15012 | ||||
| 91655-40616 | ||||
| 94110-40800 | ||||
| 94115-40400 | ||||
| 94115-40500 | ||||
| 94511-00400 | ||||
| 94511-00500 | ||||

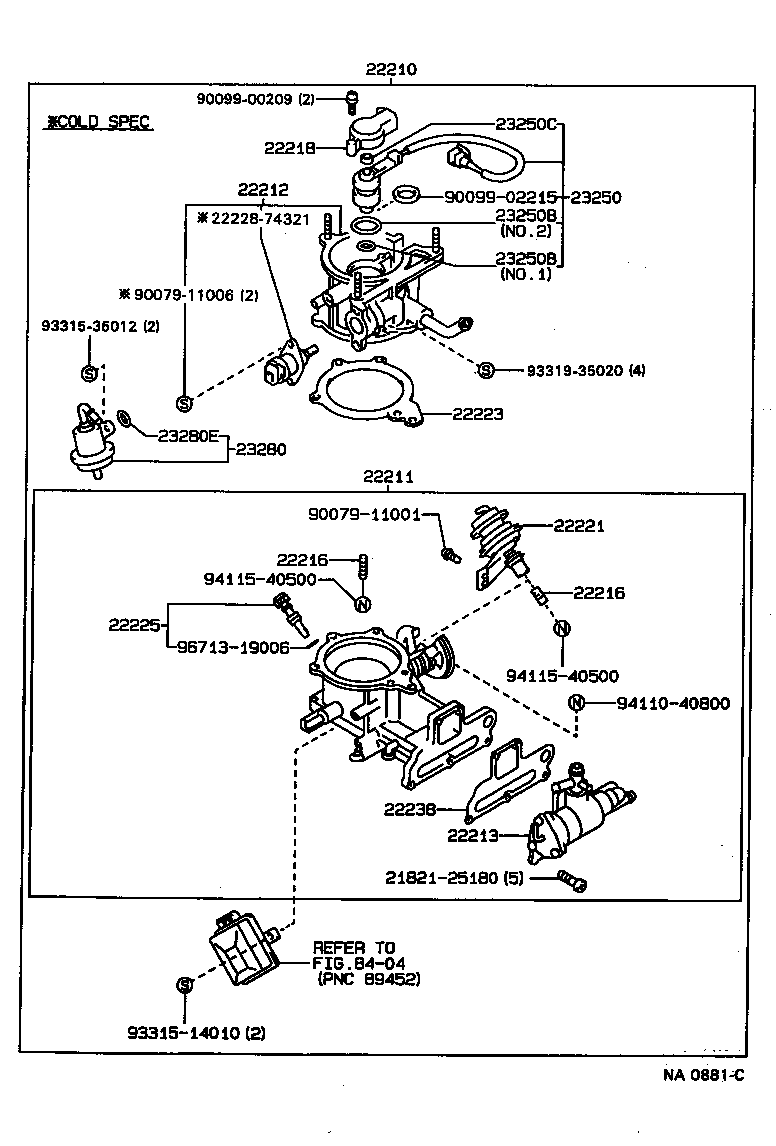

ILLUST NO. 2 OF 2(8808-9008)4SFI
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22210 - BODY ASSY, THROTTLE | ||||
| 22200-74041 |
4SFI..SX80 |
1 | ||
| 22200-74031 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74033 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74032 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74042 |
4SFI..SX80 |
1 | ||
| 22200-74040 |
4SFI..SX80 |
1 | ||
| 22200-74030 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22200-74043 |
4SFI..SX80 |
1 | ||
| 22211 - BODY, THROTTLE | ||||
| 22211-74351 |
4SFI..SX80 |
1 | ||
| 22211-74352 |
4SFI..SX80 |
1 | ||
| 22211-74350 |
4SFI..SX80 |
1 | ||
| 22211-74353 |
4SFI..SX80 |
1 | ||
| 22212 - BODY, UPPER(FOR THROTTLE BODY) | ||||
| 22212-74350 |
4SFI..SX80 ｶﾝﾚｲﾁ ｼﾖｳ |
1 | ||
| 22212-74360 |
4SFI..SX80 |
1 | ||
| 22213 - VALVE KIT | ||||
| 22213-74350 |
4SFI..SX80 |
1 | ||
| 22213-74351 |
4SFI..SX80 |
1 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4SFI..SX80 |
2 | ||
| 22216 - SCREW, DASH POT ADJUSTING | ||||
| 22216-74010 |
4SFI..SX80 |
2 | ||
| 22218 - COVER(FOR THROTTLE BODY) | ||||
| 22218-74310 |
4SFI..SX80 |
1 | ||
| 22221 - POSITIONER(FOR THROTTLE BODY) | ||||
| 22221-74310 |
4SFI..SX80 |
1 | ||
| 22221-74313 |
4SFI..SX80 |
1 | ||
| 22221-74312 |
4SFI..SX80 |
1 | ||
| 22223 - GASKET, BODY UPPER(FOR THROTTLE BODY) | ||||
| 22223-74310 |
4SFI..SX80 |
1 | ||
| 22225 - SCREW, IDLE ADJUSTING(FOR THROTTLE BODY) | ||||
| 22225-63020 |
4SFI..SX80 |
1 | ||
| 22238 - GASKET, AUXILIARY AIR VALVE | ||||
| 22224-74310 |
4SFI..SX80 |
1 | ||
| 23250 - INJECTOR ASSY, FUEL | ||||
| 23209-74070 |
4SFI..SX80 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90099-14082 |
4SFI..SX80 NO.1 |
1 | ||
| 90099-14083 |
4SFI..SX80 NO.2 |
1 | ||
| 23250B - RING, O(FOR FUEL INJECTOR) | ||||
| 90099-14082 |
4SFI..SX80 NO.1 |
1 | ||
| 90099-14083 |
4SFI..SX80 NO.2 |
1 | ||
| 23250C - GROMMET(FOR FUEL INJECTOR) | ||||
| 90099-32124 |
4SFI..SX80 |
1 | ||
| 23280 - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-74060 |
4SFI..SX80 |
1 | ||
| 23280E - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-07001 |
4SFI..SX80 |
1 | ||
| Common parts | ||||
| 21821-25180 | ||||
| 22228-74321 | ||||
| 90079-11001 | ||||
| 90079-11006 | ||||
| 90099-00209 | ||||
| 90099-02215 | ||||
| 93315-14010 | ||||
| 93315-35012 | ||||
| 93319-35020 | ||||
| 94110-40800 | ||||
| 94115-40500 | ||||
| 96713-19006 | ||||
| Linked diagrams | ||||
| 8404 | ||||
