SX80Y-CEPRK (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 4SFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9008- )4SFE

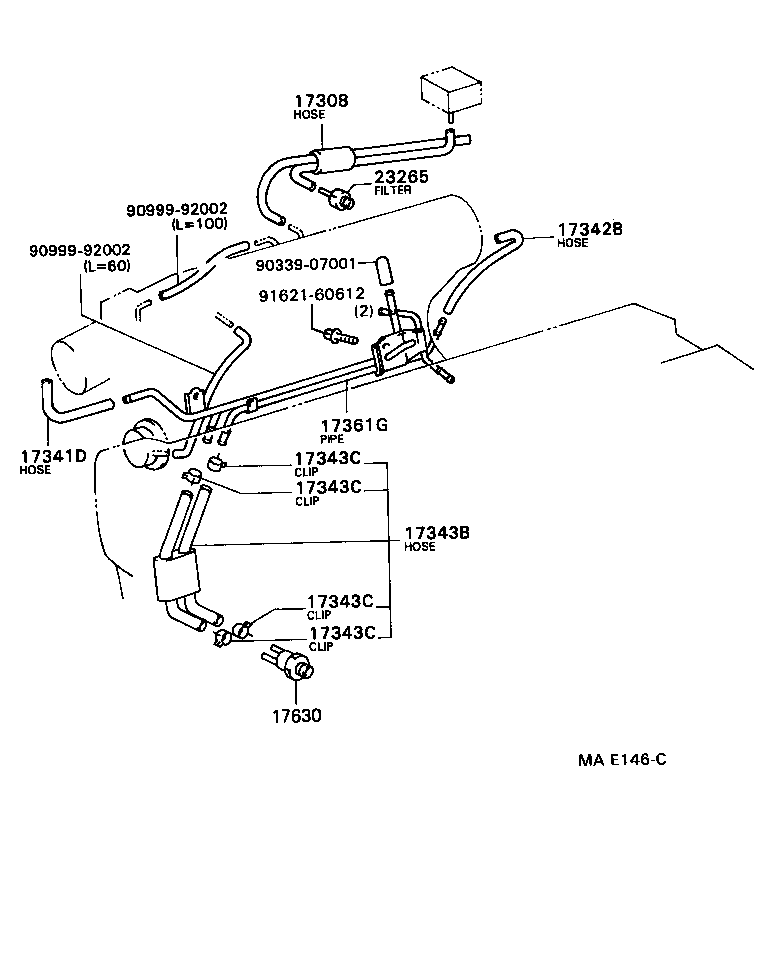

Click highlighted areas on diagram

diagram 17308 17341D 17342B 17343B 17343C 17343C 17343C 17343C 17361G 17630 23265 9033907001 9099992002 9099992002 9162160612
Part # Description Qty Price
17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP)
17308-74180

4SFE..SX80

 1
17341D - HOSE, NO.1(FOR IDLE-UP)
17341-74270

4SFE..SX80

 1
17342B - HOSE, NO.2(FOR IDLE-UP)
17342-74080

4SFE..SX80

 1
17343B - HOSE, NO.3(FOR IDLE-UP)
17343-74080

4SFE..SX80

 1
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

4SFE..SX80

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

4SFE..SX80

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

4SFE..SX80

 4
17343C - CLIP, NO.3(FOR IDLE-UP HOSE)
96132-30400

4SFE..SX80

 4
17361G - TUBE, AIR(FOR IDLE-UP)
17361-74070

4SFE..SX80

 1
17630 - VALVE ASSY, AIR CONTROL
17630-63020

4SF#..SX80

 1
Common parts
90339-07001
90999-92002
91621-60612
