SX80Y-CEMRM (1988)

Toyota Cresta

Production Aug 1988 - Aug 1990
Engine 4SFI
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )MX83,SX80

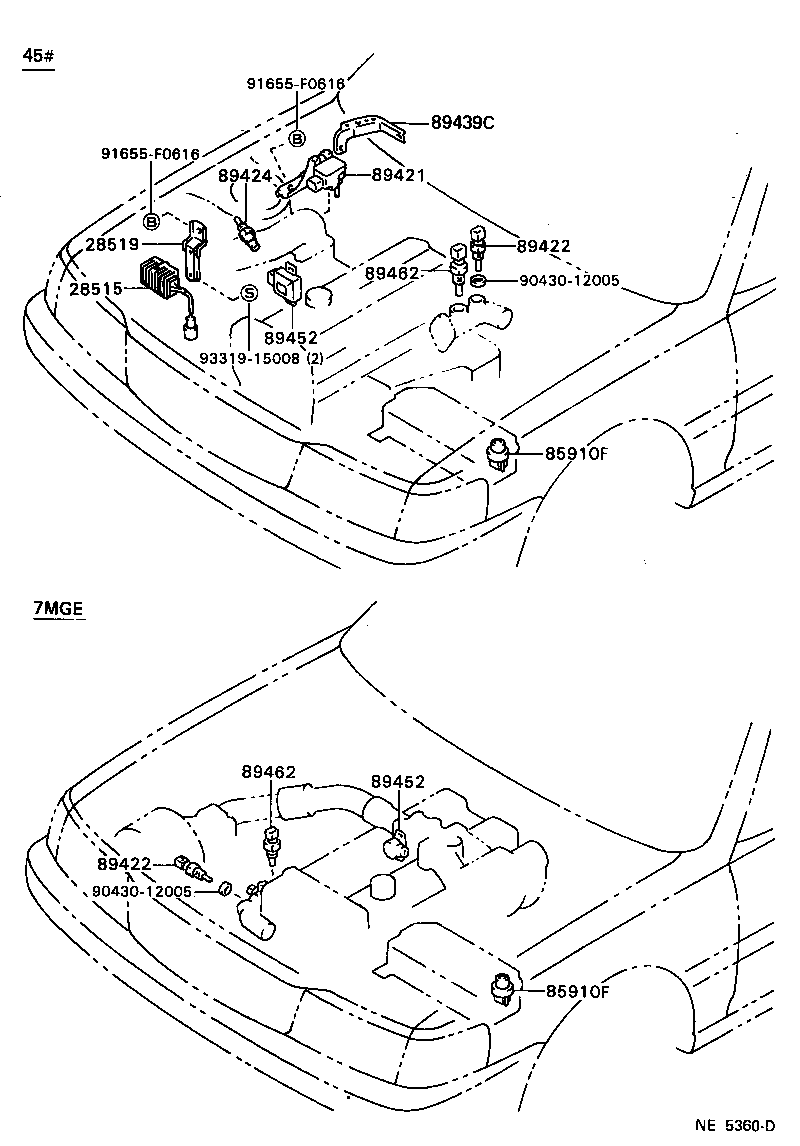

Click highlighted areas on diagram

diagram 28515 28519 85910F 85910F 89421 89422 89422 89424 89439C 89452 89452 89462 89462 9043012005 9043012005 91655F0616 91655F0616 9331915008
Part # Description Qty Price
28515 - RESISTOR, SOLENOID
28515-74050

4SFI..SX80

 1
28519 - BRACKET, SOLENOID RESISTOR
28519-74030

4SFI..SX80

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GX81,JZX81,MX83,SX80

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

GX81,JZX81,MX83,SX80

 1
89421 - SENSOR ASSY, VACUUM (FOR E.F.I.)
89420-22110

SX80

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GX81,JZX81,MX83,SX80

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

GX81,JZX81,MX83,SX80

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-28010

JZX81,SX80..CI,TWT

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

SX80

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-20080

SX80

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

SX80

 1
89462 - SWITCH, START INJECTOR TIME
89462-20040

SX80

 1
Common parts
90430-12005
91655-F0616
93319-15008

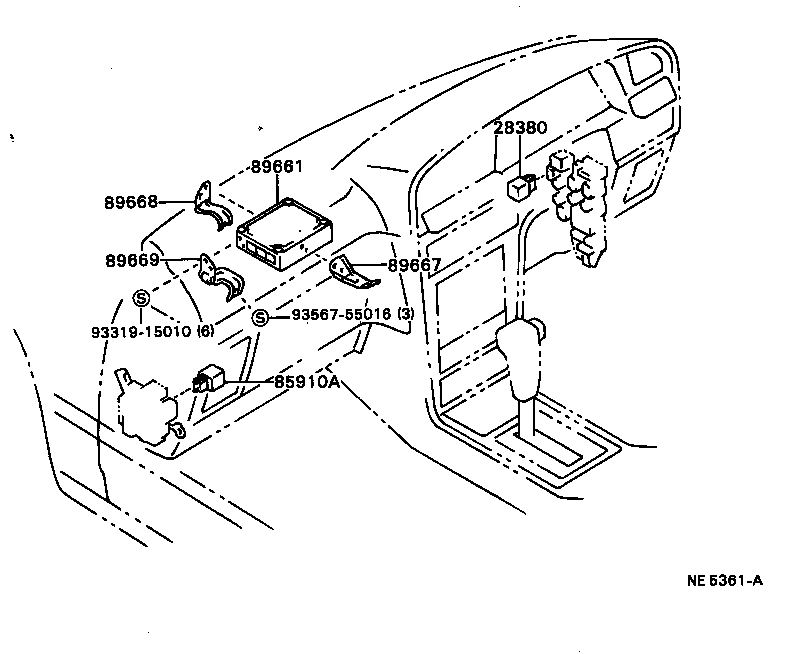

ILLUST NO. 2 OF 2(8808- )GX81,JZX81,MX83,SX80

Click highlighted areas on diagram

diagram 28380 85910A 89661 89667 89668 89669 9331915010 9356755016
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-30050

GX81,JZX81,MX83,SX80

 1
89661 - COMPUTER, ENGINE CONTROL
89661-22241

SX80

 1
89661-22243

SX80

 1
89661-22242

SX80

 1
89661-22240

SX80

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-22100

GX81,JZX81,MX83,SX80

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-22140

GX81,JZX81,MX83,SX80

 1
89669 - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-22170

SX80

 1
Common parts
93319-15010
93567-55016
