SX80Y-CEMRM (1988)
Toyota Cresta
Production
Aug 1988
-
Aug 1990
Engine
4SFI
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8808-9210)SX80

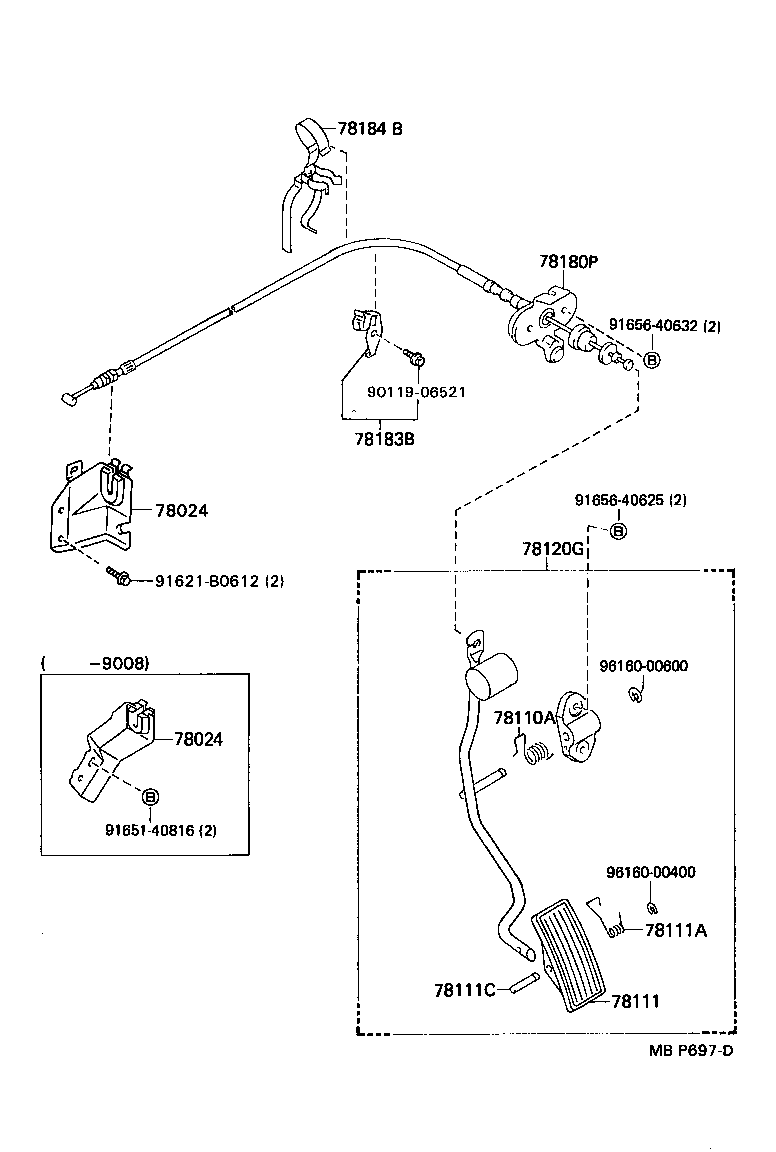

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-22120 |
SX80 |
1 | ||
| 78024 - BRACKET SUB-ASSY, ACCELERATOR CONTROL CABLE | ||||
| 78024-22120 |
SX80 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-26054 |
GX81,LX80,SX80,YX80..5F..(KYO,SCM,SDX,SLT) |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
GX81,LX80,MX83,SX80,YX80 |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-23108 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-22260 |
GX81,LX80,SX80,YX80..5F..(KYO,SCM,SDX,SLT) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-2A050 |
SX80 |
1 | ||
| 78183B - CLAMP, ACCELERATOR CONTROL CABLE | ||||
| 78183-22060 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-22240 |
SX80 |
1 | ||
| Common parts | ||||
| 90119-06521 | ||||
| 91621-B0612 | ||||
| 91651-40816 | ||||
| 91656-40625 | ||||
| 91656-40632 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
