SX80Y-CEMRK (1990)
Toyota Cresta

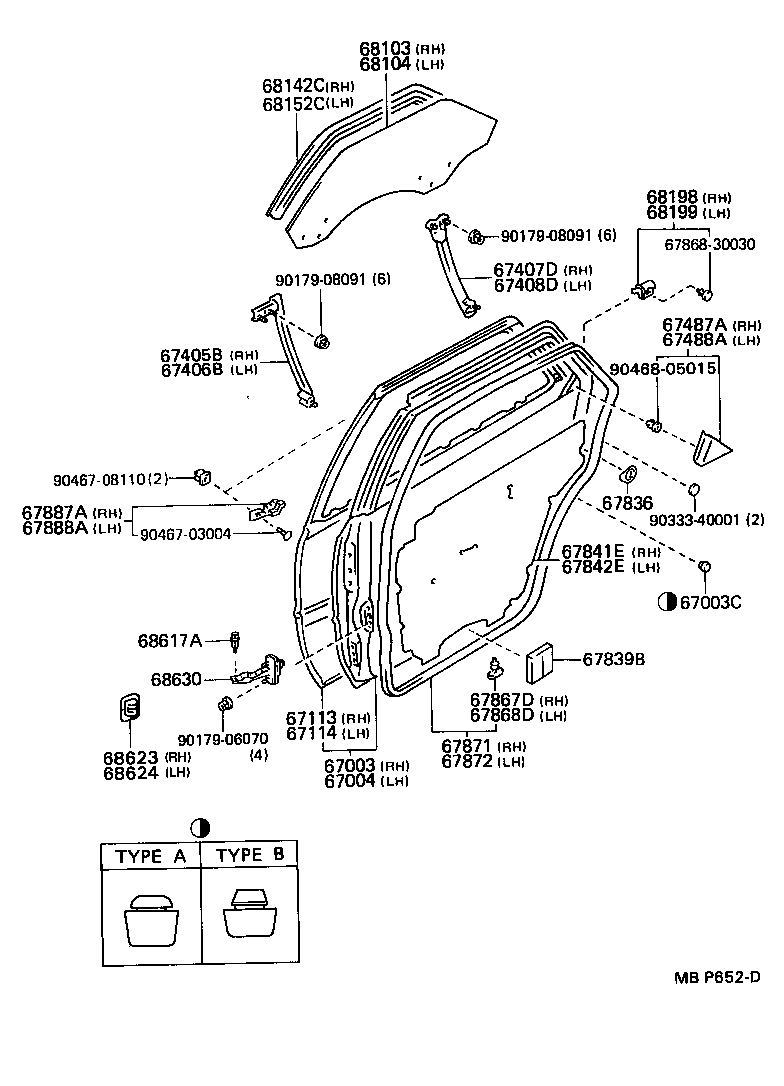

ILLUST NO. 1 OF 2(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67003 - PANEL SUB-ASSY, REAR DOOR, RH | ||||
| 67003-91637 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67003C - CUSHION, REAR DOOR PANEL | ||||
| 90541-09063 |
GX81,JZX81,LX80,MX83,SX80,YX80 ﾀｲﾌﾟ B |
2 | ||
| 90541-09038 |
GX81,LX80,SX80,YX80 |
2 | ||
| 67004 - PANEL SUB-ASSY, REAR DOOR, LH | ||||
| 67004-91637 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67113 - PANEL, REAR DOOR, OUTER RH | ||||
| 67113-91610 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67114 - PANEL, REAR DOOR, OUTER LH | ||||
| 67114-91610 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67405B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT RH | ||||
| 67405-91604 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67406B - GUIDE SUB-ASSY, REAR DOOR WINDOW, FRONT LH | ||||
| 67406-91604 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67407D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH | ||||
| 67407-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67408D - GUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH | ||||
| 67408-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67487A - GARNISH, REAR DOOR REAR GUIDE BRACKET, RH | ||||
| 67487-9160201 |
LX80,SX80,YX80..KYO BLACK,TRIM1# |
1 | ||
| 67487-9160201 |
LX80,SX80,YX80..KYO BLACK,TRIM8# |
1 | ||
| 67488A - GARNISH, REAR DOOR REAR GUIDE BRACKET, LH | ||||
| 67488-9160201 |
LX80,SX80,YX80..KYO BLACK,TRIM1# |
1 | ||
| 67488-9160201 |
LX80,SX80,YX80..KYO BLACK,TRIM8# |
1 | ||
| 67836 - COVER, REAR DOOR LOCK CHILD PROTECTION, RH | ||||
| 67836-32010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 67839B - COVER, REAR DOOR SERVICE HOLE, LOWER | ||||
| 67839-22010 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-91603 |
LX80,SX80,YX80..KYO |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-91602 |
LX80,SX80,YX80..KYO |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67868-30050 |
GX81,LX80,MX83,SX80,YX80 |
17 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-30050 |
GX81,LX80,MX83,SX80,YX80 |
17 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-91611 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-91611 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67887A - WEATHERSTRIP, REAR DOOR, NO.2 RH | ||||
| 67887-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 67888A - WEATHERSTRIP, REAR DOOR, NO.2 LH | ||||
| 67888-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68113-91612 |
GX81,JZX81,LX80,MX83,SX80,YX80 *TT,厚さ=5.0 |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68114-91612 |
GX81,JZX81,LX80,MX83,SX80,YX80 *TT,厚さ=5.0 |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-91608 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68198 - SEAL, REAR DOOR BELT, REAR RH | ||||
| 68198-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68199 - SEAL, REAR DOOR BELT, REAR LH | ||||
| 68199-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68617A - PIN, REAR DOOR CHECK | ||||
| 68617-20011 |
GX81,LX80,SX80,YX80 |
2 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68621-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68624 - COVER, DOOR CHECK, LH | ||||
| 68622-22020 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
1 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68630-22070 |
GX81,JZX81,LX80,MX83,SX80,YX80 |
2 | ||
| 68630-22060 |
GX81,LX80,MX83,SX80,YX80 |
2 | ||
| Common parts | ||||
| 67868-30030 | ||||
| 90179-06070 | ||||
| 90179-08091 | ||||
| 90333-40001 | ||||
| 90467-03004 | ||||
| 90467-08110 | ||||
| 90468-05015 | ||||

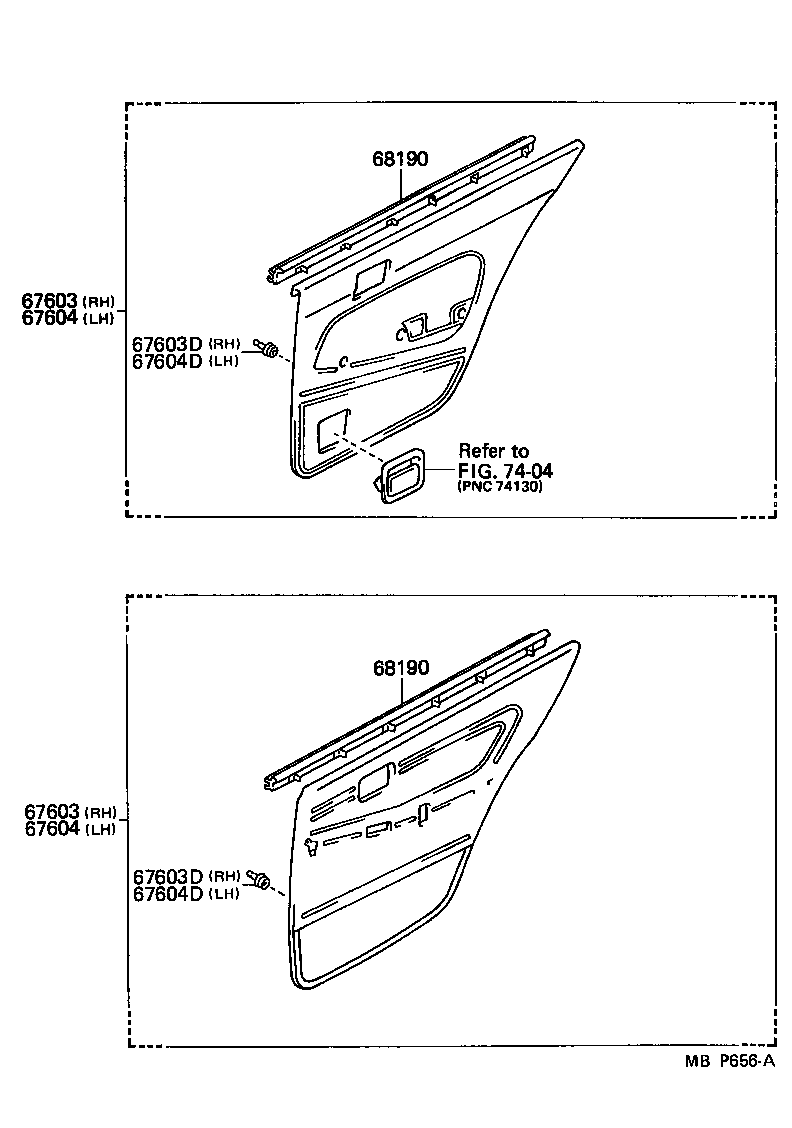

ILLUST NO. 2 OF 2(8808-9210)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-9163204 |
LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
1 | ||
| 67630-9163203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-9163204 |
LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
1 | ||
| 67630-9163203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-9163204 |
LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
1 | ||
| 67640-9163203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-9163204 |
LX80,SX80,YX80..KYO DARK BLUE,TRIM8# |
1 | ||
| 67640-9163203 |
LX80,SX80,YX80..KYO MEDIUM GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-12040 |
GX81,LX80,MX83,SX80,YX80 |
9 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 68190-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68240-91601 |
GX81,JZX81,LX80,MX83,SX80,YX80 左側 |
1 | ||
| 68190-91602 |
GX81,JZX81,LX80,MX83,SX80,YX80 右側 |
1 | ||
| Linked diagrams | ||||
| 7404 | ||||
