SX80-CEMEK (1990)

Toyota Cresta

Production Aug 1990 - Oct 1992
Engine 4SFE
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808-9210)

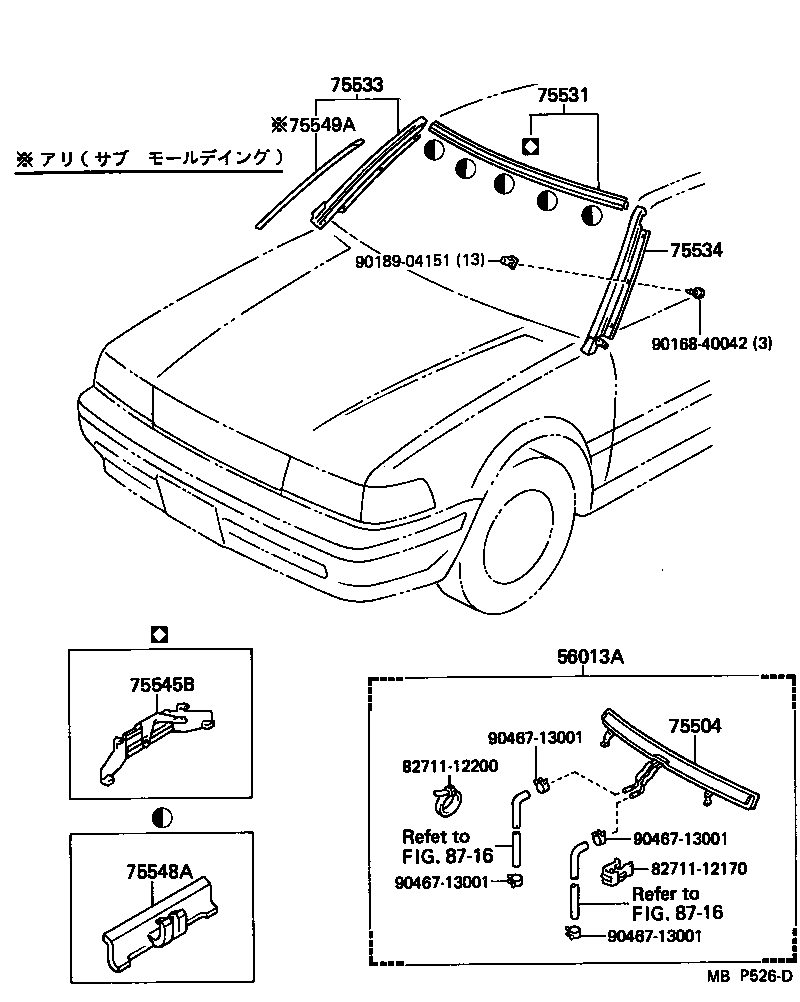

Click highlighted areas on diagram

diagram 56013A 75504 75531 75533 75534 75545B 75548A 75549A 8271112170 8271112200 8716 8716 9016840042 9018904151 9046713001 9046713001 9046713001 9046713001
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75531-91601

GX81,JZX81,LX80,MX83,SX80,YX80

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-91606

GX81,LX80,MX83,SX80,YX80

 1
75533-23010

GX81,JZX81,LX80,MX83,SX80,YX80

ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-91605

GX81,LX80,MX83,SX80,YX80

 1
75545B - CLIP, WINDSHIELD OUTSIDE MOULDING, NO.1
75545-22070

GX81,JZX81,LX80,MX83,SX80,YX80

 7
75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1
75548-22150

GX81,LX80,MX83,SX80,YX80

 8
75548-22150

GX81,JZX81,LX80,MX83,SX80,YX80

 5
75549A - MOULDING, WINDSHIELD OUTSIDE SUB
75549-23010

GX81,JZX81,LX80,MX83,SX80,YX80

ｶﾝﾚｲﾁ ｼﾖｳ OR ｼﾞﾕﾝ ｶﾝﾚｲﾁ ｼﾖｳ

 1
Common parts
82711-12170
82711-12200
90168-40042
90189-04151
90467-13001
Linked diagrams
8716
